Question

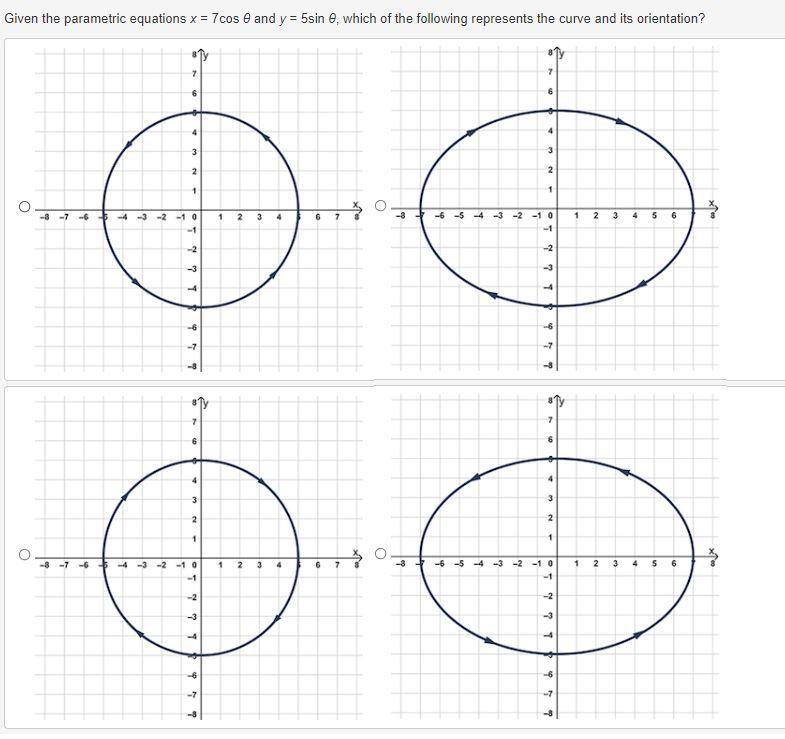

Given the parametric equations x = 7cos θ and y = 5sin θ, which of the following represents the curve and its orientation?

Answer 1

We have the following parameters

$\begin{gathered} x=7cos\theta \\ y=5sin\theta \end{gathered}$

the general equation of a circle with center (0,0) is the following,

$x^2+y^2=r^2$

Let's use the following tigonometric identity,

$sin^2\theta+cos^2\theta=1$

solving for cos and sin in the equations we are given,

$cos\theta=\frac{x}{7},sin\theta=\frac{y}{5}$

replace,

$(\frac{y}{5})^2+(\frac{x}{7})^2=1$

Since we have two different numbers in the denominator, this is not a circle equation but an elipse, of the form,

$\frac{y^2}{a^2}+\frac{x^2}{b^2}=1$

where,

a is the vertex and,

b is the covertex

thus, in the x axis, the vertex is 7 and the y-axis the covertex is 5

Now, let's determine the direction by replacing

when Θ = 0 , then x = 7*cos0 = 7*1 = 7 , and y = 5*sin0 = 5*0 = 0

when Θ = 90° or π/2 , then x = 7*cos90° = 7*0 = 0 , and y = 5sin90° = 5*1 = 5

If we draw this, we can see that the direction is counterclockwise as in the bottom right image.
