Question

Add coefficients to the reaction summary to show the net results of glycolysis. glucose+a ADP+b Pi+c NAD+⟶x pyruvate+y ATP+z NADH You do not need to add the water and hydrogen ions necessary to balance the overall reaction.
Then, Draw the structure of pyruvate at pH 7.4.

Answer 1

Answer:

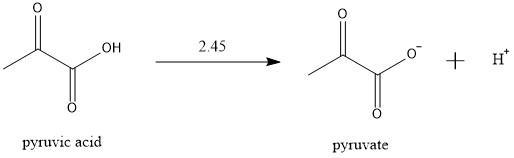

See figure 1

Explanation:

For this question, we can start with the structure of pyruvic acid. In this molecule, we have two functional groups, the ketone group, and a carboxylic acid group.

In the acid group, we have an acidic hydrogen. That is, this hydrogen can leave the molecule to produce a hydronium ion ($H^+$).

Now, to know what is the pH at which this hydrogen leaves the molecule we must look for the pKa value. Which for the case of this molecule is 2.45

If there is a pH value greater than 2.45, the molecule will lose hydrogen. In this case, we will have a value above 2.45 (7.4), which is why the conjugated acid of pyruvic acid will be produced, which is pyruvate.

Therefore, in the structure, we will have a negative charge on the acid group.

See figure 1

I hope it helps!
