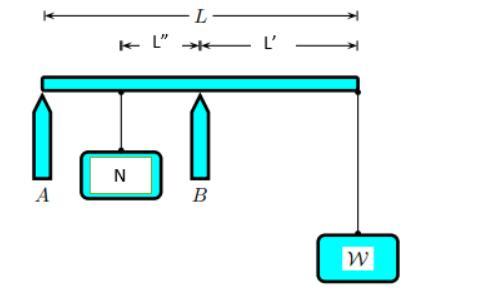

A massless beam supports two weights as shown.

Physics

1 answer:

Vsevolod [243]4 years ago

3 0

<h2>The weight W = 471 N</h2><h2>Explanation:</h2>

Taking moments about B

N x L'' = W x L'

Here the moment is = force x perpendicular distance between the axis of rotation and the point of applied force .

Here L' = L/3 and L'' = 9

Thus from figure

471 x 9 = W x $\frac{L}{3}$

But L'' = $\frac{1}{2}$ ( L - $\frac{L}{3}$ ) = $\frac{L}{3}$ = 9

Thus W = 471 N
