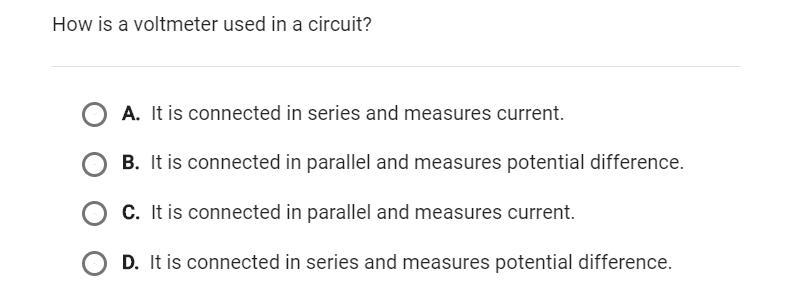

Please help on this one?

Physics

1 answer:

pashok25 [27]3 years ago

7 0

Answer:

B) It is connected in parallel and measures potential differences.

Explanation:

A voltmeter measures electrical potential differences between two points in an electric circuit. It is also connected in parallel to measure a device's voltage, while an ammeter is connected in series to measure a device's current.

Hope this helps! :)
