What potential difference vwc between the wire and the cylinder produces an electric field of 2.00Ã104 volts per meter at a dist
ance of 1.20 centimeters from the axis of the wire? (assume that the wire and cylinder are both very long in comparison to their radii.)?
1 answer:
<span>The potential difference Vwc between the wire and the cylinder produces an electric field of 2.00Ã104 volts per meter at a distance of 1.20 centimeters from the axis of the wire is 1160 V</span>

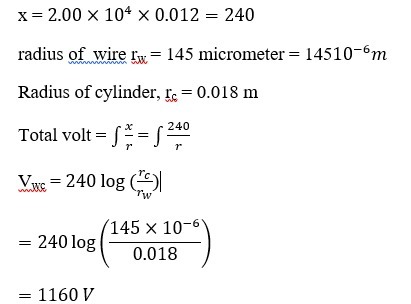

In case of a long wire, electric field E is inversely proportional to r
Therefore E= x/r or x = E*r
Now,
