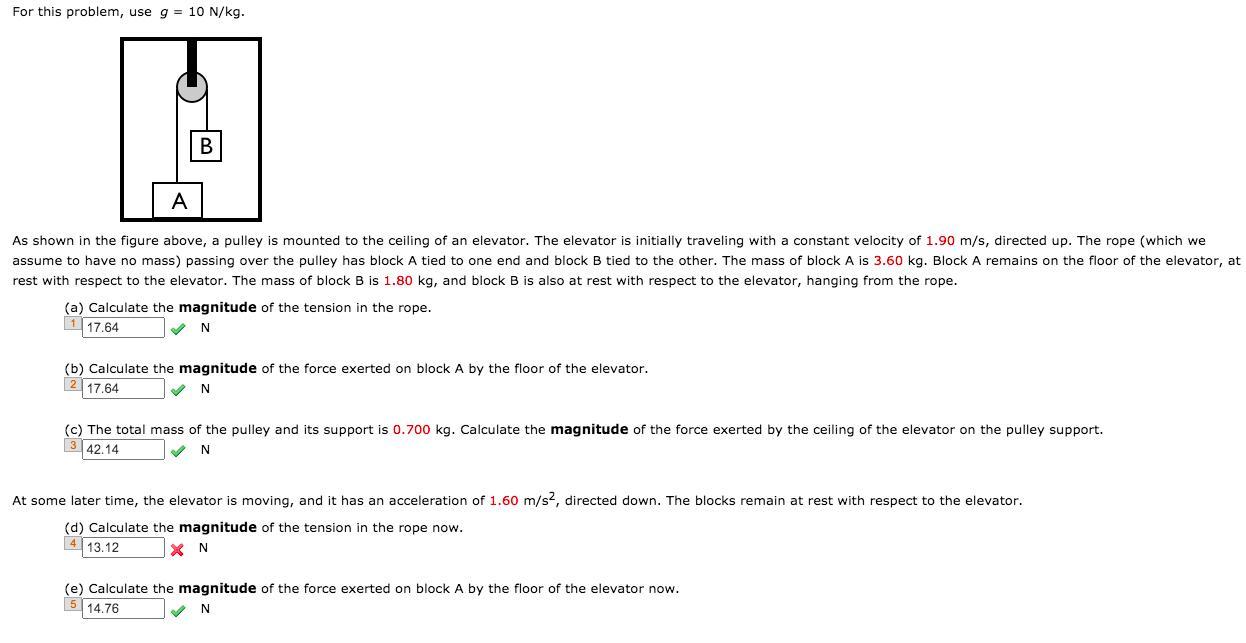

Question

100 POINTS FOR THE CORRECT ANSWER/ EXPLANATION.

Answer 1

Answer:

d) 15.12 N

e) 15.12 N

Explanation:

Draw a free body diagram of the each block.

Block A has three forces on it: weight force mAg pulling down, normal force N pushing up, and tension force T pulling down.

Block B has two forces on it: weight force mBg pulling down, and tension force T pulling up.

Sum of forces on A in the y direction:

∑F = ma

T + N − mAg = mAa

N = mAa + mAg − T

N = mA (a + g) − T

Sum of forces on B in the y direction:

∑F = ma

T − mBg = mBa

T = mBa + mBg

T = mB (a + g)

Plug in values:

T = (1.80 kg) (-1.60 m/s² + 10 m/s²)

T = 15.12 N

N = (3.60 kg) (-1.60 m/s² + 10 m/s²) − 15.12 N

N = 15.12 N

So the answers to (d) and (e) are both 15.12 N.

Answer 2

Answer:

15.2 N

Explanation:
