A hollow circular shaft made of 304 stainless steel uniformly tapers from an outer diameter of 3.0 cm to an outer diameter of 4.
0 cm over a length of 2 meters. The inner diameter of 1.0 cm is constant over the length of the shaft. The shaft is subjected to an applied torque of 500 Nm. Determine the maximum shear stress in the shaft.
1 answer:
Answer:
maximum shear stress = τ(max) = 95.49 × 10⁶N/m²
Explanation:
given
outer diameter at one end(D₁) = 3.0cm
outer diameter at the other end(D₂) = 4.0cm
inner diameter(d₁) = 1.0cm
torque applied(T) = 500Nm
maximum shear stress will occur at lower outer diameter
the formula is τ/r = T/J
τ= T × r/J
where r is radius
T is the torque
J is the polar 2nd M of area

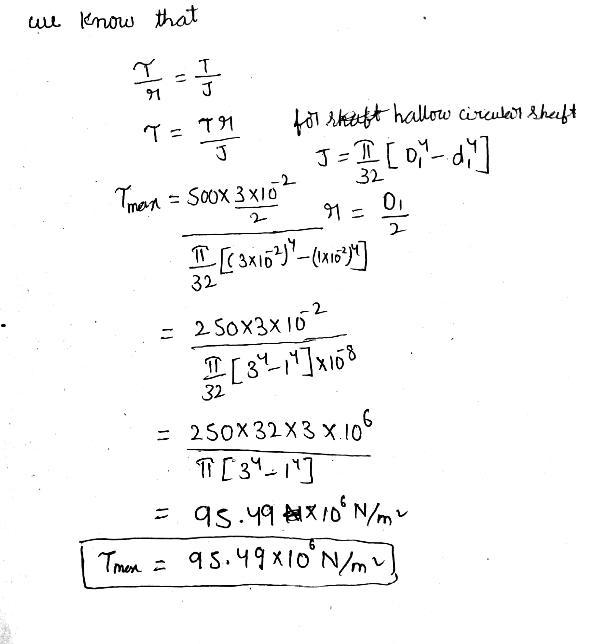

attached is the calculation of the question
