Question

Draw the structures for the following molecules (Show all lone pairs):a) Acrylonitrile, C3H3N, which contains a carbon-carbon double bond and a carbon-nitrogen triple bond.b) Ethyl methyl ether, C3H8O, which contains an oxygen atom bonded to two carbons.c) Cyclohexene, C6H10, which contains a ring of six atoms and one carbon-carbon double bond.d) Determine the hybridization, the shape, the bond angle and the polarity of each of the structures.

Answer 1

Answer:

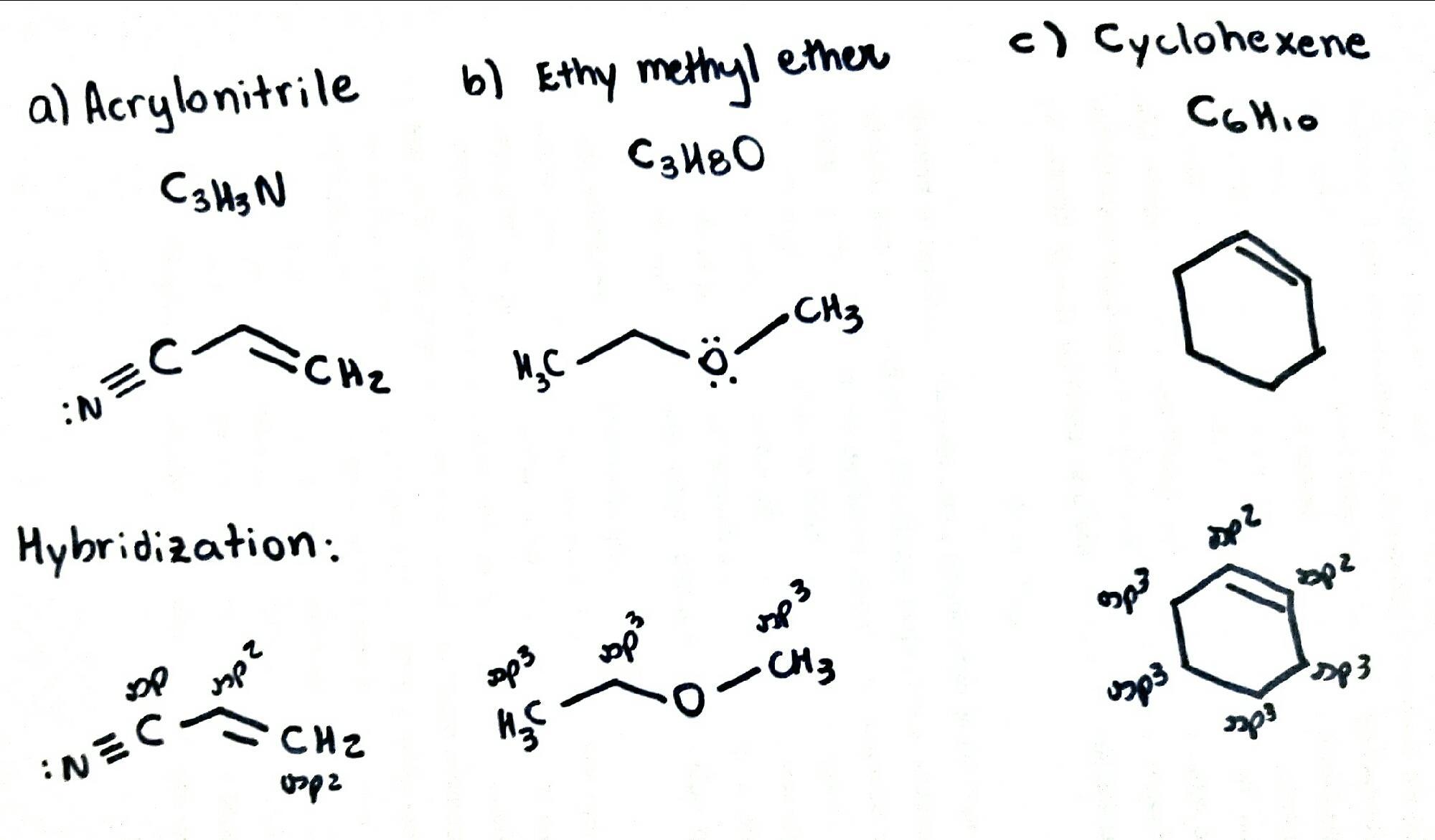

The structures are represented in the figure attached.

Explanation:

Acrylonitrile:

• Hybridization sp, sp², sp²
• Angle: 180° and 120°
• Polarity: Polar

Ethyl methyl ether:

• Hybridization sp³, sp³, sp³
• Angle: 110°
• Polarity: Polar

Cyclohexene:

• Hybridization:  sp², sp², sp³, sp³, sp³, sp³

• Angle: 120°
• Polarity: Apolar
