Question

Draw the structure of 2,4,4,5-tetramethyl-2-hexene.

Answer 1

Answer:

The answer to your question is given below

Explanation:

2,4,4,5-tetramethyl-2-hexene.

To draw the structure of the above compound, we must bear the following in mind:

1. The compound is an alkene i.e it contains carbon to carbon double bond (C=C)

2. The parent name of the compound is hexene i.e it contain 6 carbon atoms.

3. The double is located at carbon 2.

4. The substituent group attached to the compound is methly.

5. There are four methly group attached to the compound of which one is located at carbon 2, two at carbon 4 and one at 5.

With the above information, we can easily draw the structure of the compound.

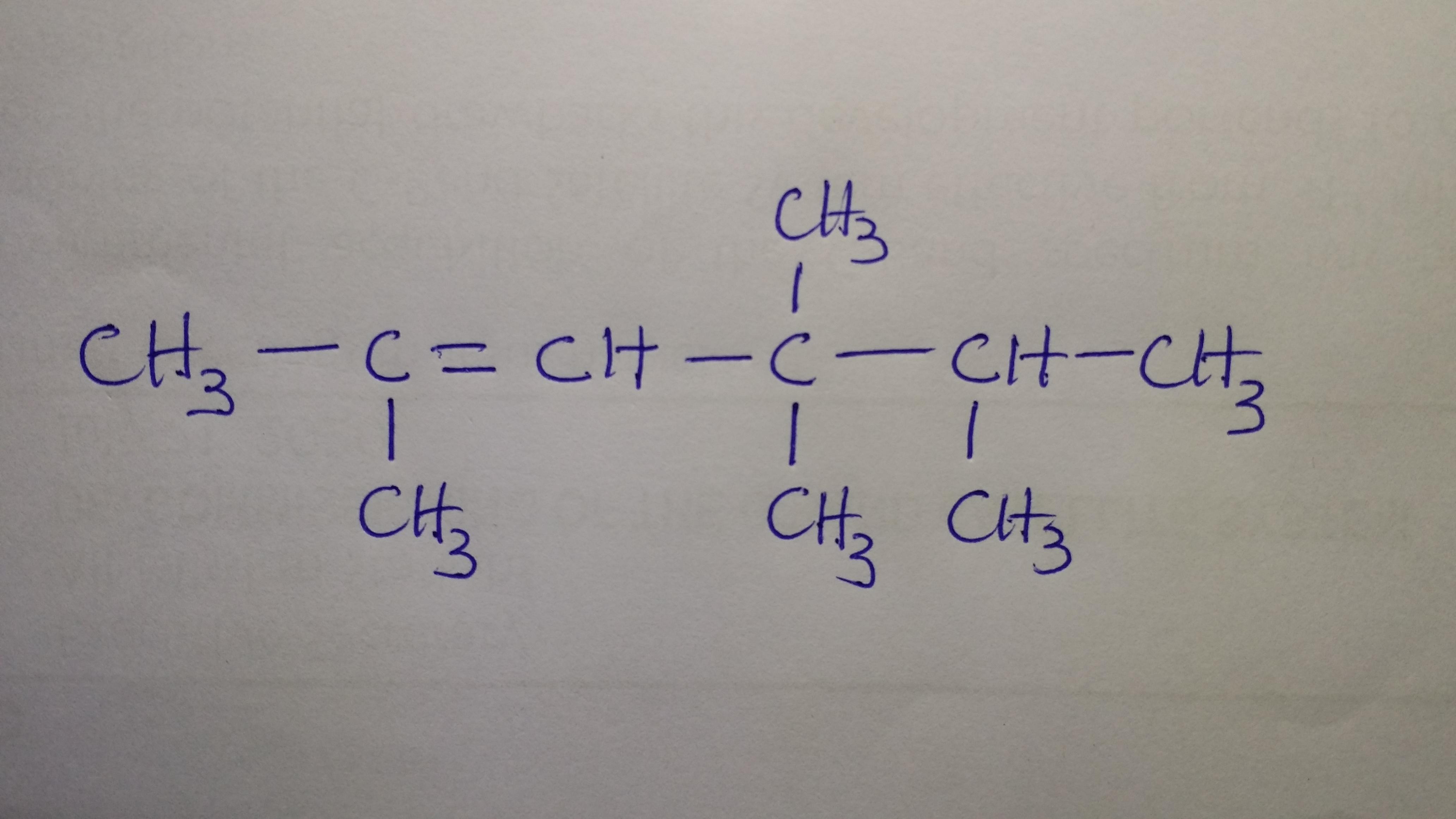

Please see attached photo for the structure of the compound.
