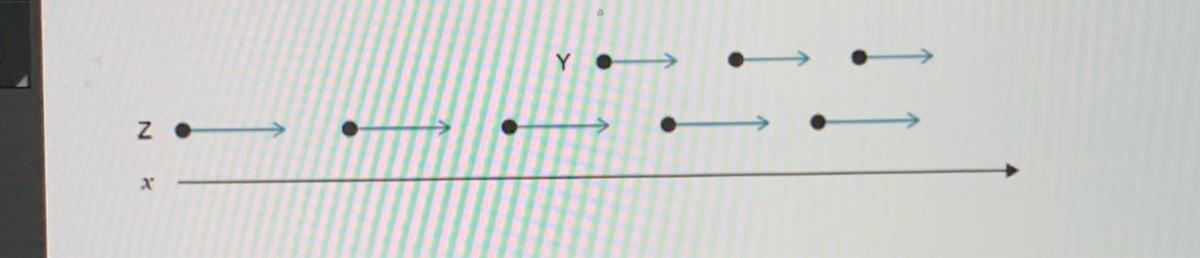

Motion maps for two objects, Y and Z, are shown.

Physics

2 answers:

Yuki888 [10]3 years ago

8 0

D. 5

Explanation:

From the diagram, the motion of object Y catches with object Z after 3 seconds. At 5 seconds, the two objects are at the same motion position creating a higher possibility for object Z to pass object Y after the 5th second.

Learn More

Motion of objects:brainly.com/question/12931198

Keywords : motion, maps, objects, passes, seconds

#LearnwithBrainly

maks197457 [2]3 years ago

5 0

Answer:

Explanation:

i just took the test

You might be interested in

The table below shows a sample wavelength of each type of electromagnetic radiation, along with its frequency and energy.

trasher [3.6K]

Answer:

D lower energy waves is most likely the safest if one is exposed to.

5 0

3 years ago

A packing crate with mass 80.0 kg is at rest on a horizontal, frictionless surface. At t = 0 a net horizontal force in the +x-di

Nataly [62]

Answer:

Final speed of the crate is 15 m/s

Explanation:

As we know that constant force F = 80 N is applied on the object for t = 12 s

Now we can use definition of force to find the speed after t = 12 s

$F . t = m(v_f - v_i)$

so here we know that object is at rest initially so we have

$80 (12) = 80( v_f - 0)$

$v_f = 12 m/s$

Now for next 6 s the force decreases to ZERO linearly

so we can write the force equation as

$F = 80 - \frac{40}{3} t$

now again by same equation we have

$\int F .dt = m(v_f - v_i)$

$\int (80 - (40/3)t) dt = 80(v_f - 12)$

$80 t - \frac{40t^2}{6} = 80(v_f - 12)$

put t = 6 s

$480 - 240 = 80(v_f - 12)$

$v_f = 12 + 3$

$v_f = 15 m/s$

6 0

3 years ago

On the sonometer shown below, a horizontal cord of length 5 m has a mass of 1.45 g. When the cord was plucked the wave produced

Korolek [52]

Answer:

(a) T = 0.015 N

(b) M = 1.53 x 10⁻³ kg = 1.53 g

Explanation:

(a) T = 0.015 N

First, we will find the speed of waves:

$v =f\lambda$

where,

v = speed of wave = ?

f = frequency = 120 Hz

λ = wavelength = 6 cm = 0.06 m

Therefore,

v = (120 Hz)(0.06 m)

v = 7.2 m/s

Now, we will find the linear mass density of the coil:

$\mu = \frac{m}{l}$

where,

μ = linear mass density = ?

m = mass = 1.45 g = 1.45 x 10⁻³ kg

l = length = 5 m

Thereforre,

$\mu = \frac{1.45\ x\ 10^{-3}\ kg}{5\ m}\\\\\mu = 2.9\ x\ 10^{-4}\ kg/m$

Now, for the tension we use the formula:

$v = \sqrt{\frac{T}{\mu}}\\\\7.2\ m/s = \sqrt{\frac{T}{2.9\ x\ 10^{-4}\ kg/m}}\\\\(51.84\ m^2/s^2)(2.9\ x\ 10^{-4}\ kg/m) = T$

T = 0.015 N

(b)

The mass to be hung is:

$T = Mg\\\\M = \frac{T}{g}\\\\M = \frac{0.015\ N}{9.8\ m/s^2}\\\\$

M = 1.53 x 10⁻³ kg = 1.53 g

4 0

3 years ago

A bicycle pump contains 200 cm3 of air and is connected to a bicycle tyre. The volume of the tyre is 800 cm3. The pressure of th

Aleksandr [31]

Answer:

The total volume of the air is 1000 cubic centimeters.

Explanation:

Since the bicycle pump and the bicycle tyre have the same pressure, then the total volume of the air is the sum of the volume of each element, then we translate this into the following artihmetical expression:

$V = 200\,cm^{3}+800\,cm^{3}$

$V = 1000\,cm^{3}$

The total volume of the air is 1000 cubic centimeters.

7 0

3 years ago

A speed truck locks it’s brakes and it skids to a stop. If the truck’s total mass were doubled, it’s skidding distance would be?

Gnom [1K]

Answer:

The skidding distance would be doubled

Explanation:

When the truck applies the brakes and slows down, its motion is a uniformly accelerated motion, so its skidding distance can be found by using the suvat equation

$v^2-u^2=2as$

where

v = 0 is the final velocity (zero since the truck comes to a stop)

u is the initial velocity

a is the acceleration

s is the skidding distance

The acceleration can also be written as

$a=\frac{F}{m}$

where F is the force applied by the brakes and m the mass of the truck. Substituting into the previous equation,

$-u^2 = 2\frac{F}{m}s\\s = -\frac{mu^2}{2F}$

We see that the skidding distance is proportional to the mass: therefore, if the mass of the truck is doubled, the skidding distance will double as well.

5 0
