Torque is a twisting force. If the required torque applied on a 3 ft wrench is 45 ft·lb, what is the force that must be applied?
1 answer:
You might be interested in
Answer:
(a) attached below
(b)
(c)
(d) Ω
(e) and
Explanation:
Given data:
(a) Draw the power triangle for each load and for the combined load.
°
°
≅
≅
The negative sign means that the load 2 is providing reactive power rather than consuming
Then the combined load will be
(b) Determine the power factor of the combined load and state whether lagging or leading.
or in the polar form
°
The relationship between Apparent power S and Current I is
Since there is conjugate of current I therefore, the angle will become negative and hence power factor will be lagging.
(c) Determine the magnitude of the line current from the source.
Current of the combined load can be found by
(d) Δ-connected capacitors are now installed in parallel with the combined load. What value of capacitive reactance is needed in each leg of the A to make the source power factor unity?Give your answer in Ω
Ω
(e) Compute the magnitude of the current in each capacitor and the line current from the source.
Current flowing in the capacitor is
Line current flowing from the source is
Answer:
Attached below are the sketches
answer :
c) G(s) = 100 / ( s + 100 )
d) y'(t) + 100Y(s) = 100 X(s)
e) g(t) = e^-100t u(t)
Explanation:
a) Sketch the bode plot
The filter here is a low pass filter
b) Sketch the s-plane
attached below. pole ( s ) is at 100
c) write the transfer function of the filter
Transfer function ; G(s) = 100 / ( s + 100 )
d) write the differential equation
Y(s) / X(s) = 100 / s + 100
Y(s) [ s + 100 ] = 100 X(s)
= sY(s) + 100Y = 100 X(s)
∴ differential equation = y'(t) + 100Y(s) = 100 X(s)
e) write out the unforced transient response
g(t) = e^-100t u(t)
f) write out the frequency response
attached below
Answer:
mass flow=6.84kg/s
efficiency=73.5%
Explanation:
Hi!

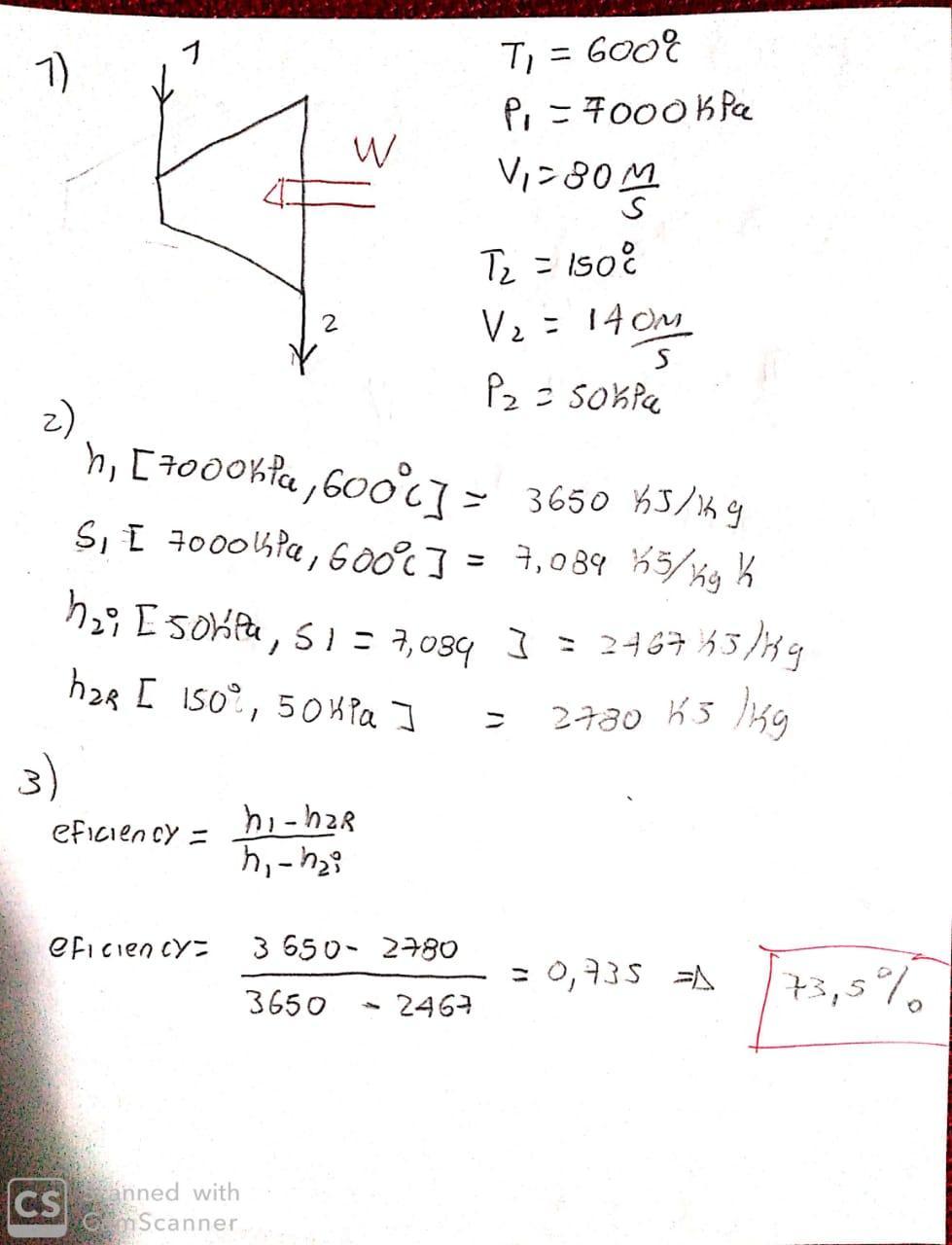

To solve this problem follow the steps below, the procedure is attached in an image
1. Draw the complete outline of the problem.
2.Through laboratory tests, thermodynamic tables were developed, these allow to know all the thermodynamic properties of a substance (entropy, enthalpy, pressure, specific volume, internal energy etc ..)
through prior knowledge of two other properties such as pressure and temperature.
use thermodynamic tables to determine the following thermodynamic properties:
a. enthalpy at the turbine inlet
b. entropy at the turbine entrance
c. ideal enthalpy at the turbine outlet
d. real enthalpy at the turbine outlet
3. use the turbine efficiency equation and use the enthalpies found in step 2
4.
uses the first law of thermodynamics that states that the energy that enters a system is the same that must come out, in this way we find the mass flow
