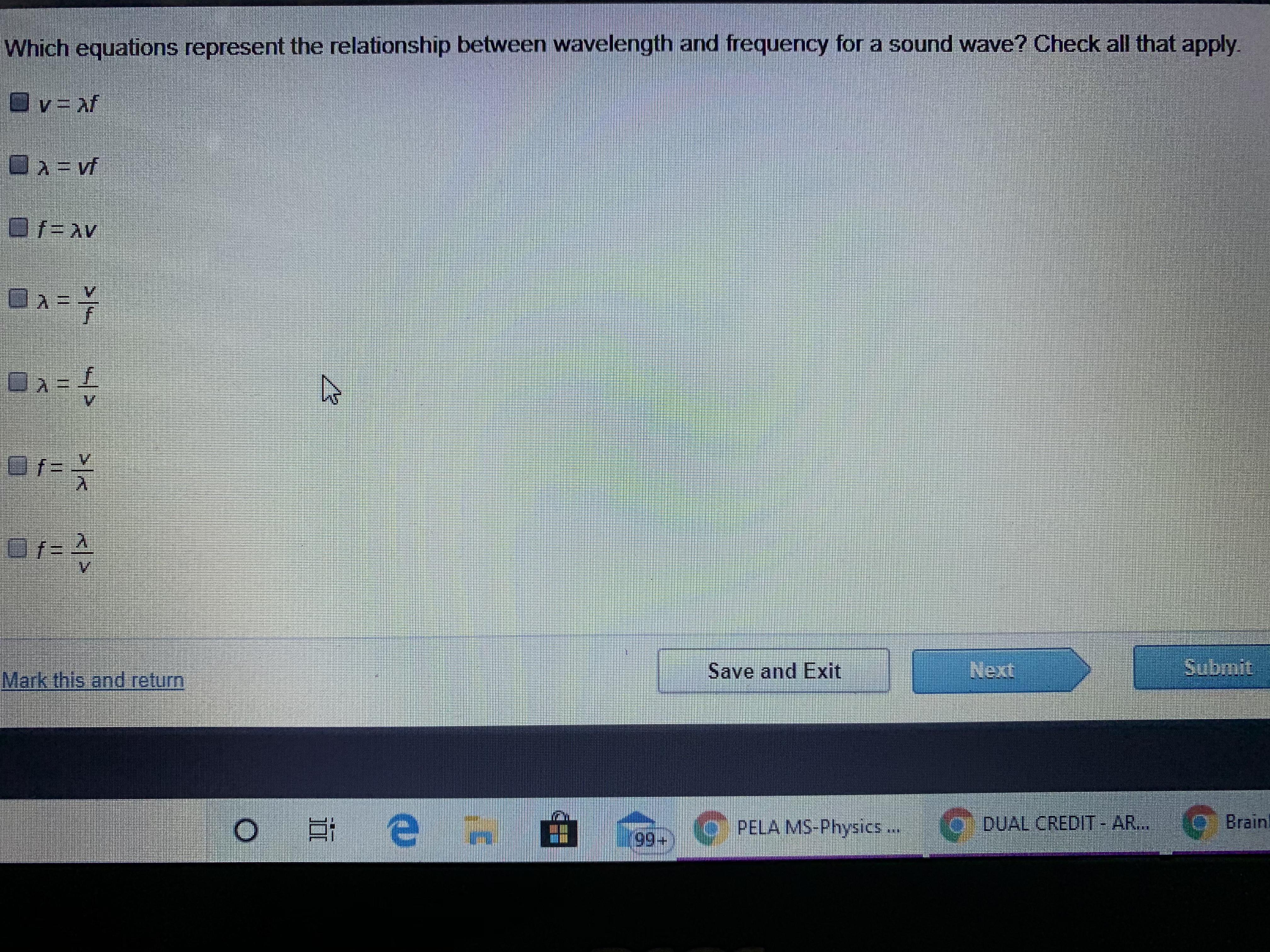

What equations show the relationship between wavelength and frequency for a sound wave??? PLEASE HELP!!!!!

Physics

2 answers:

tangare [24]4 years ago

8 0

Answer The relationship of the speed of sound, its frequency, and wavelength is the same as for all waves: vw = fλ, where vw is the speed of sound, f is its frequency, and λ is its wavelength.

BigorU [14]4 years ago

3 0

Answer:

v = λ f

λ = v / f

f = v / λ

Explanation:

You might be interested in

A 54 kg person stands on a uniform 20 kg, 4.1 m long ladder resting against a frictionless wall.

SVETLANKA909090 [29]

A) Force of the wall on the ladder: 186.3 N

B) Normal force of the ground on the ladder: 725.2 N

C) Minimum value of the coefficient of friction: 0.257

D) Minimum absolute value of the coefficient of friction: 0.332

Explanation:

The free-body diagram of the problem is in attachment (please rotate the picture 90 degrees clockwise). We have the following forces:

$W=mg$ : weight of the ladder, with m = 20 kg (mass) and $g=9.8 m/s^2$ (acceleration of gravity)

$W_M=Mg$ : weight of the person, with M = 54 kg (mass)

$N_1$ : normal reaction exerted by the wall on the ladder

$N_2$ : normal reaction exerted by the floor on the ladder

$F_f = \mu N_2$ : force of friction between the floor and the ladder, with $\mu$ (coefficient of friction)

Also we have:

L = 4.1 m (length of the ladder)

d = 3.0 m (distance of the man from point A)

Taking the equilibrium of moments about point A:

$W\frac{L}{2}sin 21^{\circ}+W_M dsin 21^{\circ} = N_1 Lsin 69^{\circ}$

where

$Wsin 21^{\circ}$ is the component of the weight of the ladder perpendicular to the ladder

$W_M sin 21^{\circ}$ is the component of the weight of the man perpendicular to the ladder

$N_1 sin 69^{\circ}$ is the component of the normal force perpendicular to the ladder

And solving for $N_1$ , we find the force exerted by the wall on the ladder:

$N_1 = \frac{W}{2}\frac{sin 21^{\circ}}{sin 69^{\circ}}+W_M \frac{d}{L}\frac{sin 21^{\circ}}{sin 69^{\circ}}=\frac{mg}{2}\frac{sin 21^{\circ}}{sin 69^{\circ}}+Mg\frac{d}{L}\frac{sin 21^{\circ}}{sin 69^{\circ}}=\frac{(20)(9.8)}{2}\frac{sin 21^{\circ}}{sin 69^{\circ}}+(54)(9.8)\frac{3.0}{4.1}\frac{sin 21^{\circ}}{sin 69^{\circ}}=186.3 N$

Here we want to find the magnitude of the normal force of the ground on the ladder, therefore the magnitude of $N_2$ .

We can do it by writing the equation of equilibrium of the forces along the vertical direction: in fact, since the ladder is in equilibrium the sum of all the forces acting in the vertical direction must be zero.

Therefore, we have:

$\sum F_y = 0\\N_2 - W - W_M =0$

And substituting and solving for N2, we find:

$N_2 = W+W_M = mg+Mg=(20)(9.8)+(54)(9.8)=725.2 N$

Here we have to find the minimum value of the coefficient of friction so that the ladder does not slip.

The ladder does not slip if there is equilibrium in the horizontal direction also: that means, if the sum of the forces acting in the horizontal direction is zero.

Therefore, we can write:

$\sum F_x = 0\\F_f - N_1 = 0$

And re-writing the equation,

$\mu N_2 -N_1 = 0\\\mu = \frac{N_1}{N_2}=\frac{186.3}{725.2}=0.257$

So, the minimum value of the coefficient of friction is 0.257.

Here we want to find the minimum coefficient of friction so the ladder does not slip for any location of the person on the ladder.

From part C), we saw that the coefficient of friction can be written as

$\mu = \frac{N_1}{N_2}$

This ratio is maximum when N1 is maximum. From part A), we see that the expression for N1 was

$N_1 = \frac{W}{2}\frac{sin 21^{\circ}}{sin 69^{\circ}}+W_M \frac{d}{L}\frac{sin 21^{\circ}}{sin 69^{\circ}}$

We see that this quantity is maximum when d is maximum, so when

d = L

Which corresponds to the case in which the man stands at point B, causing the maximum torque about point A. In this case, the value of N1 is:

$N_1 = \frac{W}{2}\frac{sin 21^{\circ}}{sin 69^{\circ}}+W_M \frac{L}{L}\frac{sin 21^{\circ}}{sin 69^{\circ}}=\frac{sin 21^{\circ}}{sin 69^{\circ}}(\frac{W}{2}+W_M)$

And substituting, we get

$N_1=\frac{sin 21^{\circ}}{sin 69^{\circ}}(\frac{(20)(9.8)}{2}+(54)(9.8))=240.8 N$

And therefore, the minimum coefficient of friction in order for the ladder not to slip is

$\mu=\frac{N_1}{N_2}=\frac{240.8}{725.2}=0.332$

Learn more about torques and equilibrium:

brainly.com/question/5352966

#LearnwithBrainly

7 0

3 years ago

What physical quantity is a measure of the amount of inertia an object has?

satela [25.4K]

Mass is the physical quantity

3 0

4 years ago

Adog has a mass of 12 kg. What is its weight? Round your answer to the nearest whole number

love history [14]

Answer:

26.5

Explanation:

3 0

3 years ago

Applied force is the force of support exerted by an object that holds up another object.

kenny6666 [7]

False, applied force is when a person or an object pushes on another object

6 0

4 years ago

Read 2 more answers

A double-slit experiment yields an interference pattern due to the path length difference from light traveling through one slit

Lapatulllka [165]

Answer:

Therefore the correct statement is B.

Explanation:

In the interference and diffraction phenomena, the natural wave of electromagnetic radiation must be taken into account, the wave front that advances towards the slit can be considered as when it reaches it behaves like a series of wave emitters, each slightly out of phase from the previous one, following the Huygens principle that states that each point is compiled as a source of secondary waves.

The sum of all these waves results in the diffraction curve of the slit that has the shape

I = Io sin² θ /θ²

Where the angle is a function of the wavelength and the width of the slit.

From the above, the interference phenomenon can be treated as the sum of two diffraction phenomena displaced a distance equal to the separation of the slits (d)

Therefore the correct statement is B

6 0
