Draw a circuit that contains a 5-ΩΩ resistance, a 10-VV independent voltage source, and a 2-AA independent current source. Conne
ct all three elements in series.
1 answer:
Answer
given,
Resistance of the circuit R = 5 Ω
Voltage in the circuit , V = 10 V
current in the Circuit, I = 2 A
All these elements are connected in series.
A series connection in an electric circuit is that the current pass through resistance is same but the potential drops in between them.

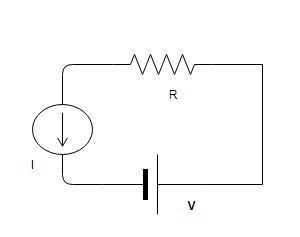

The circuit diagram is attached in the attachment below which shows the elements connection in series.
