Question

A uniform rod is attached to a wall by a hinge at its base. The rod has a mass of 6.5 kg, a length of 1.3 m, is at an angle of 17° above the horizontal, and is held in place by a horizontal cord attached to the other end of the rod and bolted to the wall above the base of the rod.
(A) Find the tension in the wire.
(B) Find the horizontal component of the force exerted on the rod by the hinge.
(C) Find the vertical component of the force exerted on the rod by the hinge.

Answer 1

Answer:

tension wire 104 N, horizontal force hinge 104 N, vertical force hinge 63.7 N

Explanation:

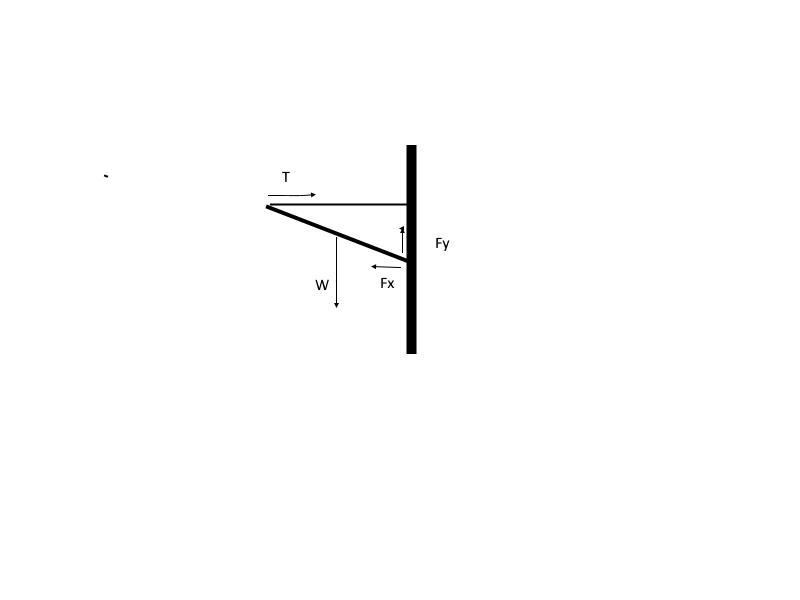

The system described is in static equilibrium under the action of several forces, which are shown in the attached diagram, where T is the tension of the wire, W is the weight of the bar, Fx is the horizontal reaction of the wall and Fy It is the vertical reaction of the wall.

The directions of the forces are indicated by the arrows and are marked intuitively, but when solving the problem if one gives a negative value this indicates that the direction is wrong, but does not alter the results of the problem

For the resolution we use Newton's second law, both in translational and rotational equilibrium, if necessary.

We must establish a reference system to assign the positive meaning, we place it with the origin in the hinge, and the positive directions to the right and up. The location of the coordinate system allows us to eliminate the reaction of the hinge by having zero distance to origin. We write the equilibrium equations for each axis

     ∑ Fx = 0

     Fx -T =0

     ∑ Fy =0

     Fy -W =O      W = m g

     ∑τ =0

      -T dy + W dx =0

For rotational equilibrium we take the positive direction as counterclockwise rotation and distance is the perpendicular distance of the force to the axis of the coordinate system



       dy = L sin 17

      dx = (L/2) cos 17

Where L is the length of the bar and the weight is applied at the center of it, we write and simplify the equation

    -T L sin 17 + mg (L / 2) cos 17 = 0

   - T sin 17 + mg/2  Cos 17 =0

We write the three equations together

     Fx- T = 0

     Fy -W = 0

     -T sin 17 + (m g / 2) cos 17 = 0

a) With the third equation we can find the wire tension

     T = m g / 2 cos 17 / sin17

     T = 6.5  9.8/2 cotan 17

     T = 104 N

b) We use the first equation to find Fx

       Fx- T =0

       Fx = T = 104 N

c) We use the second equation to find Fy



       Fy = W = m g

       Fy = 6.5 9.8

       Fy = 63.7 N
