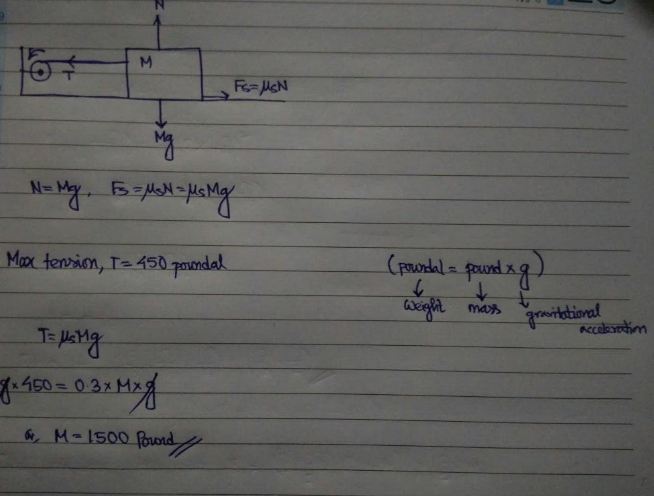

The coefficient of sliding friction on concrete is .30 what weight of steel can be pulled across a concrete floor by a winch wit
h a 450 ib capacity
1 answer:
You might be interested in
(a) Draw the circuit diagram for the three resistors in series that you assembled in Part 2. Label the voltage and the resistances of each resistor
The diagram will look like the following:
As all the resistors are equal, their voltage drop will also be equal, which will be a third of the input voltage
(b) For the three resistors in series, how did the measured total voltage, current across each resistor, total current, and voltage drop across each resistor compare to the values that you calculated?
The value of the measured voltage on each resistor can be seen as to be exactly as calculated, which is 1/3 of the voltage input. The total current can be calculated as:
Which is the one seen on the amperimeter
(c) How did the equivalent resistance, voltage drop across each resistor, total current, and total voltage change as you added resistors in series to the circuit?
The voltage drop on each resistor will decrease once you add more resistors, as there will be more total resistance, and thus less current. As the resistance of each resistor is constant, the relation V=RI given by Ohm's law will be reduced.
