marishachu [46]
3 years ago
13

A car of length 15 ft. approaches a signalized intersection at 45 mph when the light changes to yellow. The vehicle is 300 ft. f

rom the intersection, and the width of the intersection is 48 ft. At this distance and initial speed, determine the following.a.What is the minimal yellow time required for the vehicle to clear the intersection?b.Assuming a perception-reaction time of 1.5 seconds and a vehicle deceleration rate of 10 ft/sec2, determine if the vehicle can safely stop before entering the intersection.c.Assuming the light is yellow for 4 seconds, determine the safe action for the vehicle if one exists. Does a"dilemma" exist for this driver? i.Attempt to clear ii.Attempt to stop

Engineering
1 answer:
Oksana_A [137]3 years ago
3 0

Answer:

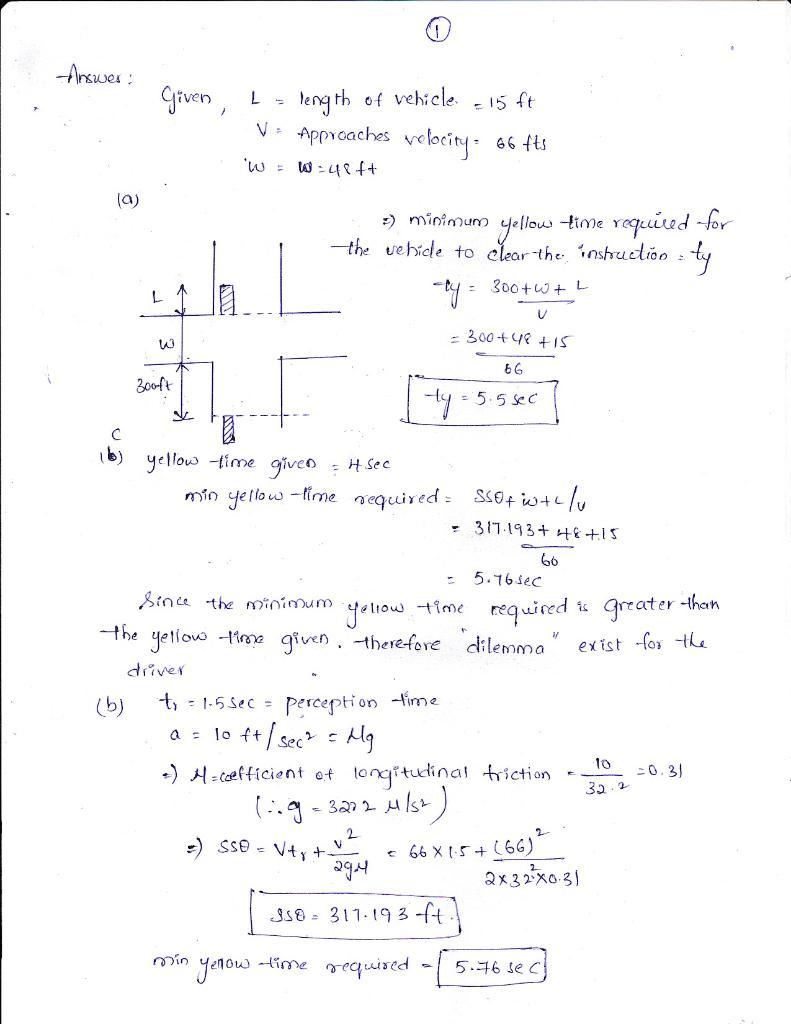

See attachment below

Explanation:

You might be interested in
Machine movement can be divided into what two main categories?
pishuonlain [190]

Answer:

motion and power

Explanation:

8 0
4 years ago
Read 2 more answers
Water vapor at 10 MPa, 600°C enters a turbine operating at steady state with a volumetric flow rate of 0.36 m3/s and exits at 0.
elena-s [515]

Answer:

Hook's law holds good up to. A elastic limit. B. plastic limit. C.yield point. D.Breaking point

8 0
3 years ago
What is the activation energy (Q) for a vacancy formation if 10 moles of a metal have 2.3 X 10^13 vacancies at 425°C?
Yakvenalex [24]

Answer:

Activation\ Energy=2.5\times 10^{-19}\ J

Explanation:

Using the expression shown below as:

N_v=N\times e^{-\frac {Q_v}{k\times T}

Where,

N_v is the number of vacancies

N is the number of defective sites

k is Boltzmann's constant = 1.38\times 10^{-23}\ J/K

{Q_v} is the activation energy

T is the temperature

Given that:

N_v=2.3\times 10^{13}

N = 10 moles

1 mole = 6.023\times 10^{23}

So,

N = 10\times 6.023\times 10^{23}=6.023\times 10^{24}

Temperature = 425°C

The conversion of T( °C) to T(K) is shown below:

T(K) = T( °C) + 273.15

So,

T = (425 + 273.15) K = 698.15 K

T = 698.15 K

Applying the values as:

2.3\times 10^{13}=6.023\times 10^{24}\times e^{-\frac {Q_v}{1.38\times 10^{-23}\times 698.15}

ln[\frac {2.3}{6.023}\times 10^{-11}]=-\frac {Q_v}{1.38\times 10^{-23}\times 698.15}

Q_v=2.5\times 10^{-19}\ J

4 0
3 years ago
A 3-ft-diameter vertical cylindrical tank open to the atmosphere contains 1-ft-high water. The tank is now rotated about the cen
arlik [135]

Answer:

The angular velocity is 7.56 rad/s

the maximum water height is 2 ft

Explanation:

The z-position as a function of r is equal to

z_{s(r)} =h_{0} -\frac{w^{2}(R^{2}-2r^{2}   }{4g} (eq. 1)

where

h0 = initial height = 1 ft

w = angular velocity

R = radius of the cylinder = 1.5 ft

zs(r) = 0 when the free surface is lowest at the centre

Replacing and clearing w

w=\sqrt{\frac{4gh_{0} }{R^{2} } } =\sqrt{\frac{4*32.17*1}{1.5^{2} } } =7.56rad/s

if you consider the equation 1 for the free surface at the edge is equal to

z_{s(R)} =h_{0} +\frac{w^{2}R^{2}   }{4g} =1+\frac{(7.56^{2})*(1.5^{2} ) }{4*32.17} =1.99ft=2ft

7 0
3 years ago
Should aircraft wings have infinite stiffness?
Colt1911 [192]

Answer:

No, they need to be somewhat flexible so that forces such as turbulance don't shear the wing off.

3 0
3 years ago
Read 2 more answers
