3 years ago

9

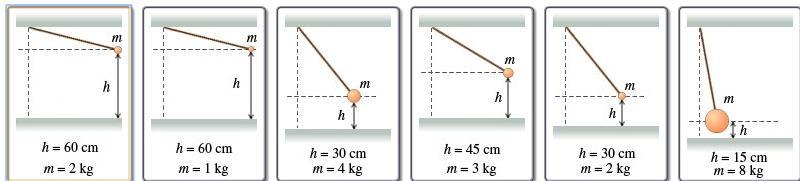

Rank each pendulum on the basis of the initial gravitational potential energy (before being released) of the pendulum-Earth syst

em.

1 answer:

Pavlova-9 [17]3 years ago

8 0

Answer:

Starting from left side:

<u>Figure 4 is the largest </u>

<u>Figure 1,3 and 6 are at second</u>

<u>Figure 2 and 5 are the smallest </u>

Explanation:

<h3><u>Please refer to the attachments for explanations.</u></h3>

You might be interested in

D section a only still need help on this

SIZIF [17.4K]

Acceleration means speeding up, slowing down, or changing direction. The graph doesn't show anything about direction, so we just have to examine it for speeding up or slowing down ... any change of speed.

The y-axis of this graph IS speed. So the height of a point on the line is speed. If the line is going up or down, then speed is changing.

Sections a, c, and d are all going up or down. Section b is the only one where speed is not changing. So we can't be sure about b, because we don't know if the track may be curving ... the graph can't tell us that. But a, c, and d are DEFINITELY showing acceleration.

5 0

4 years ago

What experimental evidence led scientists to change from the previous model to this one?

san4es73 [151]

The colors of light emitted from heated atoms had very specific energies.

6 0

3 years ago

An electron drops from the n=6 to the n=4 level of an infinite square well that is 3.10-11 m wide. What is the wavelength of the

almond37 [142]

The answer would be C !

4 0

3 years ago

Determine the magnitude and direction of the force on a 200 m power line carrying a current of 5.0-A due west in a magnetic fiel

bogdanovich [222]

Answer:

Explanation:

l = 200 m

i = 5 A west

B = 6 micro Tesla direction 30 degree north of east

angle between length vector and the magnetic field vector = 180 - 30 = 150 degree

Write the length and the magnetic field in the vector form

$\overrightarrow{l}=- 200 \widehat{i}metre$

$\overrightarrow{B}= 6\times 10^{-6}\left ( Cos30\widehat{i}+Sin30\widehat{j} \right )Tesla$

$\overrightarrow{B}=\left ( 5.2\widehat{i}+3\widehat{j} \right )\times 10^{-6}Tesla$

$\overrightarrow{F} = i \overrightarrow{l}\times \overrightarrow{B}$

$\overrightarrow{F} = 5\times \left ( -200\widehat{i} \right )\times \left ( 5.2\widehat{i}+3\widehat{j} \right )\times 10^{-6}$

$\overrightarrow{F} =- 3\times 10^{-3}\widehat{k}Newton$

Thus, the magnitude of force is 3 x 10^-3 newton and it is directed towards negative z axis direction.

7 0

3 years ago

If you hold a bar magnet in each hand and bring your hands together, will the force be attractive or repulsive if the magnets ar

Law Incorporation [45]

a) The force is repulsive

b) The force is attractive

Explanation:

Every magnet has a magnetic field around it. It is possible to distinguish two different poles in the magnet, according to the direction of the magnetic field: in particular, the lines of the field go out from the North pole and go into the South Pole. When a magnet is broken, two new magnets are formed, each of them having its own north and south pole.

The force between two magnets can be either attractive or repulsive, depending on which poles are facing each other. We have the following situation:

The magnetic force between two like poles (north-north and south-south) is repulsive
The magnetic force between two opposite poles (north-south) is attractive

Therefore, we have the following situations in this problem:

a)

Here we are holding the two north poles together: since they are like poles, they repel each other, so the force in this case is repulsive

b)

Here we are holding a north pole and a south pole together: since they are opposite poles, they attract each other, so the force in this case is attractive

Learn more about magnetic fields:

brainly.com/question/3874443

brainly.com/question/4240735

#LearnwithBrainly

5 0
