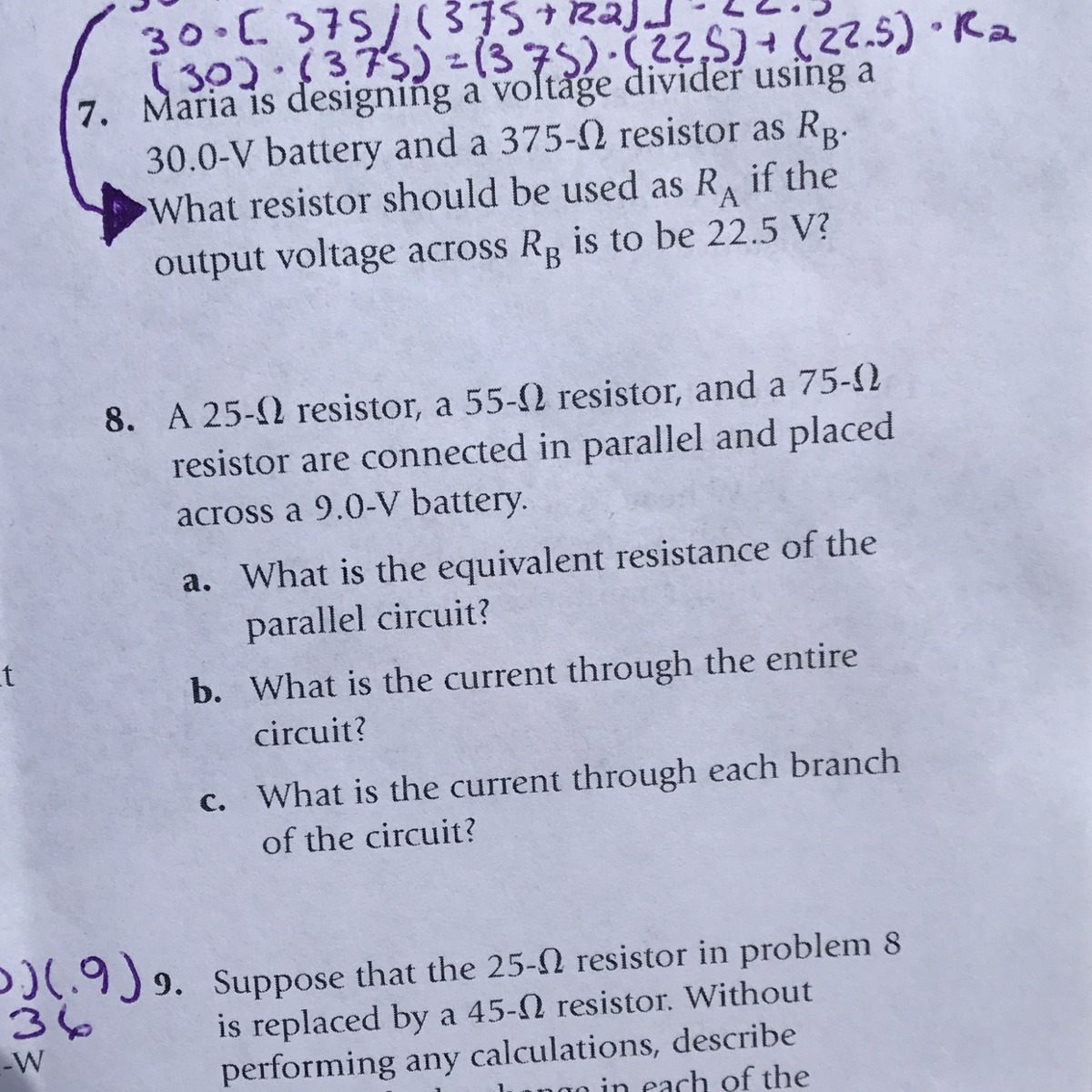

a 25 resistor, a 55 resistor, and a 75 resistor are connected in parallel and placed across a 9.0battery.

Physics

1 answer:

lawyer [7]3 years ago

5 0

A) Equivalent Resistance= (1/25+1/55+1/75)^-1=14.0ohms(3s.f.)
b) Current=9.0V/14.0=0.644A(3s.f.)
c) Current through 25-resistor=9/25=0.360A
Current through 55-resistor=9/55=0.164A
Current through 75-resistor=9/75=0.120A
All answers are rounded off to 3 significant figures
