(a) Write the RTL specification for an arithmetic shift right on an eight-bit cell. (b) Write the RTL specification for an arith

metic shift left on an eight-bit cell.

1 answer:

attashe74 [19]3 years ago

5 0

Answer:

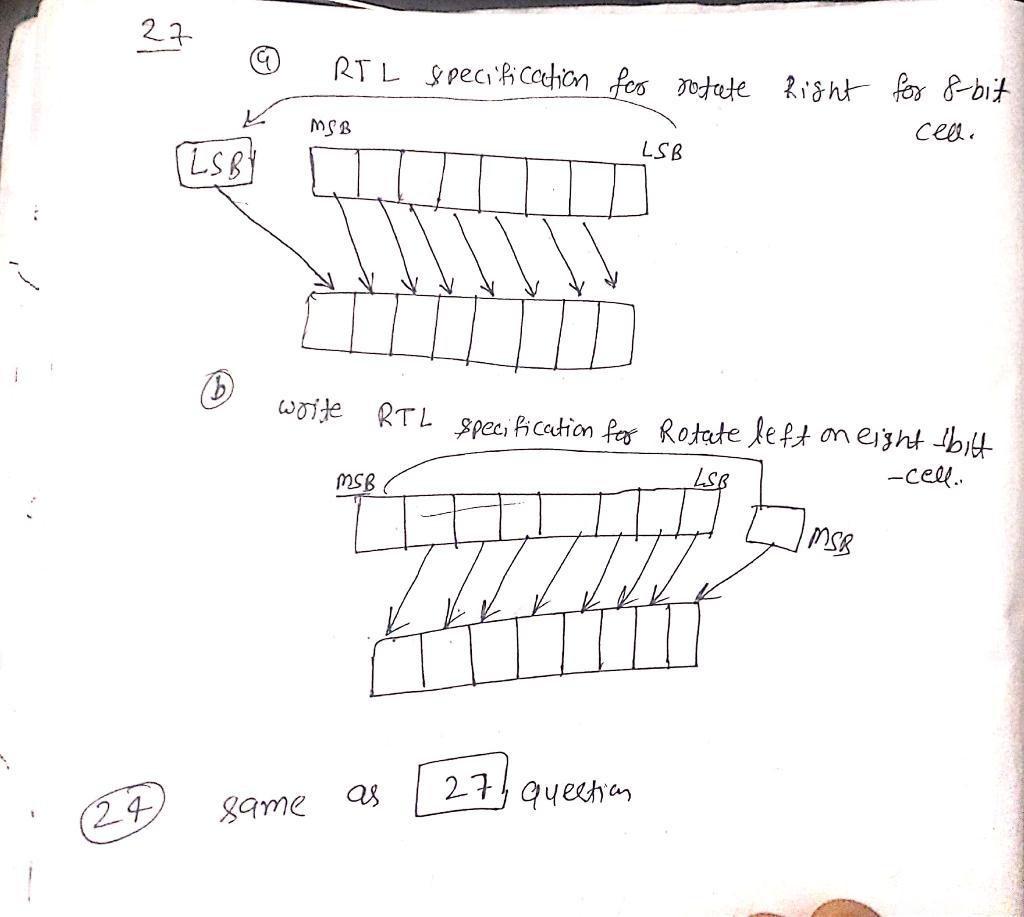

Please find attached file for complete answer solution and explanation of same question.

Explanation:
