All categories

3 years ago

Velocity answer. please explain steps

Physics

1 answer:

spin [16.1K]3 years ago

5 0

As it is a position time graph

So, it's slope represents velocity

During last 15 seconds

it passes through (5,17) (20,2)

Slope = -15/15 = -1

So Velocity= -1 m/s

You might be interested in

9. Which of the following is true regarding current in an external circuit?

IceJOKER [234]

The statement that best describes an external circuit is "<span>D. The flow of an alternating current switches direction when a generator's terminals change its charge." The main difference between direct and alternating current is the direction of flow. Direct current follows only one direction from negatve to positive, while alternating current changes direction periodically.</span>

3 0

3 years ago

Read 2 more answers

You want to describe the harmonic motion of a swing. You find out that it takes 2 seconds for the swing to complete one cycle. W

vazorg [7]

Answer: Frequency= 0.5 Hz

Period= 2s

Explanation:

2 sec= 0.5 Hz

0.5Hz= 2 sec

4 0

4 years ago

A 7.00-kg block is stacked on top of the 2.90-kg block. What is the magnitude Fof the force, acting horizontally on the 2.90-kg

zhenek [66]

Answer:

F = 19.42 [N]

Explanation:

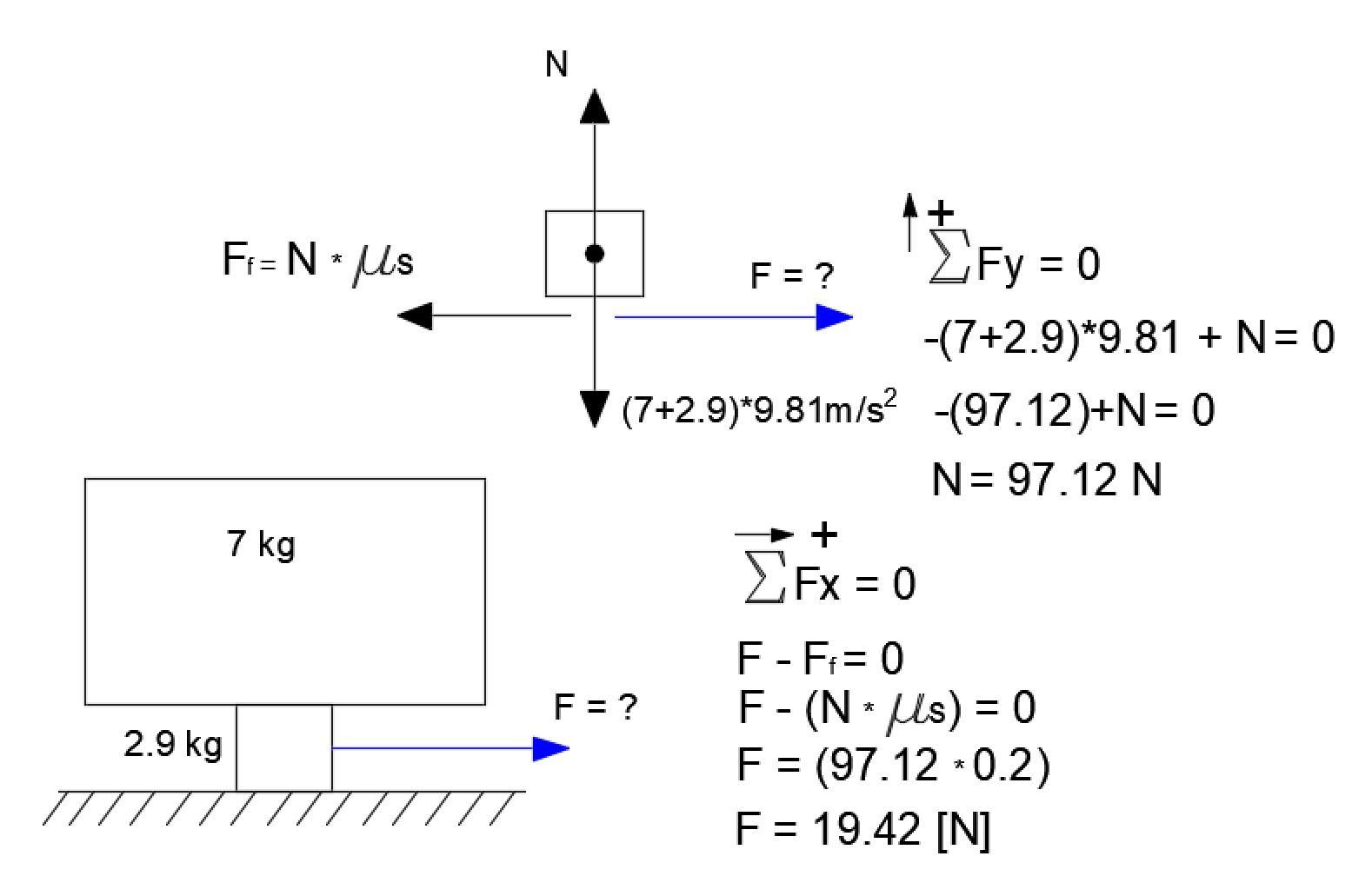

In order to solve this problem, we must first make a free body diagram and determine the forces acting on each body. In the attached image we can see the respective free body diagrams with the respective equilibrium equations.

In order to determine the value of the force, a static analysis must be performed on the block of 2.9 [kg] so that the value of the Force F can be determined.

A coefficient of friction value between the block of 2.9 [kg] and the ground must be taken into account in order to find the force F. a coefficient of friction value of 0.2 shall be taken

By the sum of forces on the Y-axis equal to zero, the value of the normal force N can be determined on the block of 2.9 [kg].

Then knowing that the frictional force is equal to the product of the normal force by the coefficient of friction, we can determine the frictional force.

By the sum of forces on the X-axis equal to zero, we can determine the value of the Force F, as seen in the equations posed in the attached image.

Note: the value of the Force F depends on the value of the coefficient of friction between surfaces.

6 0

4 years ago

22. The main difference between speed and velocity involves

Xelga [282]

A. direction is the right answer.

5 0

3 years ago

Read 2 more answers

An object with mass 110 kg moved in outer space. When it was at location < 13, -18, -2 > its speed was 19.5 m/s. A single

Serhud [2]

Answer:

v = 21.4m/s

Explanation:

Given r1 = < 13, -18, -2 > m,

F = < 250, 390, -220 > N, r2 = < 19, -23, -5 > m

Where r1 and r2 are position vectors in space and F is the constant force vector in space.

r2 - r1 = < 19–13, -23–(-18), -5–(-2) > m

Δr = < 6, -5, -3 > m

F = m×a

a = F/m

m = 110kg (scalar quantity)

a = < 250/110, 390/110, -220/110 >

a = < 2.27, 3.55, -2 > m/s²

Since the force is constant, the acceleration is also constant. Therefore the equations of constant acceleration motion apply here.

V² = u² +2aΔr

The magnitude of the acceleration is calculated as follows

a = √(2.27² + 3.55² +(-2)²)

a = √(21.7554)

a = 4.66m/s²

Magnitude of Δr,

Δr = √(6² + (-5)² +(-3)²) = √(70) = 8.37m

Having calculated the magnitude of the acceleration and displacement, we can now calculate the final velocity.

u = initial velocity = 19.5m/s

v² = 19.5² + 2×4.66×8.37

v² = 458.25

v = √(458.25)

v = 21.4m/s

6 0

3 years ago
