4. From two permeability tests it is found that the void ratio and hydraulic conductivity of a normally consolidated clay are 1.

45 and 0.7x10-7 cm/sec respectively, and 1.55 and 1.55 x 10-7 cm/sec respectively. Estimate the permeability coefficient at a void ratio of 1.5. Use Samarasinghe, Huang and Drenevich relationship

1 answer:

vesna_86 [32]3 years ago

8 0

Answer:

Explanation:

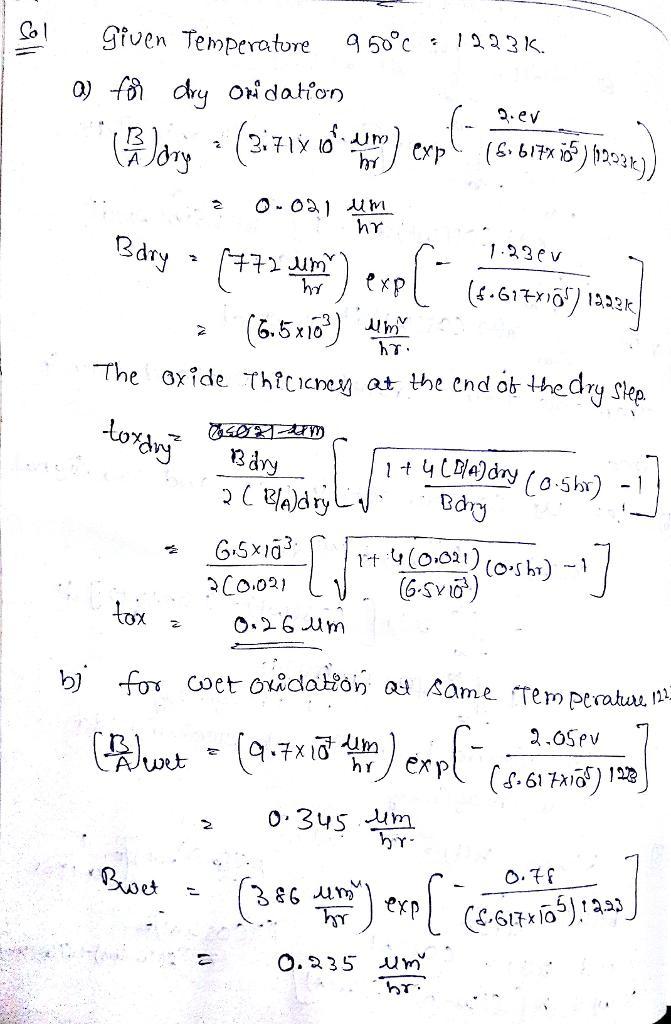

Check attachment for solution

You might be interested in

What are the advantages and disadvantages of a mine heardgear

Irina18 [472]

Answer:

If there is a shaft with headgear, then mining can take place until that depth of the shaft. If it is accessed horizontal Adits, it can mine until the lowest Adit from upwards. If it is accessed decline, the development and mining can continue so long as economic exploitation is possible.

Explanation:

What are the disadvantages of mining headgear? They totally cut off your vision of anything above your head. They are hot, most of the time

7 0

2 years ago

A body is moving with simple harmonic motion. It's velocity is recorded as being 3.5m/s when it is at 150mm from the mid-positio

natima [27]

Answer:

1) A=282.6 mm

2) $a_{max}=60.35\ m/s^2$

3)T=0.42 sec

4)f= 2.24 Hz

Explanation:

Given that

V=3.5 m/s at x=150 mm ------------1

V=2.5 m/s at x=225 mm ------------2

Where x measured from mid position.

We know that velocity in simple harmonic given as

$V=\omega \sqrt{A^2-x^2}$

Where A is the amplitude and ω is the natural frequency of simple harmonic motion.

From equation 1 and 2

$3.5=\omega \sqrt{A^2-0.15^2}$ ------3

$2.5=\omega \sqrt{A^2-0.225^2}$ --------4

Now by dividing equation 3 by 4

$\dfrac{3.5}{2.5}=\dfrac {\sqrt{A^2-0.15^2}}{\sqrt{A^2-0.225^2}}$

$1.96=\dfrac {{A^2-0.15^2}}{{A^2-0.225^2}}$

So A=0.2826 m

A=282.6 mm

Now by putting the values of A in the equation 3

$3.5=\omega \sqrt{A^2-0.15^2}$

$3.5=\omega \sqrt{0.2826^2-0.15^2}$

ω=14.609 rad/s

Frequency

ω= 2πf

14.609= 2 x π x f

f= 2.24 Hz

Maximum acceleration

$a_{max}=\omega ^2A$

$a_{max}=14.61 ^2\times 0.2826\ m/s^2$

$a_{max}=60.35\ m/s^2$

Time period T

$T=\dfrac{2\pi}{\omega}$

$T=\dfrac{2\pi}{14.609}$

T=0.42 sec

8 0

3 years ago

In a production facility, 3 cm thick large brass plates (k = 110 W/mC, α = 33.9 × 10-6 m2 /s) that are initially at a uniform

zysi [14]

Answer:

Explanation:

Given.

Thickness of brass plate $t = 3 cm$

Thermal conductivity of brass $k = 110 W/m.°C$

Density of brass $\rho = 8530 kg/m^3$

Specific heat of brass $C_p =380J/kg.°C$

Thermal diffusivity of brass $\alpha = 33.9\times 10^{-6} m^2/s$

Temperature of oven $T_{\infty} = 700°C$

The initial temperature $T_i= 25°C$

Plate remain in the oven $t =10 min$

Heat conduction in the plate is one-dimensional since the plate is large relative to its thickness and there is thermal symmetry about the center plane.

The thermal properties of the plate are constant.

The heat transfer coefficient is constant and uniform over the entire surface.

The Fourier number is > 0.2 so that the one-term approximate solutions (or the transient temperature charts) are applicable (this assumption will be verified).

The Biot number for this process $Bi = \frac{hL}{k}\\\\Bi=\frac{(80 W/m^2.°C)(0.015 m)}{(110 W/m.°C)}\\=Bi =0.0109$

The constants $\lambda_1$ and $A_1$ corresponding to this Biot are, from 11-2 tables.

The interpolation method used to find the

$\lambda_1=0.1039$ and $A_1=1.0018
$

The Fourier number $\tau=\frac{\alpha t}{L^2}\\\\\tau=\frac{(33.9\times 10^{-6} m^2/s)(10 min \times 60 s/min)}{(0.015m)^2}
\\\\\tau=90.4>0.2$

Therefore, the one-term approximate solution (or the transient temperature charts) is applicable.

Then the temperature at the surface of the plates becomes

$\theta(L,t)_{wall}=\frac{T(x,t)-T_{\infty}}{(T_i-T_{\infty})}\\\\\theta(L,t)_{wall}=A_1e^{-\lambda_1^2\tau}\cos(\lambda_1L/L)\\\\\theta(L,t)_{wall}=(1.0018)e^{-(0.1039^2(90.4))}\cos(0.1039)\\\\\theta(L,t)_{wall}=0.378\\\\\frac{T(L,t)-700}{25-700}=0.378\\\\T(L,t)=445°C$

3 0

3 years ago

Read 2 more answers

A 2-m3 rigid tank initially contains air at 100 kPa and 22°C. The tank is connected to a supply line through a valve. Air is flo

Finger [1]

Answer:

9.58 Kg of air has entered the tank.

heat entered=3483.76 Kilo.Joule

Explanation:

(A) R=287 Kilo.J/Kg.K

as per initial conditions P=100 Kilo.Pa ,V=2 cubic meter, T=22 C=295.15 K,

using the relation P*V=m*R*T

m=(100*1000*2)/(287*295.15)=2.36 Kg this is the mass that is already present in tank.

after filling tank at 600 Kilo.Pa.

P=600 Kilo Pa T=77 C=350.15 K

P*V=m*R*T

m=(600*1000*2)/(287*350.15)=11.94 Kg

mass that has entered=11.94-2.36=9.58 Kg

(b) using air psychometric property table

specific heat content initial 100 KILO Pa and 22 C=295.576 Kilo.Joule/Kg

specific heat content final 600 Kilo Pa and 77 C=350.194 Kilo.Joule/Kg

heat at initial stage=295.576*2.36=697.56 Kilo.Joule

heat at final stage=350.194*11.94=4181.32 Kilo.Joule

heat entered=4181.32-697.56=3483.76 Kilo.Joule

3 0

3 years ago

It is estimated that 93 percent of an iceberg’s volume is below the surface, while only 7 percent is visible above the surface.

yanalaym [24]

Answer:

953.25kg/m3

Explanation:

The percent of iceberg volume submerged = $\frac{iceberg density}{water density}$

$\frac{iceberg density}{1025} = 0.93\\iceberg density = 1025 x 0.83\\iceberg density = 953.25kg/m^{3}$

6 0
