Answer:
Hydrostatic force = 41168 N
Explanation:
Complete question
A triangular plate with a base 5 ft and altitude 3 ft is submerged vertically in water so that the top is 4 ft below the surface. If the base is in the surface of water, find the force against onr side of the plate. Express the hydrostatic force against one side of the plate as an integral and evaluate it. (Recall that the weight density of water is 62.5 lb/ft3.)
Let "x" be the side length submerged in water.
Then
w(x)/base = (4+3-x)/altitude
w(x)/5 = (4+3-x)/3
w(x) = 5* (7-x)/3
Hydrostatic force = 62.5 integration of x * 4 * (10-x)/3 with limits from 4 to 7
HF = integration of 40x - 4x^2/3
HF = 20x^2 - 4x^3/9 with limit 4 to 7
HF = (20*7^2 - 4*7^(3/9))- (20*4^2 - 4*4^(3/9))
HF = 658.69 N *62.5 = 41168 N
Answer:
Check the explanation
Explanation:

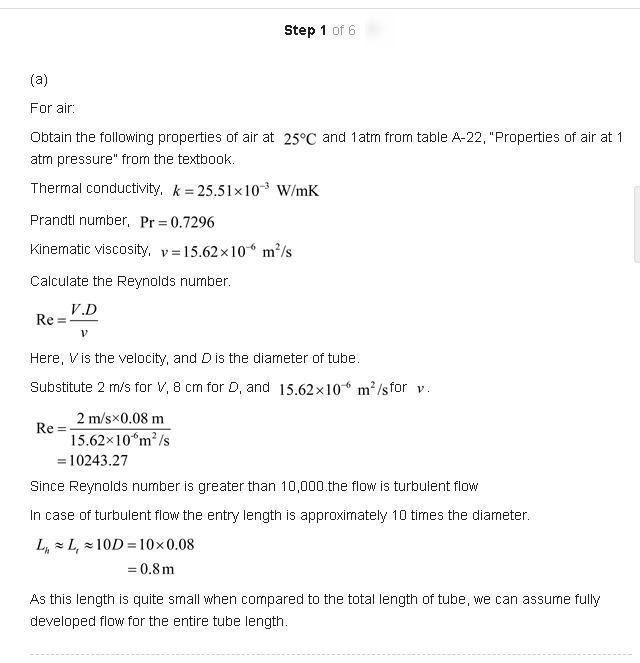

Kindly check the attached image below to see the step by step explanation to the question above.
Answer:
Check the explanation
Explanation:
Kindly check the attached images below to see the step by step explanation to the question above.
Answer:
(d) Spheroidizing
Explanation:
Spheroidizing
This is the heat treatment process for steel which having carbon percentage more than 0.8 %.As we know that a hard and brittle material is having carbon percentage more than 0.8 %.That is why this process is suitable for the hard materials.
In this process a hard and brittle materials convert into soft and ductile after this it improve the machine ability as well as improve the tool life.
In this process grain become spheroidal and these grains are ductile.
