andrew11 [14]
3 years ago
12

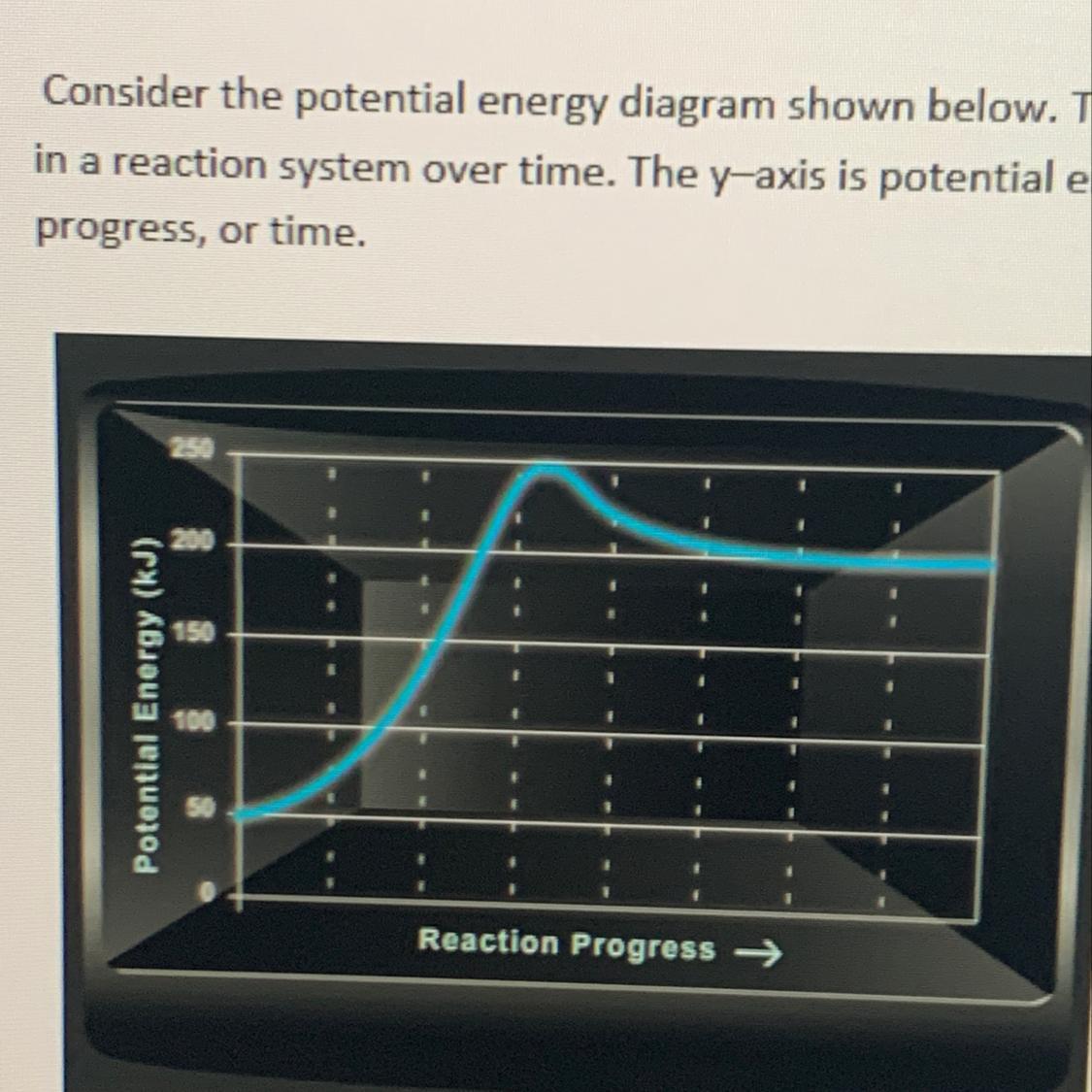

Potential Energy (kJ)

Physics
1 answer:
Gennadij [26K]3 years ago
8 0

Answer:

Endothermic reaction

Explanation:

(a) Endothermic reaction: These are reactions that absorb heat from the surrounding during a chemical reaction. The enthalpy change for endothermic reaction is always positive,  and the energy level of the product is higher than that of the reactant

(b) Exothermic reaction: These are reactions that release heat to the surrounding during chemical reaction. The enthalpy change for exothermic reaction is always positive, and the energy level of the product is lower than that of the reactant.

From the diagram in the question,

Since the energy level of the product is higher than that of the reactant then the reaction is an endothermic reaction and as such, ΔH is positive

You might be interested in
A car is traveling with a velocity of 40 m/s and has a mass of 1120 kg. The car has ___ energy
TiliK225 [7]

Answer:

KE = 1/2mv^2

KE = 1/2(1120)(40^2)

KE = 560(1600)

KE = 896000

Let me know if this helps!

4 0
3 years ago
A beam of photons with wavelength 150 nm and beam of electrons having the same energy as the photons go through the same slit of
satela [25.4K]

Answer:

Explanation:

For moving particle , the wavelength is given by the expression

\lambda=\frac{h}{\sqrt{2mE} }

E is kinetic energy of the particle

Here particle is electron and its kinetic energy

E = 150 nm

= 1244 / 150

= 8.3 eV

8.3 X 1.6 X 10⁻¹⁹ J

=13.28 X 10⁻¹⁹ J

Putting these values in the expression for wavelength as given above we have

\lambda=\frac{6.6\times10^{-34}}{\sqrt{2\times9.1\times10^{-31}\times13.28\times10^{-19}} }

λ = .425 nm

Wave length of electron wave will be 0.425 nm

Hence its wavelength will be smaller and therefore magnitude of angle made by it will also be smaller. So magnitude of β will be smaller than that of α .

4 0
3 years ago
At resonance, what is impedance of a series RLC circuit?
Elis [28]

Answer:

c) Equal to R

b) the width of the resonance

Explanation: In general the impedance Z of an electrc circuit is:

Z = R + jX

Now when the circuit is capacitive, the above mentioned relation become  Z = R + 1/jwc  where ( w = 2πf  )

And when the circuit is inductive Z becomes

Z  =  R + j wl

Resonance  condition implies that the reactance created by capacitors are equal at the inductances produced by inductors, in other words the circuit will behaves as it were resistive.

The impedance will be equal to R

The Q factor is[

Q = X/R  in which X is the module of either the capacitive or inductive reactance.

Q has an inverse relation with the band width.

3 0
4 years ago
Heather and Jerry are standing on a bridge 60 m above a river Heather throws a rock straight down with a speed of 14 m/s. Jerry,
melisa1 [442]

Answer:

Time elapsed   = 2.856

SECOND ROCK HAS FASTER SPEED

Explanation:

This can be achieved in 2 ways, and it is clear from the careful study that the travel time is attributed to the time required to cross the path above the bridge by the 2nd stone  i.e.

14 = 9.8 * t

t = 1.428 sec and

time between 2 splash  = 2 * 1.428 = 2. 857 sec

2nd way

let time for 1st spalsh be t and

second splash be t1.

from equation of motion

so 60 = 14t + 0.5 * 9.8 * t * t

4.9 t^2 + 14t -60 = 0

On solving, we get t = 2.351 sec

for t_1, we have some extra time, which can be divided into t2 and t3.

14 = 9.8 * t2

t2 = 1.428 sec

total time taken by 2 is

T = 1.428 + 1.428 + 2.351

so we get t_1 = 5.207 sec

time elapsed is  = T - t

                           = 5.207 - 2.351

Time elapsed   = 2.856

SECOND ROCK HAS FASTER SPEED

4 0
3 years ago
A plane is flying east at 135 m/s. The wind accelerates it at 2.18 m/s2 directly northeast. After 18.0 s, what is the direction
Brrunno [24]

the plane was flying at 2,691. 33 m at 5.32°

4 0
