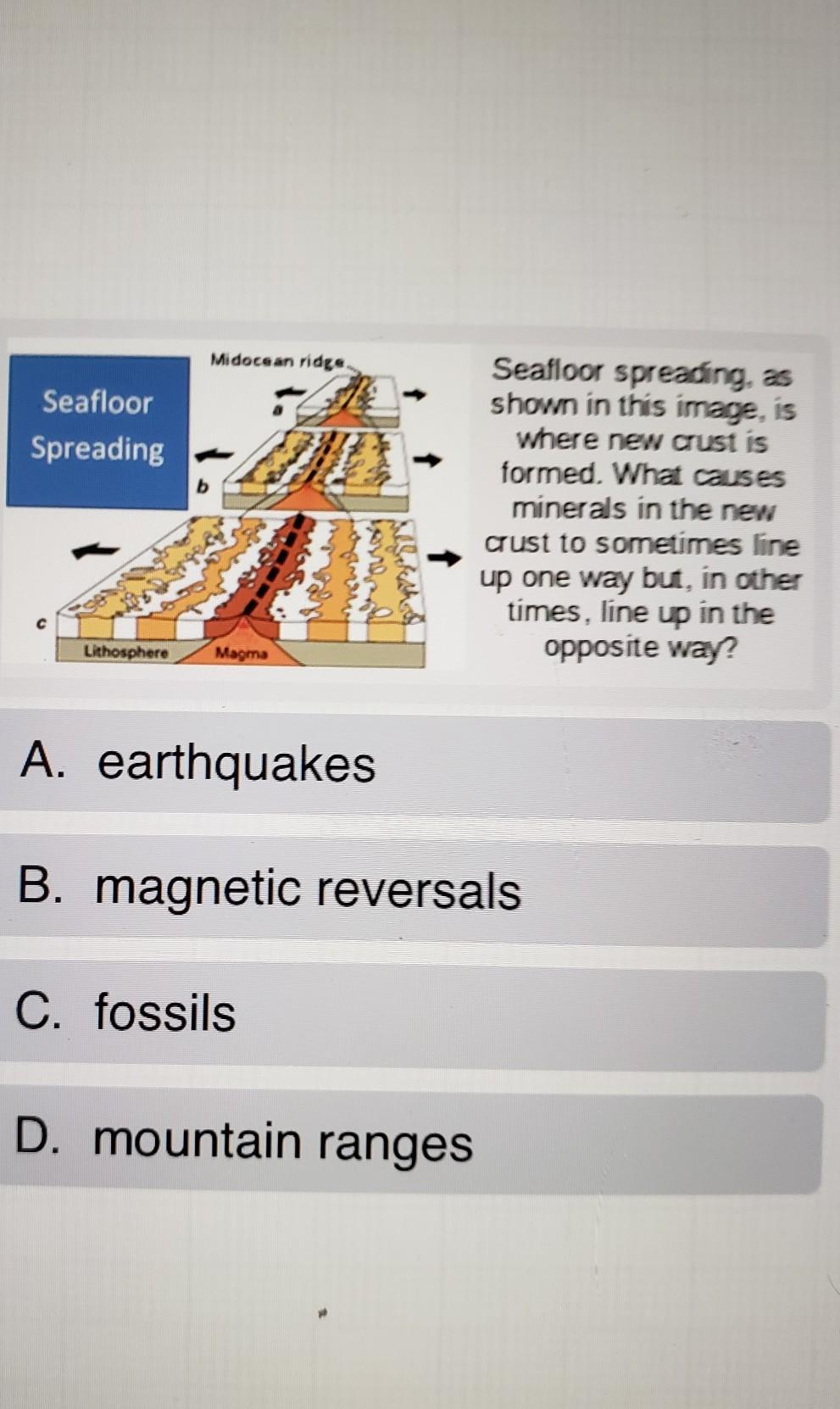

I need help with simply science

Engineering

1 answer:

Lera25 [3.4K]3 years ago

8 0

Answer:

mountain ranges may be

You might be interested in

The human eye, as well as the light-sensitive chemicals on color photographic film, respond differently to light sources with di

jeka57 [31]

Answer:

a) at T = 5800 k

band emission = 0.2261

at T = 2900 k

band emission = 0.0442

b) daylight (d) = 0.50 μm

Incandescent ( i ) = 1 μm

Explanation:

To Calculate the band emission fractions we will apply the Wien's displacement Law

The ban emission fraction in spectral range λ1 to λ2 at a blackbody temperature T can be expressed as

F ( λ1 - λ2, T ) = F( 0 ----> λ2,T) - F( 0 ----> λ1,T )

Values are gotten from the table named: blackbody radiation functions

a) Calculate the band emission fractions for the visible region

at T = 5800 k

band emission = 0.2261

at T = 2900 k

band emission = 0.0442

attached below is a detailed solution to the problem

b)calculate wavelength corresponding to the maximum spectral intensity

For daylight ( d ) = 2898 μm *k / 5800 k = 0.50 μm

For Incandescent ( i ) = 2898 μm *k / 2900 k = 1 μm

3 0

3 years ago

Por favor. alguien me comunique con fatimalisethmateual

lions [1.4K]

Wait why do you want me to

7 0

3 years ago

Triss [41]

Answer:

2.5 is the required details

8 0

3 years ago

13- Convert the following numbers to the indicated bases. List all intermediate steps.

nikklg [1K]

Answer:

Following are the conversion to this question:

Explanation:

In point (a):

$\to \frac{36459080}{8} = 4557385 + \ \ \ \ \ \ \ \ \ \frac{0}{8}\\\\\to \frac{4557385}{8} = 569673 + \ \ \ \ \ \ \ \ \ \frac{1}{8}\\\\\to \frac{569673}{8} = 71209+ \ \ \ \ \ \ \ \ \ \frac{1}{8}\\\\\to \frac{71209}{8}=8901+\ \ \ \ \ \ \ \ \ \ \ \frac{1}{8}\\\\\to \frac{8901}{8}=1112+ \ \ \ \ \ \ \ \ \ \ \ \ \frac{5}{8}\\\\\to \frac{1112}{8}=139+ \ \ \ \ \ \ \ \ \ \ \frac{0}{8}\\\\\to \frac{139}{8}=17+ \ \ \ \ \ \ \ \ \ \ \frac{3}{8}\\\\\to \frac{17}{8}=2+ \ \ \ \ \ \ \ \ \ \ \ \ \frac{1}{8}\\\\$

$\to \frac{2}{8}=0+ \ \ \ \ \ \ \ \ \ \frac{2}{8}\\\\ \bold{(36459080)_{10}=(213051110)_8}$

In point (b):

$\to \frac{20960032010}{16} = 13100020+ \ \ \ \ \ \ \ \ \ \frac{0}{16}\\\\\to \frac{13100020}{16} = 818751+ \ \ \ \ \ \ \ \ \ \frac{4}{16}\\\\\to \frac{818751}{16} = 51171+ \ \ \ \ \ \ \ \ \ \frac{15}{16}\\\\\to \frac{51171}{16}=3198+\ \ \ \ \ \ \ \ \ \ \ \frac{3}{16}\\\\\to \frac{3198}{16}=199+ \ \ \ \ \ \ \ \ \ \ \ \ \frac{14}{1}\\\\\to \frac{199}{16}=12+ \ \ \ \ \ \ \ \ \ \ \frac{7}{16}\\\\\to \frac{12}{16}=0+ \ \ \ \ \ \ \ \ \ \ \frac{12}{16}\\\\ \bold{(20960032010)_{10}=(C7E3F40)_{16}}$

In point (c):

$\to (2423233303003040)_s=(88757078520)_{10}\\\\\to \frac{88757078520}{25}= 3550283140+ \ \ \ \ \ \ \ \ \ \frac{20}{25}\\\\ \to \frac{3550283140}{25}= 142011325+ \ \ \ \ \ \ \ \ \ \frac{15}{25}\\\\\to \frac{142011325}{25}= 5680453+ \ \ \ \ \ \ \ \ \ \frac{0}{25}\\\\\to \frac{5680453}{25}= 227218+ \ \ \ \ \ \ \ \ \ \frac{3}{25}\\\\\to \frac{227218}{25}= 9088+ \ \ \ \ \ \ \ \ \ \frac{18}{25}\\\\\to \frac{9088}{25}= 363+ \ \ \ \ \ \ \ \ \ \frac{13}{25}\\\\$

$\to \frac{363}{25}= 14+ \ \ \ \ \ \ \ \ \ \frac{13}{25}\\\\\to \frac{14}{25}= 0+ \ \ \ \ \ \ \ \ \ \frac{14}{25}\\\\\bold{(2423233303003040)_s=(EDDI30FK)_{25}}$

Symbols of Base 25 are as follows:

$0, 1, 2, 3,4,5,6,7,8,9,A,B,C,D,E,F,G,H,I,J,K,L,M,N, \ and \ O$

6 0

3 years ago

If the tank is designed to withstand a pressure of 5 MPaMPa, determine the required minimum wall thickness to the nearest millim

dmitriy555 [2]

Answer: hello some aspects of your question is missing below is the missing information

The gas tank is made from A-36 steel and has an inner diameter of 1.50 m.

answer:

≈ 22.5 mm

Explanation:

Given data:

Inner diameter = 1.5 m

pressure = 5 MPa

factor of safety = 1.5

Calculate the required minimum wall thickness

maximum-shear-stress theory ( σ allow ) = σγ / FS

= 250(10)^6 / 1.5 = 166.67 (10^6) Pa

given that |σ| = σ allow

3.75 (10^6) / t = 166.67 (10^6)

∴ t ( wall thickness ) = 0.0225 m ≈ 22.5 mm

4 0

3 years ago

I need help with simply science ​

I need help with simply science
