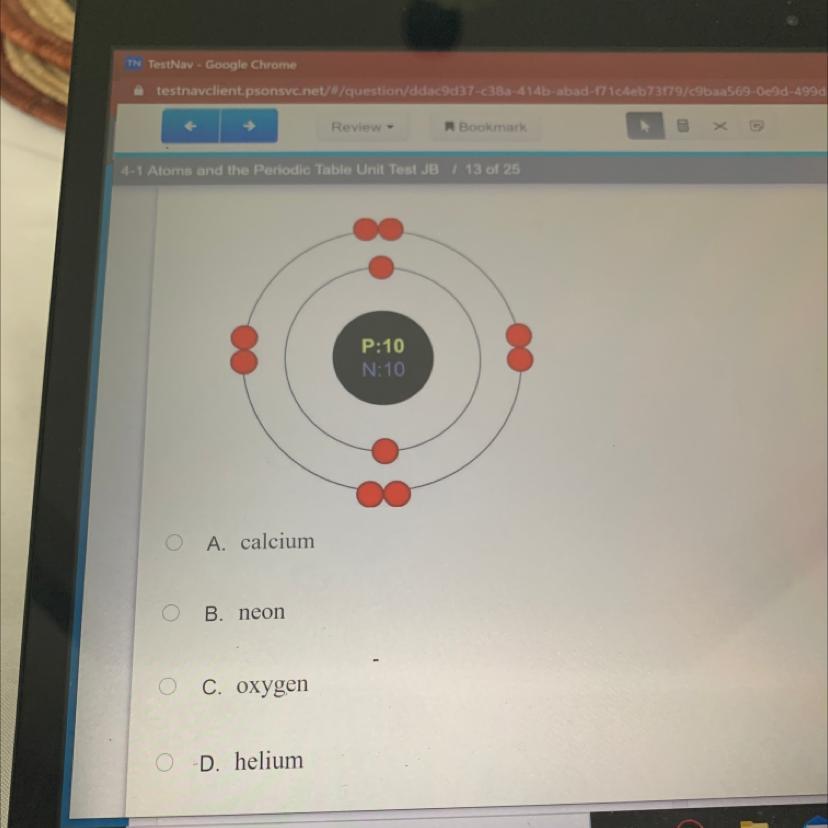

Which element is represented by the atomic model below

Physics

1 answer:

Citrus2011 [14]3 years ago

4 0

Answer:

Explanation:

because f its electronic configuration 2:8 indicating that it has 8 electrons in its outer most energy level

You might be interested in

A screen is placed 1.60 m behind a single slit. The central maximum in the resulting diffraction pattern on the screen is 1.40 c

Lunna [17]

Answer:

distance between the two second-order minima is 2.8 cm

Explanation:

Given data

distance = 1.60 m

central maximum = 1.40 cm

first-order diffraction minima = 1.40 cm

to find out

distance between the two second-order minima

solution

we know that fringe width = first-order diffraction minima /2

fringe width = 1.40 /2 = 0.7 cm

and

we know fringe width of first order we calculate slit d

β1 = m1λD/d

d = m1λD/β1

and

fringe width of second order

β2 = m2λD/d

β2 = m2λD / ( m1λD/β1 )

β2 = ( m2 / m1 ) β1

we know the two first-order diffraction minima are separated by 1.40 cm

y = 2β2 = 2 ( m2 / m1 ) β1

put here value

y = 2 ( 2 / 1 ) 0.7

y = 2.8 cm

so distance between the two second-order minima is 2.8 cm

6 0

3 years ago

A hockey puck slides off the edge of a platform with an initial velocity of 20 m/s horizontally. The height of the platform abov

Rina8888 [55]

Answer:

20.96 m/s

Explanation:

Using the equations of motion

y = uᵧt + gt²/2

Since the puck slides off horizontally,

uᵧ = vertical component of the initial velocity of the puck = 0 m/s

y = vertical height of the platform = 2 m

g = 9.8 m/s²

t = time of flight of the puck = ?

2 = (0)(t) + 9.8 t²/2

4.9t² = 2

t = 0.639 s

For the horizontal component of the motion

x = uₓt + gt²/2

x = horizontal distance covered by the puck

uₓ = horizontal component of the initial velocity = 20 m/s

g = 0 m/s² as there's no acceleration component in the x-direction

t = 0.639 s

x = (20 × 0.639) + (0 × 0.639²/2) = 12.78 m

For the final velocity, we'll calculate the horizontal and vertical components

vₓ² = uₓ² + 2gx

g = 0 m/s²

vₓ = uₓ = 20 m/s

Vertical component

vᵧ² = uᵧ² + 2gy

vᵧ² = 0 + 2×9.8×2

vᵧ = 6.26 m/s

vₓ = 20 m/s, vᵧ = 6.26 m/s

Magnitude of the velocity = √(20² + 6.26²) = 20.96 m/s

4 0

3 years ago

Read 2 more answers

What is the correct definition of civics?

RSB [31]

Answer:

the definition of civics is the study of the rights and duties of citizenship.

so the answer is B.

hope this helps.

4 0

3 years ago

Read 2 more answers

Power output of an engine is with work (w=60,000) during 60 s Calculate the power of this work?*

igomit [66]

Answer:

<em>The power output of the engine is 1,000 Watt</em>

Explanation:

<u>Mechanical Power </u>

Power is the amount of energy transferred or converted per unit of time. In the SI, the unit of power is the watt, equal to one joule per second.

The power can be calculated as:

$\displaystyle P=\frac {W}{t}$

Where W is the work and t is the time.

The engine does a work of W=60,000 J during t=60 s. Calculate the power:

$\displaystyle P=\frac {60,000}{60}$

P = 1,000 Watt

The power output of the engine is 1,000 Watt

6 0

3 years ago

What is it called when light shining on certain substances causes an electric current to flow? the polarized light phenomena inf

tamaranim1 [39]

Photoelectric effect

4 0

4 years ago

Read 2 more answers
