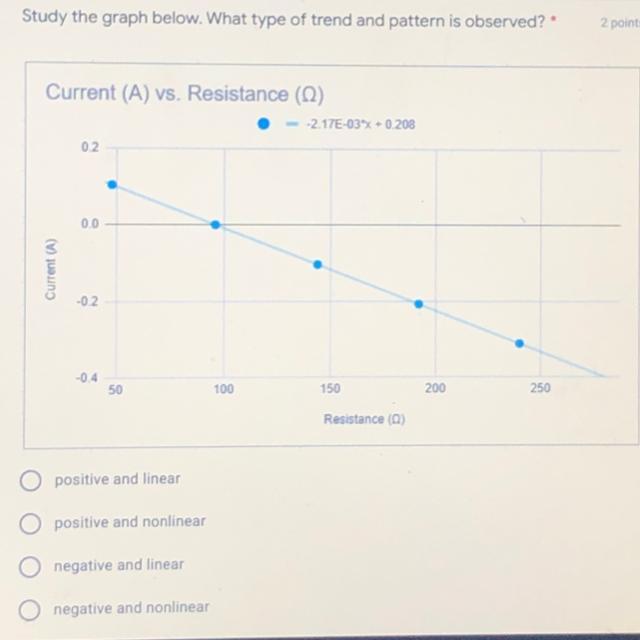

Study the graphs below what type of trend and pattern in observed .

Engineering

2 answers:

hichkok12 [17]3 years ago

8 0

Answer:

negative and linear

Explanation:

its a straight line going down

Scrat [10]3 years ago

4 0

It’s a negative as it’s going down
