Rudik [331]
3 years ago
14

. If block A has a velocity of 0.6 m/s to the right, determine the velocity of cylinder​

Physics
2 answers:
DiKsa [7]3 years ago
6 0
We will solve it with the help of constraints equation

As we can see, a string is attached with block A, and three string is folded with ply which is attached with

andrezito [222]3 years ago
5 0

Answer:

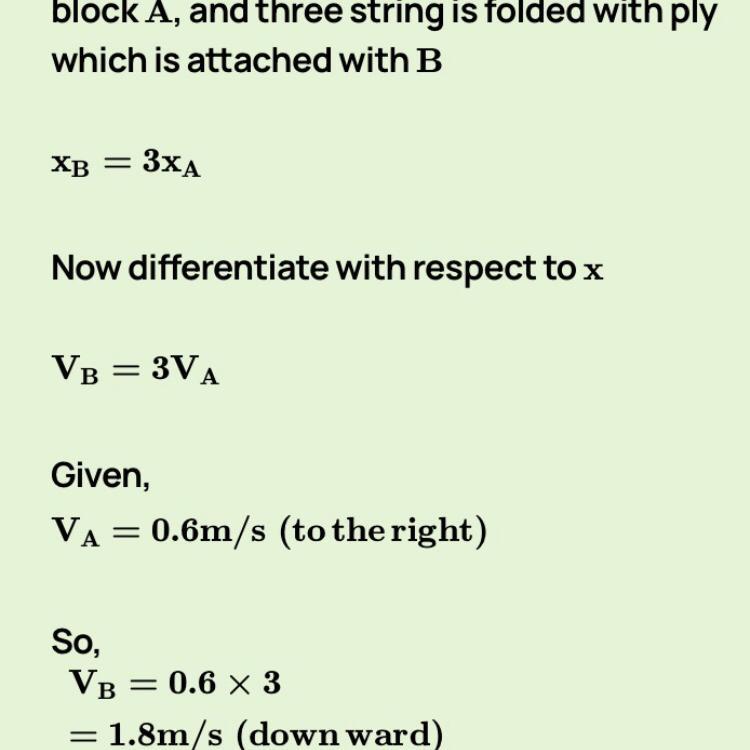

As we can see, a string is attached with block A, and three string is folded with ply which is attached with B

x

B

​

=3x

A

​



Now differentiate with respect to x

V

B

​

=3V

A

​



Given,

V

A

​

=0.6m/s(totheright)

So,

V

B

​

=0.6×3

=1.8m/s(downward)

​

Explanation:

IF THE ANSWER IS RIGHT PLZ GIVE ME BRAINLIEST

THANK U

HAVE FUN AND BE SAFE

You might be interested in
This is an example of using a hammer as a(n)
barxatty [35]

, to hit nails into a piece of wood or a wall, or to break things into pieces.

3 0
4 years ago
Read 2 more answers
A light bulb is connected to a 2V supply and experiences a current of 6.4A. What is the power rating of the bulb?
Olenka [21]

Answer:

12.8 Watts

Explanation:

P = VI

P = (2 V) (6.4 A)

P = 12.8 W

8 0
4 years ago
Which of the following statements is correct A. College degree isn't as important as it was in the past b. Over time, I can earn
julia-pushkina [17]

Answer:

I'd say C is the answer they want, though my pedantic side wants to argue for B being true as well.

3 0
3 years ago
A pendulum oscillates 12 times in 4 seconds. what is the length of the pendulum?
seraphim [82]

Answer:

L = 2.8 cm

Explanation:

Period T = 4 / 12 = 1/3 s

T = 2π√(L/g)

L = (T/2π)²g

L = ((1/3)/2π)²9.8 = 0.02758... ≈ 2.8 cm

6 0
3 years ago
A ball is thrown from a rooftop with an initial downward velocity of magnitude vo = 2.9 m/s. The rooftop is a distance above the
Step2247 [10]

Answer:

a) The velocity of the ball when it hits the ground is -20.5 m/s.

b) To acquire a final velocity of 27.3 m/s, the ball must be thrown from a height of 38 m.

Explanation:

I´ve found the complete question on the web:

<em />

<em>A ball is thrown from a rooftop with an initial downward velocity of magnitude v0=2.9 m/s. The rooftop is a distance above the ground, h= 21 m. In this problem use a coordinate system in which upwards is positive.</em>

<em>(a) Find the vertical component of the velocity with which the ball hits the ground.</em>

<em>(b) If we wanted the ball's final speed to be exactly 27, 3 m/s from what height, h (in meters), would we need to throw it with the same initial velocity?</em>

<em />

The equation of the height and velocity of the ball at any time "t" are the following:

h = h0 + v0 · t + 1/2 · g · t²

v = v0 + g · t

Where:

h = height of the ball at time t.

h0 = initial height.

v0 = initial velocity.

t = time.

g = acceleration due to gravity (-9.8 m/s² considering the upward direction as positive).

v = velocity of the ball at a time "t".

First, let´s find the time it takes the ball to reach the ground (the time at which h = 0)

h = h0 + v0 · t + 1/2 · g · t²

0 = 21 m - 2.9 m/s · t - 1/2 · 9.8 m/s² · t²

Solving the quadratic equation using the quadratic formula:

t = 1.8 s  ( the other solution of the quadratic equation is rejected because it is negative).

Now, using the equation of velocity, let´s find the velocity of the ball at

t = 1.8 s:

v = v0 + g · t

v = -2.9 m/s - 9.8 m/s² · 1.8 s

v = -20.5 m/s

The velocity of the ball when it hits the ground is -20.5 m/s.

b) Now we have the final velocity and have to find the initial height. Using the equation of velocity we can obtain the time it takes the ball to acquire that velocity:

v = v0 + g · t

-27.3 m/s = -2.9 m/s - 9.8 m/s² · t

(-27.3 m/s + 2.9 m/s) / (-9.8 m/s²) = t

t = 2.5 s

The ball has to reach the ground in 2.5 s to acquire a velocity of 27.3 m/s.

Using the equation of height, we can obtain the initial height:

h = h0 + v0 · t + 1/2 · g · t²

0 = h0 -2.9 m/s · 2.5 s - 1/2 · 9.8 m/s² · (2.5 s)²

-h0 = -2.9 m/s · 2.5 s - 1/2 · 9.8 m/s² · (2.5 s)²

h0 = 38 m

To acquire a final velocity of 27.3 m/s, the ball must be thrown from a height of 38 m.

6 0
4 years ago
