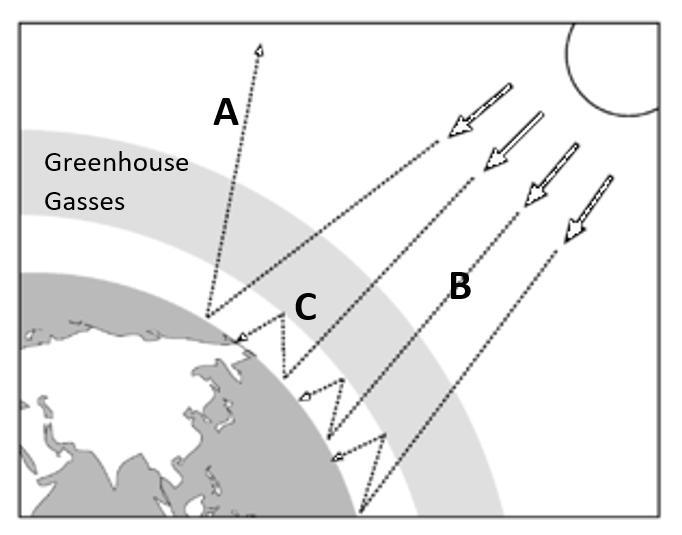

URGENT_____The diagram below shows the same model of the greenhouse effect... Select whether each process helps WARM UP or COOL

DOWN the Earth's climate. *

2 answers:

motikmotik3 years ago

7 0

A cools b and c heat

docker41 [41]3 years ago

6 0

If your seeing this good luck and Have a great dayyy!

You might be interested in

Another term for "phone to pocket" is:

Gemiola [76]

Answer:

B

Explanation:

3 0

3 years ago

An ultrasound pulse used in medical imaging has a frequency of 5 MHz and a pulse width of 0.5 us. Ap- proximately how many osci

podryga [215]

At the frequency of 5 MHz, the period of the oscillations is 1/5meg. That's a period of 1/5 microsecond.

There are 5 full cycles in one full microsecond, and there are 2.5 full cycles in a 0.5 us pulse.

You'll have to decide for yourself how damped a pulse of 2.5 cycles is, because the parameters of the definition are corrupted in the question.

4 0

3 years ago

Three struts are pinned together at A, B, and C to form a triangular

ZanzabumX [31]

Answer:

a. Fab = 3000 N tension

Fac = 1500 N compression

Fbc = 3000 N compression

b. Aluminum for AB, titanium for AC and BC.

c. Fc = 4000 N

Explanation:

a. Draw free body diagrams of the pins at A and B, assuming that all internal forces are in tension (pulling away from the pin).

Sum of the forces on A in the x direction:

∑F = ma

H − Fab sin 60° = 0

Fab = H / sin 60°

Fab = 2600 / sin 60°

Fab = 3000 N

Sum of the forces on A in the y direction:

∑F = ma

-Fab cos 60° − Fac = 0

Fac = -Fab cos 60°

Fac = -H / tan 60°

Fac = -2600 / tan 60°

Fac = -1500 N (it's negative, so it's actually in compression).

Sum of the forces on B in the x direction:

∑F = ma

Fab cos 30° + Fbc cos 30° = 0

Fbc = -Fab

Fbc = -H / sin 60°

Fbc = -3000 N (it's negative, so it's in compression)

b. AB is in tension, so it should be aluminum.

AC and BC are in compression, so they should be titanium.

c. Draw a free body diagram of the entire triangle ABC. Assume there is both a horizontal and vertical reaction force at C, and assume they point in the +x and +y directions.

Sum of the forces in the x direction:

∑F = ma

Fcx + H = 0

Fcx = -H

Fcx = -2600 N

Sum of the forces in the y direction:

∑F = ma

Fcy − V = 0

Fcy = V

Fcy = 3000 N

The magnitude of the net force is:

Fc² = Fcx² + Fcy²

Fc² = (-2600 N)² + (3000 N)²

Fc = 4000 N

4 0

3 years ago

What is a sentence for allele

slavikrds [6]

A different form of gene is known as an allele.

5 0

3 years ago

Read 2 more answers

At time t=0 a proton is a distance of 0.360 m from a very large insulating sheet of charge and is moving parallel to the sheet w

Yuki888 [10]

Explanation:

Formula for the electric field due to the infinite sheet of charge is as follows.

E = $\frac{\sigma}{2 \epsilon_{o}}$

where, $\sigma$ = surface charge density

Now, formula for electric force acting on the proton is as follows.

F = eE

where, e = charge of the proton

According to the Newton's second law of motion, the net force acting on the proton is as follows.

F = ma

a = $\frac{eE}{m}$

= $\frac{e(\frac{\sigma}{2 \epsilon_{o}})}{m}$

= $\frac{e \sigma}{2m \epsilon_{o}}$

According to the kinematic equation, speed of the proton in perpendicular direction is as follows.

$v_{f} = v_{i} + at$

= $(0 m/s) + \frac{e \sigma}{2 m \epsilon_{o}}t$

= $\frac{1.6 \times 10^{-19}C \times 2.34 \times 10^{-9} C/m^{2} \times 5.40 \times 10^{-8}s}{2 \times (1.67 \times 10^{-27} kg)(8.85 \times 10^{-12} C^{2}/Nm^{2}}$

= 683.974 m/s

Hence, total speed of the proton is as follows.

v' = $\sqrt{(960 m/s)^{2} + (683.974 m/s)^{2}}$

= $\sqrt{921600 + 467820.43}$

= $\sqrt{1389420.43}$

= 1178.73 m/s

Therefore, we can conclude that speed of the proton is 1178.73 m/s.
