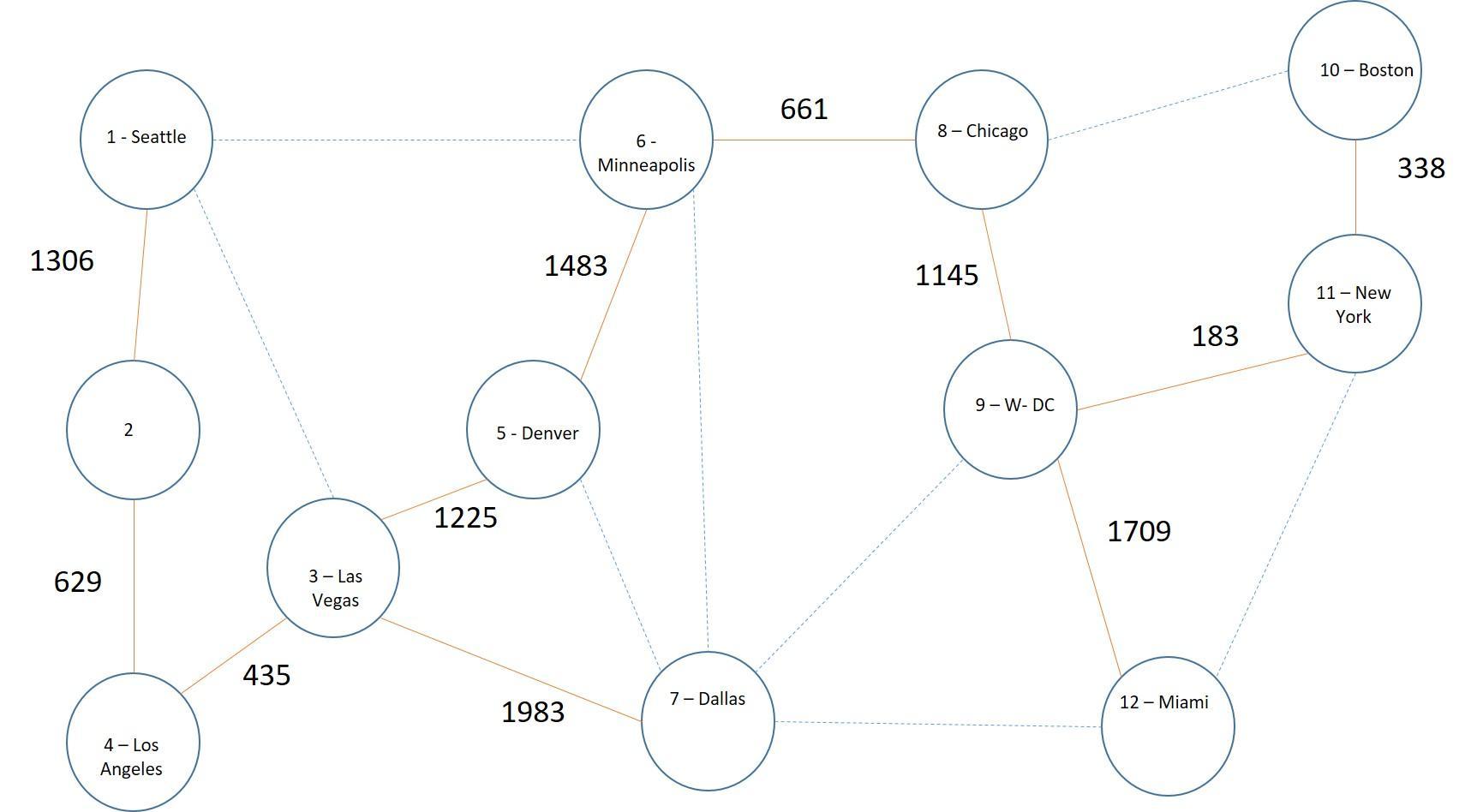

The Minimum Spanning Tree diagram associated with ZTX's project is indicated as attached. The total cost associated with it is $1,664,550
<h3>What is a Minimum Spanning Tree?</h3>A graph spanning tree is a set of linked edges that encompass every vertex in the graph but do not create a cycle. A graph may have several such spanning trees.
The Minimum Spanning Tree, on the other hand, has the least cumulative edge weights.
<h3>What is the calculation for the attached minimum spanning tree?</h3>The starting point is Seattle.
The total minimum cost is given as:
(1306 + 629 + 435 + 1983 + 1225 + 1483 + 661 + 1145 + 1709 + 183 + 338) x 150
= $1,664,550
