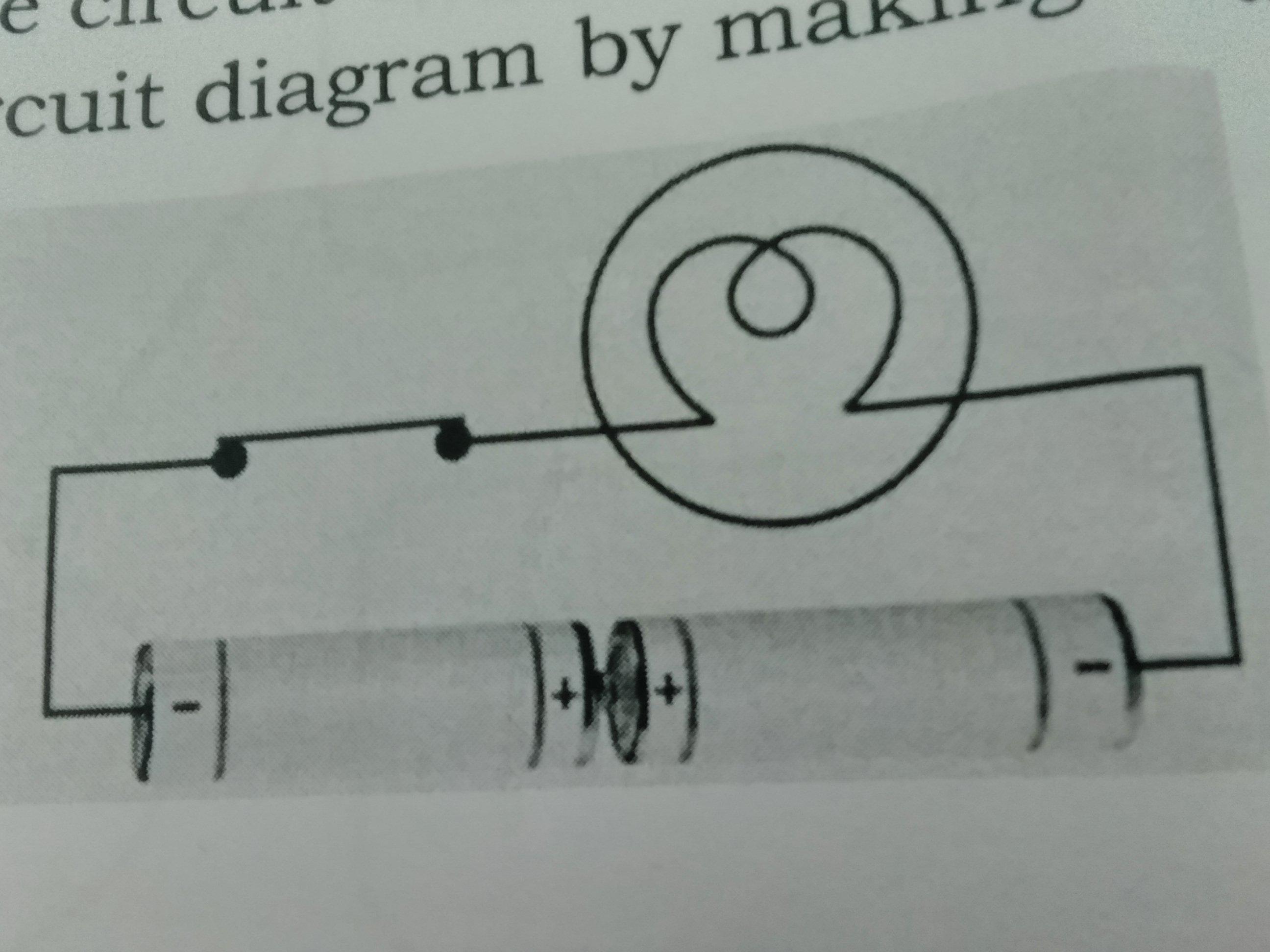

The bulb in the circuit shown in figure does not glow. Why? Redraw the circuit diagram by making necessary change in it so that

Question

eimsori [14]

3 years ago

6

The bulb in the circuit shown in figure does not glow. Why? Redraw the circuit diagram by making necessary change in it so that

the bulb glows.

Physics

1 answer:

lisov135 [29] · Answer 1 · 2022-04-08T06:09:04+03:00

Answer:The bulb did not glow as the switch is not turned on which obstructs electric current to flow through it. Also, the battery in the figure has both terminals as positive. It should be one negative terminal and one positive terminal.Redrawn diagram is also given

Please MARK AS BRAINLIEST AND FOLLOW ME.
