dexar [7]
3 years ago
6

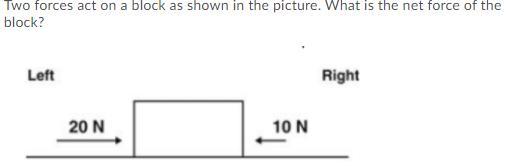

Two forces act on a block as shown in the picture. What is the net force of the block?

Physics
1 answer:
frozen [14]3 years ago
7 0

Answer:

10 N to the left.

Explanation:

Since the forces are acting in opposite directions, you need to calculate the difference.

20 N - 10 N = 10 N

More force is being exerted to the left. Therefore, the net force is 10 N to the left.

You might be interested in
A centrifuge has an angular velocity of 3,000 rpm, what is the acceleration (in unit of the earth gravity) at a point with a rad
Anna71 [15]

Answer:

a_{r} = 1006.382g \,\frac{m}{s^{2}}

Explanation:

Let suppose that centrifuge is rotating at constant angular speed, which means that resultant acceleration is equal to radial acceleration at given radius, whose formula is:

a_{r} = \omega^{2}\cdot R

Where:

\omega - Angular speed, measured in radians per second.

R - Radius of rotation, measured in meters.

The angular speed is first determined:

\omega = \frac{\pi}{30}\cdot \dot n

Where \dot n is the angular speed, measured in revolutions per minute.

If \dot n = 3000\,rpm, the angular speed measured in radians per second is:

\omega = \frac{\pi}{30}\cdot (3000\,rpm)

\omega \approx 314.159\,\frac{rad}{s}

Now, if \omega = 314.159\,\frac{rad}{s} and R = 0.1\,m, the resultant acceleration is then:

a_{r} = \left(314.159\,\frac{rad}{s} \right)^{2}\cdot (0.1\,m)

a_{r} = 9869.588\,\frac{m}{s^{2}}

If gravitational acceleration is equal to 9.807 meters per square second, then the radial acceleration is equivalent to 1006.382 times the gravitational acceleration. That is:

a_{r} = 1006.382g \,\frac{m}{s^{2}}

6 0
3 years ago
What does 9.8 m/s/s have to do with acceleration?
ruslelena [56]

9.8 is the gravitational field strength on earth, perhaps re-read the question

6 0
3 years ago
Read 2 more answers
Please help I'll give brainliest!!
Advocard [28]

Answer:

sound energy is form of mechanical energy.Sound travels as waves of energy, but, unlike light, the waves transmit energy by changing the motion of particles. ... That means that each individual particle is only moving a short distance.

8 0
3 years ago
Current cannot flow through a circuit when the switch is _____.
Akimi4 [234]

Answer:

Open

Closed

Explanation:

An open circuit is an electrical circuit in which the electric current does not circulate because it is interrupted or not communicated by means of an electrical conductor. While in a closed circuit, the current, that is the flow of electrons, travels from the beginning of the circuit to the end.

4 0
3 years ago
Read 2 more answers
After landing on an unfamiliar planet, a space explorer constructs a simple pendulum of length 48.0 cm . The explorer finds that
Ber [7]

Answer:

g = 12.22 m/s²

Explanation:

The time period of this pendulum is given as follows:

T = \frac{time\ taken}{no. of cycles}\\\\T = \frac{144\ s}{93}\\\\T = 1.55\ s

but the formula for the time period of a simple pendulum is as follows:

T=2\pi \sqrt{\frac{l}{g}}\\

where,

L = length of pednulum = 48 cm = 0.48 m

g = magnitude of th gravitational acceleration on this planet = ?

Therefore,

1.55\ s=2\pi \sqrt{\frac{0.48\ m}{g}}\\\\\sqrt{g} = 2\pi \sqrt{\frac{0.48\ m}{1.55\ s}}\\\\g = 3.49^{2}\\

<u>g = 12.22 m/s²</u>

6 0
3 years ago
