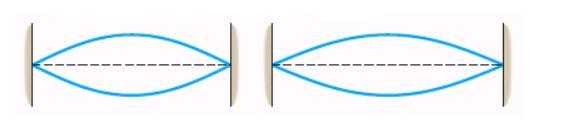

Standing waves are set up on two strings fixed at each end, as shown in the drawing. The two strings have the same tension and m

ass per unit length, but they differ in length by 0.58 cm. The waves on the shorter string propagate with a speed of 41.9 m/s, and the fundamental frequency of the shorter string is 225 Hz. Determine the beat frequency produced by the two standing waves.

Physics
1 answer:
uysha [10]3 years ago
8 0

The beat frequency produced by the two standing waves is 13 Hz.

<h3>The wavelength of the shorter string</h3>

The wavelength of the shorter string is calculated as follows;

L = \frac{\lambda}{2} \\\\\lambda = 2L\\\\\lambda = \frac{v}{f} \\\\\lambda = \frac{41.9}{225} \\\\\lambda = 0.186 \ m\\\\\lambda = 18.6 \ cm\\\\L= \frac{\lambda }{2} \\\\L = \frac{18.6 \ cm}{2} = 9.3\ cm

<h3>The length of the longer string</h3>

L_2 = 0.58 \ cm \ + 9.3 \ cm\\\\L_2 = 9.88 \ cm \\\\\lambda _2 = 2L_2\\\\\lambda _2 = 2(9.88 \ cm)\\\\\lambda_2 = 19.76 \ cm = 0.1976 \ m

The frequency of the longer string is calculated as follows;

v_1 = v_2\\\\f_2 = \frac{v_2}{\lambda_2} \\\\f_2 = \frac{41.9}{0.1976} \\\\f_2 = 212 \ Hz

<h3>Beat frequency</h3>

The beat frequency produced by the two standing waves is calculated as follows;

F_b = 225 \ Hz \ - \ 212 \ Hz\\\\F_b = 13 \ Hz

Learn more about beat frequency here: brainly.com/question/3086912

You might be interested in
Find the velocity and distance travelled of a car that is accelerating at 3 m/s2 for 4 seconds.
marta [7]

Explanation:

Given:

v₀ = 0 m/s

a = 3 m/s²

t = 4 s

Find: Δx and v

Δx = v₀ t + ½ at²

Δx = (0 m/s) (4 s) + ½ (3 m/s²) (4 s)²

Δx = 24 m

v = at + v₀

v = (3 m/s²) (4 s) + 0 m/s

v = 12 m/s

6 0
3 years ago
The vertical component of the projectile motion of an object depends on which of these? initial velocity or angel of trajectory
SVEN [57.7K]
It depends on both of them.

In fact, the projectile begins its motion with an initial velocity of v_0 and an angle of \alpha. On the y-axis (vertical direction), it is an accelerated motion with acceleration equal to -g (gravitational acceleration). The vertical velocity of the projectile at any time t is given by
v_y (t) = v_0 sin \alpha + gt
and as it can be seen, this depends on both initial velocity and angle.
3 0
3 years ago
A pendulum
RSB [31]

Explanation:

The time period rotation of the bob is t and the tension in the thread is T. ... A simple pendulum of length. ... Balancing the forces in Horizontal and vertical direction: ... Circular motion 2.

1 answer

8 0
3 years ago
Figure 21.62 shows a box on whose surfaces the electric field is measured to be horizontal and to the right. On the left face (3
natima [27]

(a) The electric flux on left face is 0.24 Vm and on the right face is 1 Vm.

(b) The total flux is 1.24 Vm.

(c) The total amount of charge that is inside the box is  1.1 x 10⁻¹¹ C.

<h3>Area of the left face</h3>

The area of the left face is calculated as follows;

A1 = 0.03 m x 0.02 m = 0.0006 m²

<h3>Electric flux on the left face</h3>

Ф1 = EA1

Ф1 = (400 V/m)( 0.0006 m²) = 0.24 Vm

Let the dimension of the right face = 5 cm by 2 cm

<h3>Area of the right face</h3>

A2 = 0.05 m x 0.02 m = 0.001 m²

<h3>Electric flux on the right face</h3>

Ф2 = EA2

Ф2 = (1000 V/m)( 0.001 m²) = 1 Vm

<h3>Total flux</h3>

Ф = Ф1 + Ф2

Ф = 0.24 Vm + 1 Vm = 1.24 Vm

<h3>Total charge inside the box</h3>

Ф = Q/ε

Q = εФ

Q = (8.85 x 10⁻¹²)(1.24)

Q = 1.1 x 10⁻¹¹ C

Thus, the electric flux on left face is 0.24 Vm and on the right face is 1 Vm.

The total flux is 1.24 Vm and the total amount of charge that is inside the box is  1.1 x 10⁻¹¹ C.

Learn more about total flux here: brainly.com/question/26289097

#SPJ1

7 0
2 years ago
Apakah yang berlaku kepada kekuatan medan magnet jika satu lagi sel kering 1.5 v ditambahkan​
ad-work [718]

Answer:

The magnetic field is doubled.

Explanation:

What happens to the strength of the magnetic field if one more 1.5 v dry cell is added?

The magnetic field due to a current carrying conductor is directly proportional to the current flowing in the wire.

If we connect one more battery of 1.5 V so the voltage is doubled and according to the Ohm's law, as the resistance of wire is constant, so the current in the wire is also doubled.

When the current doubles, the magnetic field produced by the wire is also  doubled.

8 0
3 years ago
