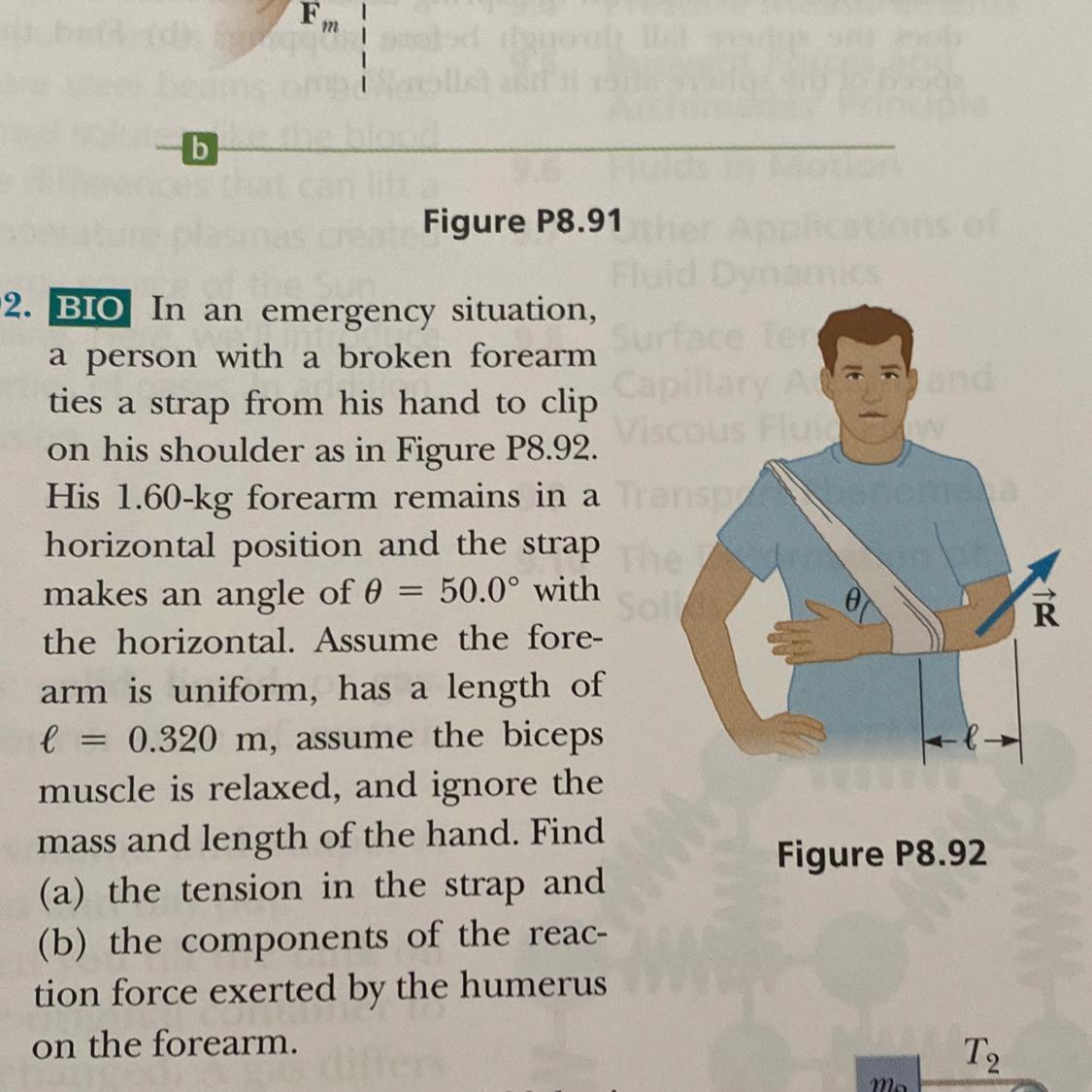

92.BIO In an emergency situation,

Physics
1 answer:
mojhsa [17]2 years ago
6 0

Based on the principle of equilibrium of forces:

  • the tension T, in the strap is 10.2 N
  • thehorizontal component of the reaction, Rx is 6.56 N
  • thevertical component of the reactionary force, Ry is 7.84 N

<h3>What is tension?</h3>

Tension is a type of force that is transmitted through a flexible medium such as a cable, wire or string pulled tight by forces acting from opposite ends.

The tension in the strap is calculated as follows:

Taking sum of moments from the right end as equal to zero:

mg × l/2 = Tsinθ × l

T = mg/2sinθ

T = 1.60 × 9.8 / 2 sin 50°

T = 10.2 N

Calculating the components of the reac-

reac-tionary force:

  • Horizontal component is Rx
  • Vertical component is Ry

From Newton's third law:

Rx = Tcosθ

Rx = 10.2 × cos 50°

Rx = 6.56 N

Ry - Tsinθ = 0

Ry = Tsinθ

where;

T = mg/2sinθ

Ry = mgsinθ/2sinθ

Ry = mg/2

Ry = 7.84 N

Learn more about tension at: brainly.com/question/24994188

You might be interested in
A flat, 181 ‑turn, current‑carrying loop is immersed in a uniform magnetic field. The area of the loop is 4.97 cm2 and the angle
Sidana [21]

Answer:

B = 0.135T

Explanation:

To find the magnitude of the magnetic field you use the following formula, for the torque produced by a magnetic field B in a loop:

\tau=NIABsin\theta   (1)

τ: torque = 1.51*10^-5 Nm

I: current = 2.47mA = 2.47*10^-3 A

B: magnitude of the magnetic field

A: area of the loop = 4.97cm^2 = 4.97(10^-2m)^2=4.97*10^-4m^2

N: turns = 181

θ: angle between B and the magnetic dipole (same as the direction  of the normal to the plane)

You replace the values of the parameters in (1). Furthermore you do B the subject of the formula:

B=\frac{\tau}{NIAsin\tetha}=\frac{1.51*10^{-5}Nm}{(181)(2.47*10^{-3}A)(4.97*10^{-4}m^2)(sin30.1\°)}=0.135T

3 0
3 years ago
The density of water is 10*3 kg/m*3. the water pressure on a submarine is 2.0 x 10*7 N/m*2. The depth of the submarine below the
Marat540 [252]

Answer:

2000metres

Explanation:

Pressure= density x height x gravity

Gravity is always a constant = 10N/kg

so height= Pressure/( density x gravity)

h= 20000000/(1000 x10)

h= 2000 metres

8 0
3 years ago
Viggo needs to take an extended leave of absence from work for personal reasons. The remaining employees are required to perform
Romashka-Z-Leto [24]

Answer:

The answer is C. Resistance

Explanation:

Viggo needs to take an extended leave of absence from work for personal reasons. The remaining employees are required to perform Viggo’s duties, and Dewitt is the only one who understands how to do many of them. Though Dewitt’s body is unable to maintain the alarmed state it entered when he learned of the additional work, he remains stressed out over the weeks that follow. He hopes Viggo will return before he becomes truly overwhelmed. Dewitt is in the RESISTANCE stage of the general adaptation syndrome (GAS).

4 0
3 years ago
An ant crawls along a sidewalk with a velocity of 0.1 m/s in a direction that is 45 degrees relative to the edge of sidewalk. If
alekssr [168]
First draw a diagram (see attached picture).

We know the any traveled 1 m away from the sidewalk, and since we have a 45-45-90 triangle we know that the horizontal distance traveled is also 1 m. Use a^2+ b^2 = c^2 to find the distance the ant traveled. We get sqrt(2).

V=displacement/time
So 0.1 = sqrt(2) / t
Solve for the to get sqrt(2)/0.1 = 14.14 seconds.

5 0
3 years ago
Many fungi are decomposers. true or false ?
timama [110]
Answer is: True.
Fungi are members of the group of eukaryotic organisms. Fungi, kingdom (biology), are separate from the other eukaryotic kingdoms (animals and plants). <span>Fungi can not </span>photosynthesise, they are heterotrophs (<span>absorbs </span>organic carbon).  Fungi are primary decomposers (<span>analyse dead or decaying organisms).</span>
4 0
3 years ago
