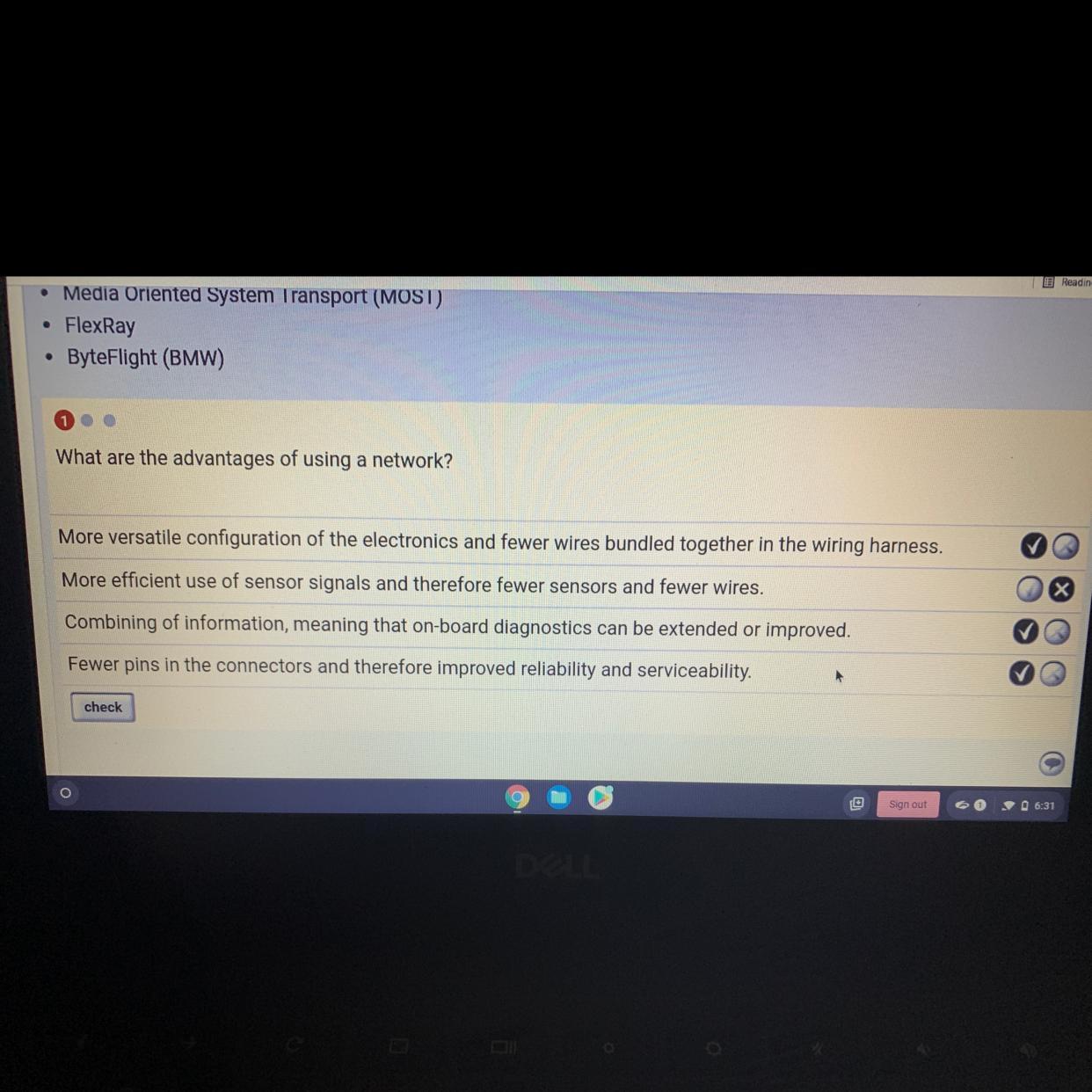

What are the advantages of using a network?

Engineering

1 answer:

Rudiy273 years ago

5 0

Answer:

Sharing devices such as printers saves money.

Site (software) licences are likely to be cheaper than buying several standalone licences.

Files can easily be shared between users.

Network users can communicate by email and instant messenger.

Security is good - users cannot see other users' files unlike on stand-alone machines.

Data is easy to backup as all the data is stored on the file server.

I hope I helped

You might be interested in

Three parallel three-phase loads are supplied from a 480V (line-line RMS), 60 Hz three-phase supply. The loads are as follows: L

Travka [436]

Answer:

The total system active power P = P_1 + P_2 + P_3 = 34.91 KW

Explanation:

Load 1: Active power P_1 = 20 HP = 14.91kW;

Reactive power $Q1 = P tan(\phi)$

$= 14.91\times tan(cos^{-}0.8) = 11.18 kvar
$

Load 2: Active power P_2 = 20 kW;

Reactive power Q2 = 0 since the load is purely resistive.

Load 3: Active power $P_3$ = 0 due to purely capacitiveload

Reactive power $Q_3$ = -20 Var

a) since all three loads are connected in parallel therefore

The total system active power P = P_1 + P_2 + P_3 = 34.91 KW

Total system reactive power Q = Q_1 + Q_2 + Q_3 = 11.18 + 0 -20 = -8.82 kVar

Since Q = 0, the power factor is unity.

Supply current per phase is given by

$I = \frac{P}{\sqrt{3}V_{L}}$

$= \frac{34910}{\sqrt{3}\times 480} = 41.99 A$

5 0

3 years ago

A permanent magnet DC motor has an armature resistance of 0.5 Ω and when a voltage of 120 V is applied to the motor it reaches a

BaLLatris [955]

Answer:

12 N-m

Explanation:

The dc motor is operating at 24 V that is its terminal voltage V =24 V

Armature resistance = 0.2 ohm

No load speed = 240 radian /sec

For motor we know that as the motor is on no load so so

Power developed in the motor

Now we know that power = torque× angular speed

3 0

4 years ago

Thermal energy storage systems commonly involve a packed bed of solid spheres, through which a hot gas flows if the system is be

hammer [34]

Answer:

A) i) 984.32 sec

ii) 272.497° C

B) It has an advantage

C) attached below

Explanation:

Given data :

P = 2700 Kg/m^3

c = 950 J/kg*k

k = 240 W/m*K

Temp at which gas enters the storage unit = 300° C

Ti ( initial temp of sphere ) = 25°C

convection heat transfer coefficient ( h ) = 75 W/m^2*k

A) Determine how long it takes a sphere near the inlet of the system to accumulate 90% of the maximum possible energy and the corresponding temperature at the center of sphere

First step determine the Biot Number

characteristic length( Lc ) = ro / 3 = 0.0375 / 3 = 0.0125

Biot number ( Bi ) = hLc / k = (75)*(0.0125) / 40 = 3.906*10^-3

Given that the value of the Biot number is less than 0.01 we will apply the lumped capacitance method

attached below is a detailed solution of the given problem

B) The physical properties are copper

Pcu = 8900kg/m^3)

Cp.cu = 380 J/kg.k

It has an advantage over Aluminum

C) Determine how long it takes a sphere near the inlet of the system to accumulate 90% of the maximum possible energy and the corresponding temperature at the center of sphere

Given that:

P = 2200 Kg/m^3

c = 840 J/kg*k

k = 1.4 W/m*K
