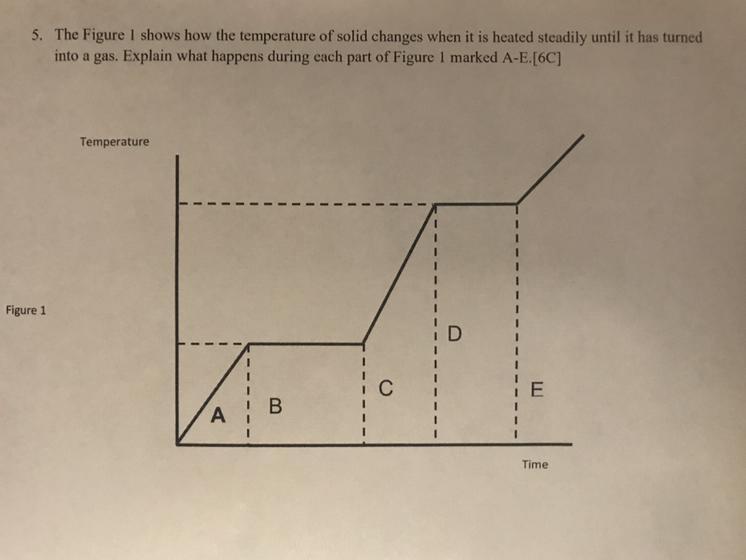

Hi I need help with the question in the image, step by step. ASAP!, thank you.

Physics

1 answer:

sergeinik [125]2 years ago

7 0

The heating curve is a representation of temperature change for a body with time as shown on cartesian axes.

<h3>What is a heating curve?</h3>

The heating curve is a representation of temperature change for a body with time as shown on cartesian axes.

The point A represents the steady increase in the temperature of the solid. The point B shows the point of fusion, at this point, the solid is transformed into liquid. The point C shows the temperature rise with time as the liquid is heated. The point D shows the process of vaporization which converts the liquid to gas. The point E shows when the substance now exists in the gas phase.

Learn kore about heating curve:brainly.com/question/10481356

#SPJ1
