Draw Lewis structures for the following molecules. Clearly label each center atom, then identify the molecular geometry for each

Question

barxatty [35]

3 years ago

11

Draw Lewis structures for the following molecules. Clearly label each center atom, then identify the molecular geometry for each

center atom. Select all the appropriate molecular geometries for the center atoms in the following molecule. C(CH2)2

Chemistry

1 answer:

Norma-Jean [14] · Answer 1 · 2022-02-26T17:34:56+03:00

Answer:

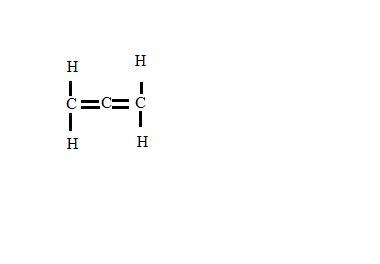

The Lewis structure is shown below.

Explanation:

In the molecule given, the central atom is the carbon (C), which must do 4 bonds. The other carbons at the molecule must do 4 bonds too, and the hydrogens must do only one bond. So, the central atom does a double bond with each carbon, and each carbon does a single bond with the two hydrogens they're bonded.

After the bonds, the central carbon has no lone pairs of electrons, so the geometry of the molecule must be linear, as shown below.
