MIDTERM

1 answer:

3 0

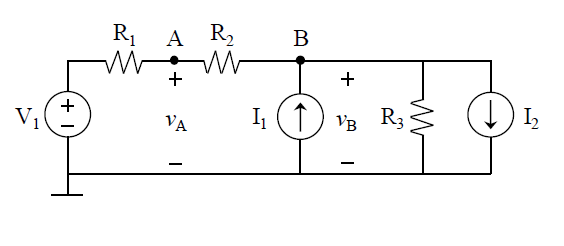

Loop law for v1, r1, r2, r3
lv1 = current from v1
Ir3 = current pass r3
- v1 + Iv1(r1) + Iv1(r2) + Ir3(r3) = 0
-5 + Iv1(200) + Iv1(200) + Ir3(100) = 0
400Iv1 = 5 - 100Ir3 ...(1)

current law at B
Iv1 + I1 - Ir3 - I2 = 0
Iv1 + 0.001 - Ir3 - 0.005 = 0
Iv1 = Ir3 + 0.004 ...(2)

solve by using (1),(2)
Ir3=0.0068A, Iv1=0.108A

Vb = Ir3(r3) = 0.0068(100) = 0.68V

Va = Vb + Iv1(r2) = 0.68 + 0.0108(200) = 0.68 + 2.16 = 2.84V

power = I^2(r)

You might be interested in

Please help with #8... Thanks in advance

schepotkina [342]

If the acceleration is constant, and the starting velocity is zero, the relationship between the acceleration of a falling body (a), the time it takes to fall (t), and instantaneous velocity when it hits the ground (v) is:

the general equation of acceleration is:

vf = vi + at

assuming the initial velocity (vi) is zero, the equation becomes:

vf = at

v = at

6 0

3 years ago

3) A bird flies toward a tree limb at a 45-degree angle to the ground along a path that is 50 m long landing on the limb. Determ

marin [14]

Answer:

35 m

Explanation:

Given :

The distance of the path from the ground to the tree limb = 50 m

The angle between the path of flight of the bird towards the tree limb and the ground = 45 degrees

Therefore we can determine the height above which the bird perched above the ground by using the rules of the trigonometric ratios as;

We know that ,
