A defrost heater is integrated with the sun roof glass in order to prevent ice from forming. The sun roof begins at L1 = 0.3 m f

rom the front of the roof and extends to L2 = 0.6 m. The roof is W = 1.2 m wide. The car is driving at u[infinity] = 10 m/s through air at T[infinity] = -15°C. Assume that the properties of the air are conductivity k = 0.023 W/m-K, density  = 1.3 kg/m3 , viscosity  = 1.65x10-5 Pa-s, and specific heat capacity c = 1003 J/kg-K. The defrost heater is a thin sheet of electrically resistive material that covers the entire sun roof and transfers a uniform heat flux to the glass. The convection coefficient between the interior surface of the roof and the cabin air is sufficiently low that convection heat transfer with the interior can be neglected. Assume that the flow over the roof remains laminar. Do not use a correlation to solve this problem; instead, use your conceptual knowledge of boundary layer behavior to estimate the answers

Engineering
1 answer:
zvonat [6]4 years ago
8 0

Answer:

a) 119.75 w

b) 14.9⁰C

Explanation:

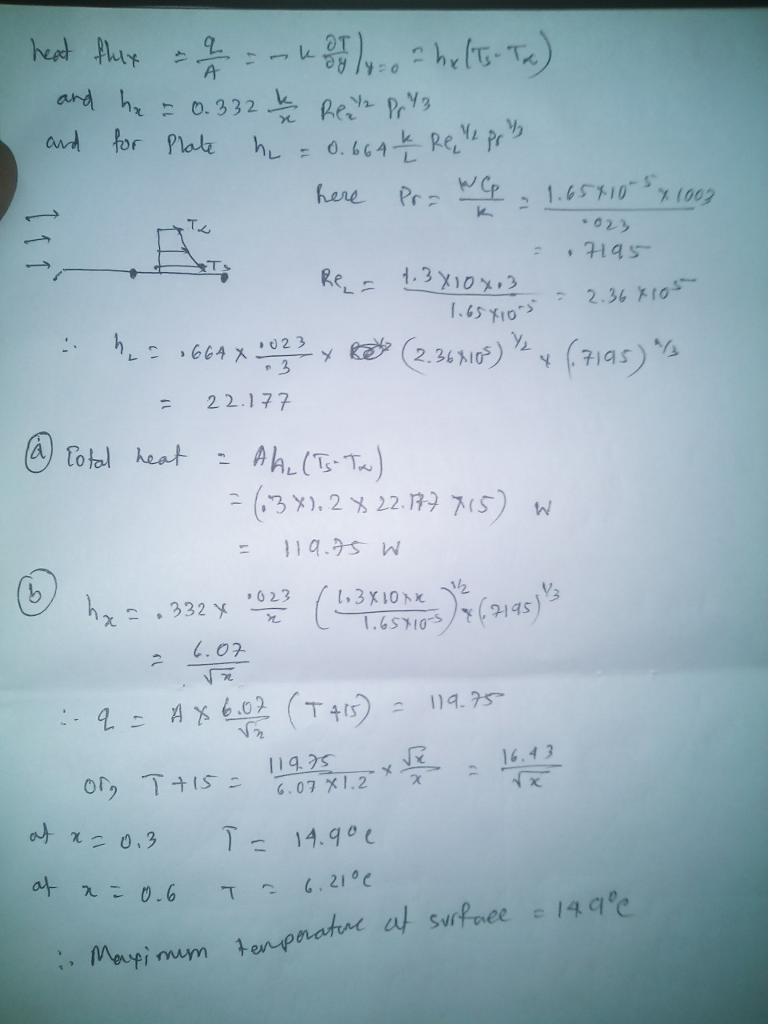

See attached Image

You might be interested in
A polyethylene rod exactly 10 inches long with a cross-sectional area of 0.04 in2 is used to suspend a weight of 358 lbs-f (poun
Nadya [2.5K]

Answer:

Final length of the rod = 13.90 in

Explanation:

Cross Sectional Area of the polythene rod, A = 0.04 in²

Original length of the polythene rod, l = 10 inches

Tensile modulus for the polymer, E = 25,000 psi

Viscosity, \eta = 1*10^{9} psi -sec

Weight = 358 lbs - f

time, t = 1 hr = 3600 sec

Stress is given by:

\sigma = \frac{Force}{Area} \\\sigma = \frac{358}{0.04} \\\sigma = 8950 psi

Based on Maxwell's equation, the strain is given by:

strain = \sigma ( \frac{1}{E} + \frac{t}{\eta} )\\Strain = 8950 ( \frac{1}{25000} + \frac{3600}{10^{9} } )\\Strain = 0.39022

Strain = Extension/(original Length)

0.39022 = Extension/10

Extension = 0.39022 * 10

Extension = 3.9022 in

Extension = Final length - Original length

3.9022 =  Final length - 10

Final length = 10 + 3.9022

Final length = 13.9022 in

Final length = 13.90 in

7 0
3 years ago
The initial velocity of a servo motor is 450 rpm, and the gear ratio of the gears in the motor is 2/5. What is the new velocity
aksik [14]

Answer:

Depending on the amount of torque that is put in the motor, the new velocity is 550 rpm.

7 0
3 years ago
This question allows you to practice proving a language is non-regular via the Pumping Lemma. Using the Pumping Lemma (Theorem 1
Ulleksa [173]

Answer:

<em>L is not a regular language with formal proofs  </em>

Explanation:

<em>(a) To prove that L is not a regular language, we will use a proof by contradiction. the assumption entails  that L is a regular language. Then by the Pumping Lemma for Regular Languages, </em>

<em>there exists a pumping length p for L such that for any string s ∈ L where |s| ≥ p, </em>

<em>s = xyz subject to the following conditions: </em>

<em>(a) |y| > 0 </em>

<em>(b) |xy| ≤ p, and </em>

<em>(c) ∀i > 0, xyi </em>

<em>z ∈ L</em>

<em />

<em>(b) To determine that L is not a regular language, we mke use of proof by contradiction.  lets assume, that L is regular. Then by the Pumping Lemma for Regular Languages, it states also,</em>

<em>The pumping length, p for L such that for any string s ∈ L where |s| ≥ p, s = xyz subject  to the condtions as follows : </em>

<em>(a) |y| > 0 </em>

<em>(b) |xy| ≤ p, and </em>

<em>(c) ∀i > 0, xyi </em>

<em>z ∈ L. </em>

<em>Choose s = 0p10p </em>

<em>. Clearly, |s| ≥ p and s ∈ L. By condition (b) above, it follows is shown. by the first condition x and y are zeros.</em>

<em>for some  k > 0. Per (c), we can take i = 0 and the resulting string will still be in L. Thus,  xy0 </em>

<em>z should be in L. xy0 </em>

<em>z = xz = 0(p−k)10p </em>

<em>It is shown that is is  not in L. This is a  contraption with the pumping lemma.  our assumption that L is regular is  incorrect, and L is not a regular language</em>

6 0
3 years ago
It has a piece of 1045 steel with the following dimensions, length of 80 cm, width of 30 cm, and a height of 15 cm. In this piec
Serggg [28]

Answer:

material remove in 3 min is 16790.4 mm³/s

Explanation:

given data

length L = 80 cm = 800 mm

width W = 30 cm

height H = 15 cm

make grove length = 80 cm

width = 8 cm

depth = 10 cm

mill toll diameter = 4 mm

axial cutting depth = 20 mm

to find out

How much material removed in 3 minutes

solution

first we find time taken for length of advance that is

time = \frac{length}{advance}

here advance is given as 0.001166 mts / sec

so  time = \frac{800}}{0.001166*1000}

time = 686.106 seconds

now we find material remove rate that is

remove rate = mill toll rate × axial cutting depth × advance

remove rate = 4 × 20×0.001166 ×1000

remove rate = 93.28 mm³/s

so

material remove in 3 minute = 3 × 60 = 180 sec

so material remove in 3 min = 180 × 93.28

material remove in 3 min is 16790.4 mm³/s

7 0
3 years ago

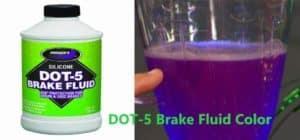

What color is dot 5 brake fluid
SOVA2 [1]

Answer:

A Purplish-Blueish color.

Explanation:

7 0
3 years ago
