All categories

3 years ago

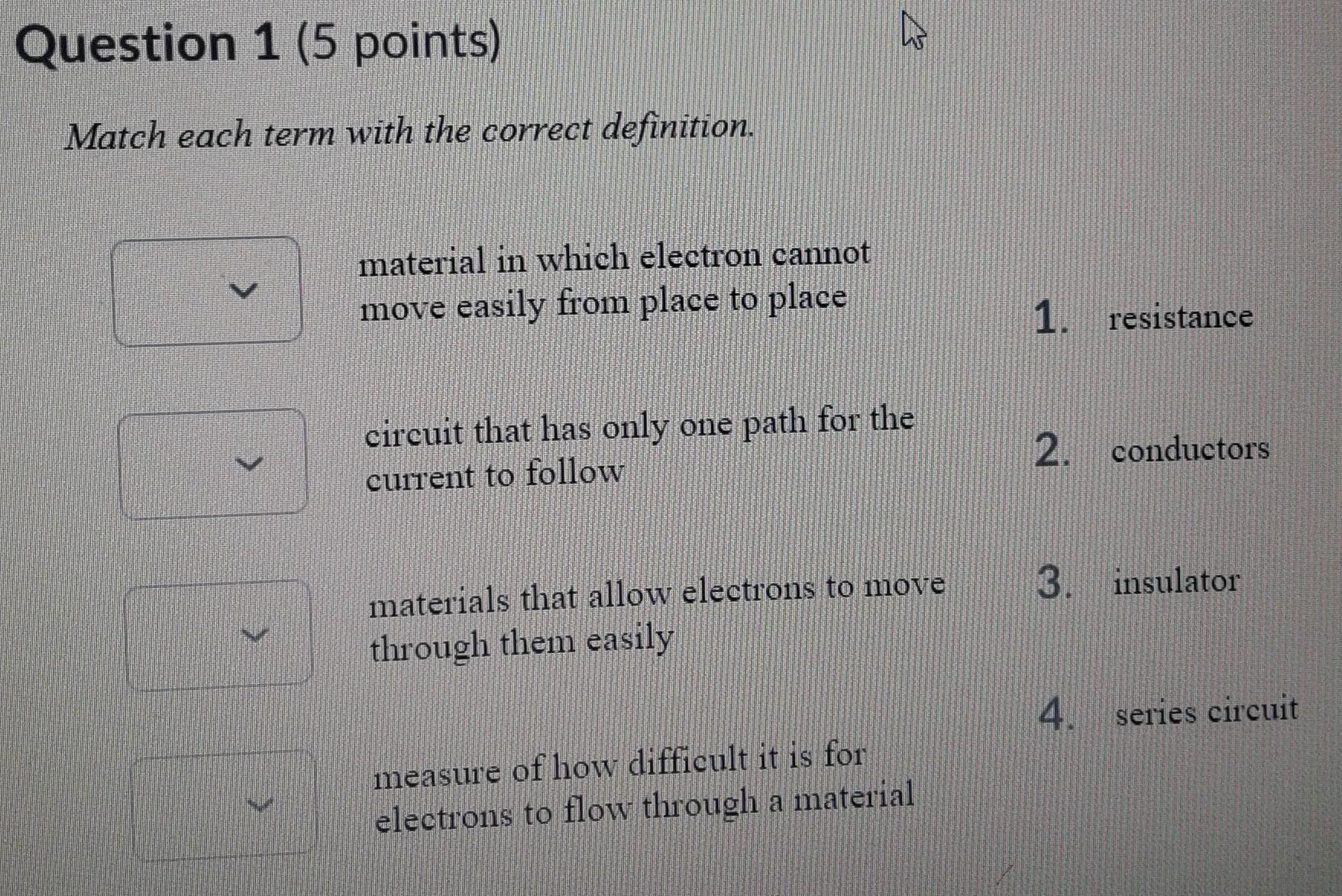

Please help asap. thank you !!

Physics

1 answer:

kogti [31]3 years ago

3 0

Answer:

Explanation:

insulators do not let their valance (out side elections) move about easily.

series circuits provide only 1 path for the electrons to travel.

Conductors allow their outside electrons to travel easily.

Imagine yourself in a wresting match. Your opponent only allows you to move if he lets you. That what resistance is.

Answers

1. insulators

2. Series circuits

3. conductors

4. resistance

In that order.

You might be interested in

The train traveled 500 kilometers north to Odessa in 2 hours . What’s the train’s speed ? What is the velocity ?

ElenaW [278]

Explanation:

Speed is distance over time.

500 km / 2 hr = 250 km/hr

Velocity is speed and direction.

250 km/hr north

7 0

3 years ago

Saturn orbits the Sun at a radius of about 1.4×109 km. At this distance the force of gravity on Saturn due to the Sun is 3.7×102

Afina-wow [57]

Explanation:Saturn is the second largest planet of the solar system in mass and size and the sixth nearest planet in distance to the Sun.

In the night sky Saturn is easily visible to the unaided eye as a non twinkling point of light.

8 0

3 years ago

A 10 kg box slides down a lane inclined at an angle θ = 30 . The plane has a friction of coefficient 0.1. The box starts from th

g100num [7]

Answer:

The distance the box traveled down the plane is 19.28 m

Explanation:

The angle of repose, α, is given by the relation;

tan⁻¹(μ) = α

tan⁻¹(0.1) = 5.7°

Therefore, we have;

M·g·sin(θ) - μ·N = M·a

Where:

M = Mass of the box = 10 kg

g = Acceleration due to gravity = 9.81 m/s²

θ = Angle of inclination of the plane = 30°°

μ = Coefficient of friction = 0.1

a = Acceleration of the box along the incline plane

N = Normal force due to the weight of the box = M·g·cos(θ)

10 × 9.81 × sin30 - 0.1 × 9.81 × cos(30) = 10 × a

48.2 = 10 ×a

a = 48.2/10 = 4.82 m/s²

The distance, s, traveled by the box is given by the relation;

s = u·t + 1/2×a·t²

Where:

u = Initial velocity = 0 m/s

t = Time of motion = 2.0 s

∴ s = 0×2 + 1/2 × 4.8 × 2² = 19.28 m

The box traveled 19.28 m down the plane.

6 0

3 years ago

This is the science of extremely small structures and is leading to advanced materials, devices and applications in energy, medi

miv72 [106K]

Answer:

Nanotechnology

Explanation:

is this for that crossword puzzle lol

3 0

4 years ago

Light of wavelength 550 nm falls on a

Brums [2.3K]

Answer:

The first diffraction maximum fringe will be at approximately 2.7 meters from the central maximum.

Explanation:

We can describe single slit diffraction phenomenon with the equation:

$a\sin\theta=m\lambda$ (1)

with θ the angular position of the minimum of order m respect the central maximum, a the slit width and λ the wavelength of the incident light. Because the distances between the first minima and the central maximum ( $y_{m}$ ) are small compared to the distance between the screen and the slit (x), we can approximate $\sin\theta\approx\tan\theta=\frac{y}{x}$ , using this on (1):

$a\frac{y_{m}}{x}=m\lambda$

solving for y

$y_{m}= \frac{mx\lambda}{a}$

Note that $y_{m}$ is the distance between a minimum and the central maximum but we need the position of a maximum not a minimum, here we can use the fact that a maximum is approximately between two minima, so the first diffraction maximum fringe is between the minima of order 1 and 2, so we should find $y_{1}$ , $y_{2}$ add them and divide by two:
