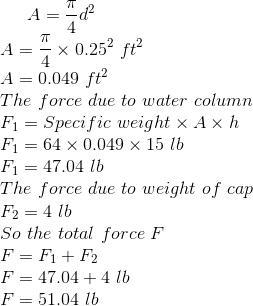

A stainless steel cap covers a drain in the dolphin tank which is 15 ft deep. The diameter of the hole is 3 in and the cap and w
ire weigh 4 lb. The specific weight of salt water is 64 lb/ft3. What is the hydrostatic pressure from the water on the cap?
1 answer:
You might be interested in
Answer:
y ≈ 2.5
Explanation:
Given data:
bottom width is 3 m
side slope is 1:2
discharge is 10 m^3/s
slope is 0.004
manning roughness coefficient is 0.015
manning equation is written as
where R is hydraulic radius
S = bed slope
P is perimeter
solving for y
solving for y value by using iteration method ,we get
y ≈ 2.5
Answer:
Tso = 28.15°C
Explanation:
given data
t2 = 21 mm
ki = 0.026 W/m K
t1 = 9 mm
kp = 180 W/m K
length of the roof is L = 13 m
net solar radiation into the roof = 107 W/m²
temperature of the inner surface Ts,i = -4°C
air temperature is T[infinity] = 29°C
convective heat transfer coefficient h = 47 W/m² K
solution
As when energy on the outer surface at roof of a refrigerated truck that is balance as
Q = .....................1
Q = .....................2
now we compare both equation 1 and 2 and put here value
solve it and we get
Tso = 28.153113
so Tso = 28.15°C
