Design a PD compensator for the following system to reduce the settling time by a factor of 4 while continuing to operate the sy
stem with a 20.5% overshoot. State your final compensator and gain. What can you say about a 2nd order approximation. Simulate the uncompensated and compensated step response:
1 answer:
Answer:

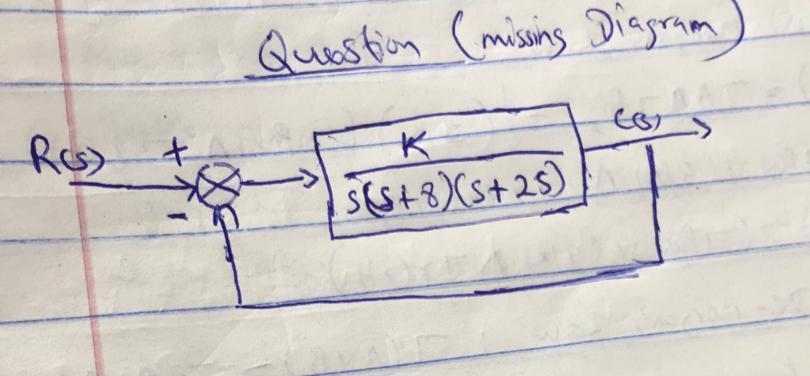

Hello your question lacks the required diagram attached below is the missing diagram
final compensator = k ( s + 9.3731 )
gain = 695.4275
Explanation:
attached below is the remaining part of the detailed solution of the question
C(s) = The dominant poles fn 20.5% are at Sd = -2.91 + 5.77 J
uncompensated system setting time (ts) = 4/2.91 = 1.3746
