Question

Determine the number of bonding electrons and the number of nonbonding electrons in the structure of xef2. enter the number of bonding electrons followed by the number of nonbonding electrons, separated by a comma, in the dot structure of this molecule (e.g., 1,2. 2,9

Answer 1

Answer : The number of bonding electrons and the number of non-bonding electrons are (4, 18).

Explanation :

The number of bonding electrons and non-bonding electrons in the structure of $XeF_2$ is determined by the Lewis-dot structure.

Lewis-dot structure : It tell us about the number of valence electrons of an atom within a molecule and it is also shows the bonding between the atoms of a molecule and the lone-pair of electrons.

In the given structure, 'Xe' is the central atom and 'F' is the terminal atom.

Xenon has 8 valence electrons and fluorine has 7 valence electrons.

Total number of valence electrons in $XeF_2$ = 8 + 2(7) = 22 electrons

From the Lewis-dot structure, we conclude that

The number of electrons used in bonding = 4

The number of electrons used in non-bonding (lone-pairs) = 22 - 4 = 18

Therefore, the number of bonding electrons and the number of non-bonding electrons are (4, 18).

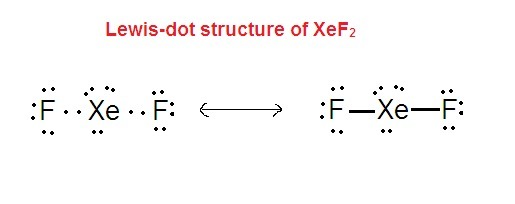

The Lewis-dot structure of $XeF_2$ is shown below.

Answer 2

The number of bonding electrons and the number of non-bonding electrons are$\boxed{(4,18)}$

Further explanation:

The Lewis structure is the chemical representation of an element along with the nonbonding pairs. For covalent molecules, the number of electrons involved in bonding and the remaining nonbonding pairs can be represented while writing the Lewis structures. Lewis structures along with the formal charges that they carry help predict the geometry, polarity, and reactivity of the molecules.

The central atom is usually the least electronegative atom other than hydrogen. Hence out of xenon and fluorine, the former will act as the central metal atom. So arrange the two atoms around the xenon. Next determine the number of valence electrons.

The total number of valence electrons of ${\text{Xe}}{{\text{F}}_2}$ is calculated as,

${\text{Total valence electrons}}=\left[{\left({\text{1}}\right)\left({{\text{Valence electrons of Xenon}}}\right){+}}\left(2\right)\left({{\text{Valence electrons of Fluorine}}}\right)}\right]$

Since xenon carries 8 valence electrons and fluorine carries 7 valence electrons. So, the valence electrons of ${\text{Xe}}{{\text{F}}_2}$is as follows:

$\begin{aligned}{\text{Total valence electrons}}\left( {{\text{TVE}}}\right)&=\left[{\left(1\right)\left(8\right)+\left(2\right)\left(7\right)}\right]\\&=22\\\end{aligned}$

The formal charge on an atom can be calculated as follows:

${\mathbf{Formal charge=}}\left[\begin{gathered}\left[\begin{gathered}{\mathbf{total number of valence electrons }}\hfill\\{\mathbf{in the free atom}}\hfill\\\end{gathered}\right]{\mathbf{}}-\\\left[{{\mathbf{total number of non - bonding electrons}}}\right]-\\\frac{{\left[{{\mathbf{total number of bonding electrons}}}\right]}}{{\mathbf{2}}}\\\end{gathered}\right]$

Both F forms one single bond respectively with a xenon atom. Both F has 3 lone pairs are present on it.

The total number of valence electrons in the free fluorine atom is 7.

The total number of nonbonding electrons or lone pairs in F is 6.

The total number of bonding electrons in F is 2.

Substitute these values in equation (1) to find the formal charge on F.

$\begin{aligned}{\text{Formal charge on F}&}=\left[{7-6-\frac{2}{2}}\right]\\=0\\\end{aligned}$

Both F has formal charge

Xe forms two single bonds and it possesses three lone pairs.

The total number of valence electrons in the free Xenon atom is 7.

The total number of nonbonding electrons or lone pairs in Xe is 6.

The total number of bonding electrons in Xe is 4.

Substitute these values in equation (1) to find the formal charge on Xe.

$\begin{aligned}{\text{Formal charge on Xe}}&=\left[{8-6-\frac{4}{2}}\right]\\&=2-2\\&=0\\\end{aligned}$

Out of 22 electron pairs, four electrons are involved in the two Xe-F bond. So now we are left with 18 electrons. These will constitute the non bonding (lone pairs). 3 electrons pairs are present on each fluorine atom and three pairs around xenon. (Refer to the attached image for the Lewis structure).

Therefore, the number of bonding electrons and the number of non-bonding electrons are (4, 18).
