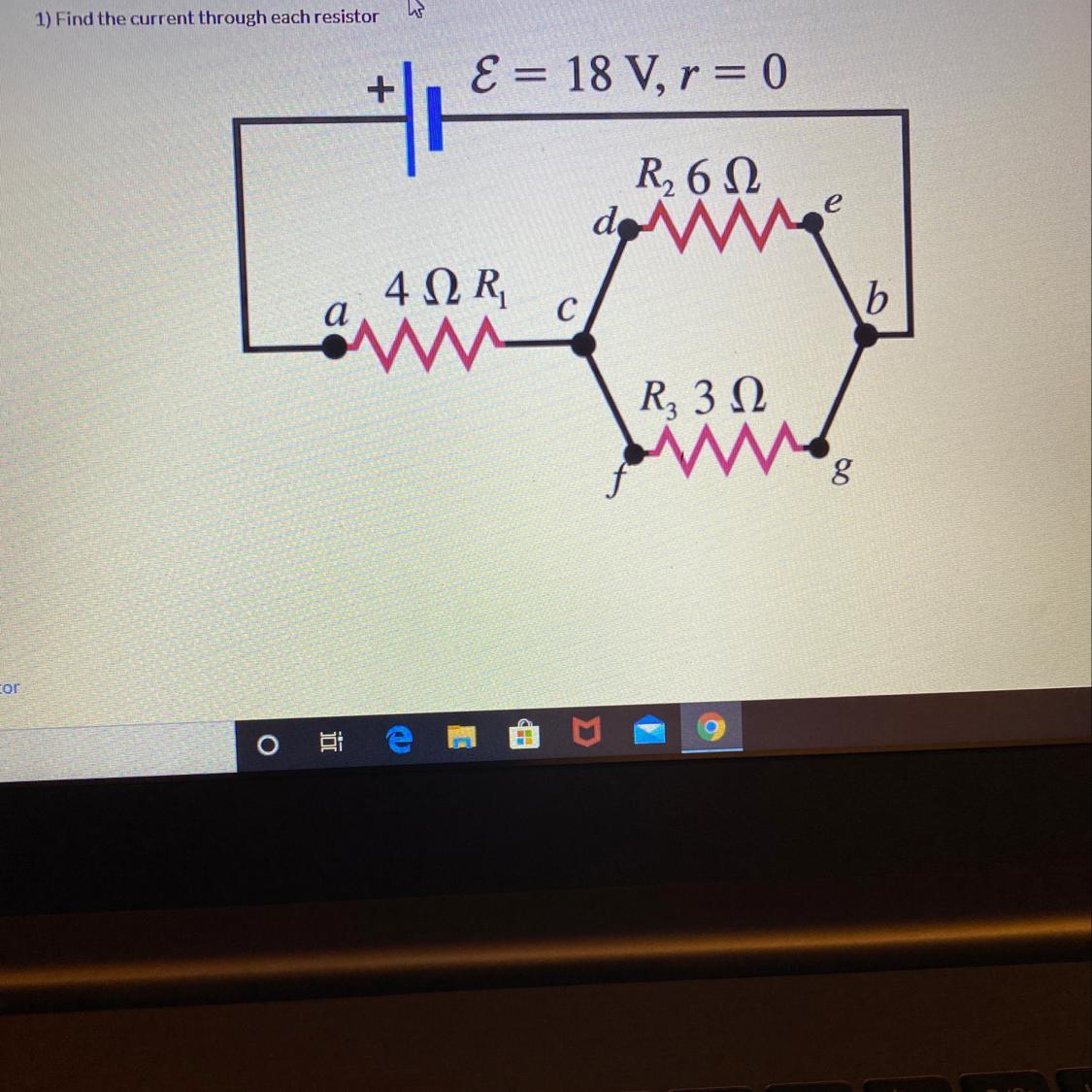

1) Find the current through each resistor PLEASE HELP!

Physics

1 answer:

Alex3 years ago

7 0

Answer:

3 Amperes

Explanation:

This is an example of a parallel and series resistor. The first set of resistors are in parallel(the 6 and 3 ohms).

The total resistance of these two resistors can be solved through the following formula:

$\frac{1}{R_{2} } +\frac{1}{R_{3} } =\frac{1}{R_{Equal} }$

*This is for any resistors in parallel

Plugging in the numbers, we find that an equivalent resistor has a resistance of 2 ohms. Adding this to the 4 ohms, we get that there a total of 6 ohms of resistance with the resistors in this circuit.

Using Ohms law:

I = V/R

I = 18 V/ 6 Ohms

I = 3 Amperes.
