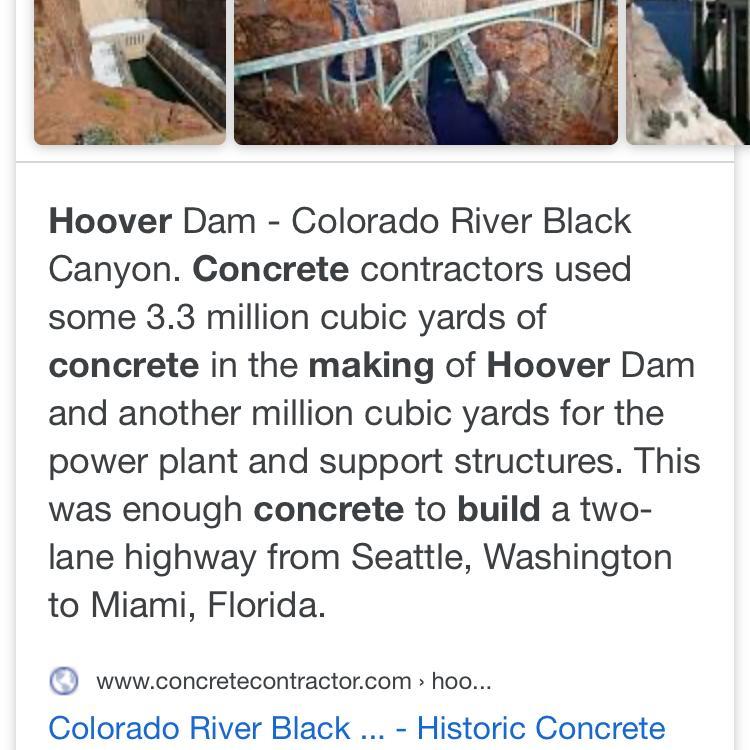

4) How much concrete was required to make the Hoover<br> Dam? Where did this concrete come from?

We can process oil into a lot of useful fuels to run our cars, trucks, and even airplanes. Oil is used for making lots of other

Ostrovityanka [42]

Answer:

Explanation:

Products of oil in our everyday life:

(1) Petro-Chemical Feedstock: These are by product of Refining of Oil which it is used extensively to make PET bottles, Paints, Polyester Shirts, Pocket combs e.t.c

(2) Asphalt : Used extensively to make Motor Road, highways

(3) Plastics : we use plastics in our everyday life, this is also a product of Refining of crude oil e.g PVC, Telephone casing, Tapes e.t.c

(4) Lubricating Oil/Grease : This is another product from crude oil Fractional Distillation.

(5) Propane/ Cooking Gas: This is also a product from oil which is used in our everyday life for cooking, grilling etc.

4 0

3 years ago

Two wastewater treatment plant workers (one male and one female) are exposed to hydrogen sulfide in confined spaces in the treat

Vlada [557]

Answer:

Go to explaination for the details of the answer.

Explanation:

In order to determine the lifetime (75 years) chronic daily exposure for each individual, we have to first state the terms of our equation:

CDI = Chronic Daily Intake

C= Chemical concentration

CR= Contact Rate

EFD= Exposure Frequency and Distribution

BW= Body Weight

AT = Average Time.

Having names our variables lets create the equations that will be used to derive our answers.

Please kindly check attachment for details of the answer.

5 0

3 years ago

At a point on the free surface of a stressed body, the normal stresses are 20 ksi (T) on a vertical plane and 30 ksi (C) on a ho

victus00 [196]

Answer:

The principal stresses are σp1 = 27 ksi, σp2 = -37 ksi and the shear stress is zero

Explanation:

The expression for the maximum shear stress is given:

$\tau _{M} =\sqrt{(\frac{\sigma _{x}^{2}-\sigma _{y}^{2} }{2})^{2}+\tau _{xy}^{2} }$

Where

σx = stress in vertical plane = 20 ksi

σy = stress in horizontal plane = -30 ksi

τM = 32 ksi

Replacing:

$32=\sqrt{(\frac{20-(-30)}{2} )^{2} +\tau _{xy}^{2} }$

Solving for τxy:

τxy = ±19.98 ksi

The principal stress is:

$\sigma _{x}+\sigma _{y} =\sigma _{p1}+\sigma _{p2}$

Where

σp1 = 20 ksi

σp2 = -30 ksi

$\sigma _{p1} +\sigma _{p2}=-10 ksi$ (equation 1)

$\tau _{M} =\frac{\sigma _{p1}-\sigma _{p2}}{2} \\\sigma _{p1}-\sigma _{p2}=2\tau _{M}\\\sigma _{p1}-\sigma _{p2}=32*2=64ksi$ equation 2

Solving both equations:

σp1 = 27 ksi

σp2 = -37 ksi

The shear stress on the vertical plane is zero

4 0

4 years ago

Using the Distortion-Energy failure theory: 8. (5 pts) Calculate the hydrostatic and distortional components of the stress 9. (1

WITCHER [35]

Answer:

Detailed solution is given below:

7 0

4 years ago

A gas turbine operates with a regenerator and two stages of reheating and intercooling. Air enters this engine at 14 psia and 60

Rzqust [24]

Answer:

flow(m) = 7.941 lbm/s

Q_in = 90.5184 Btu/lbm

Q_out = 56.01856 Btu/lbm

Explanation:

Given:

- T_1 = 60 F = 520 R

- T_6 = 940 = 1400 R

- Heat ratio for air k = 1.4

- Compression ratio r = 3

- W_net,out = 1000 hp

Find:

mass flow rate of the air

rates of heat addition and rejection

Solution:

- Using ideal gas relation compute T_2, T_4, T_10:

T_2 = T_1 * r^(k-1/k)

T_2 = T_4 = T_10 = 520*3^(.4/1.4) = 711.744 R

- Using ideal gas relation compute T_7, T_5, T_9:

T_7 = T_6 * r^(-k-1/k)

T_7 = T_5 = T_9 = 1400*3^(-.4/1.4) = 1022.84 R

- The mass flow rate is obtained by:

flow(m) = W_net,out / 2*c_p*(1400-1022.84-711.744+520)

flow(m) = 1000*.7068 / 2*0.24*(1400-1022.84-711.744+520)

flow(m) = 7.941 lbm/s

- The heat input is as follows:

Q_in = c_p*(T_6 - T_5)

Q_in = 0.24*(1400 - 1022.84)

Q_in = 90.5184 Btu/lbm

- The heat output is as follows:

Q_out = c_p*(T_10 - T_1)

Q_out = 0.24*(711.744 - 520)

Q_out = 56.01856 Btu/lbm

5 0

3 years ago

4) How much concrete was required to make the Hoover Dam? Where did this concrete come from?
