Calculate the coordinates and develop the CNC program for the following milling part. The spindle speed is 2000 rpm and the feed
rate is 15 ipm. At the beginning, the machine is at the reference tool number 10. Tool number 4 is used for this process. The tool start position is at X0, Y0, Z1.
1 answer:
Answer:
Explanation:

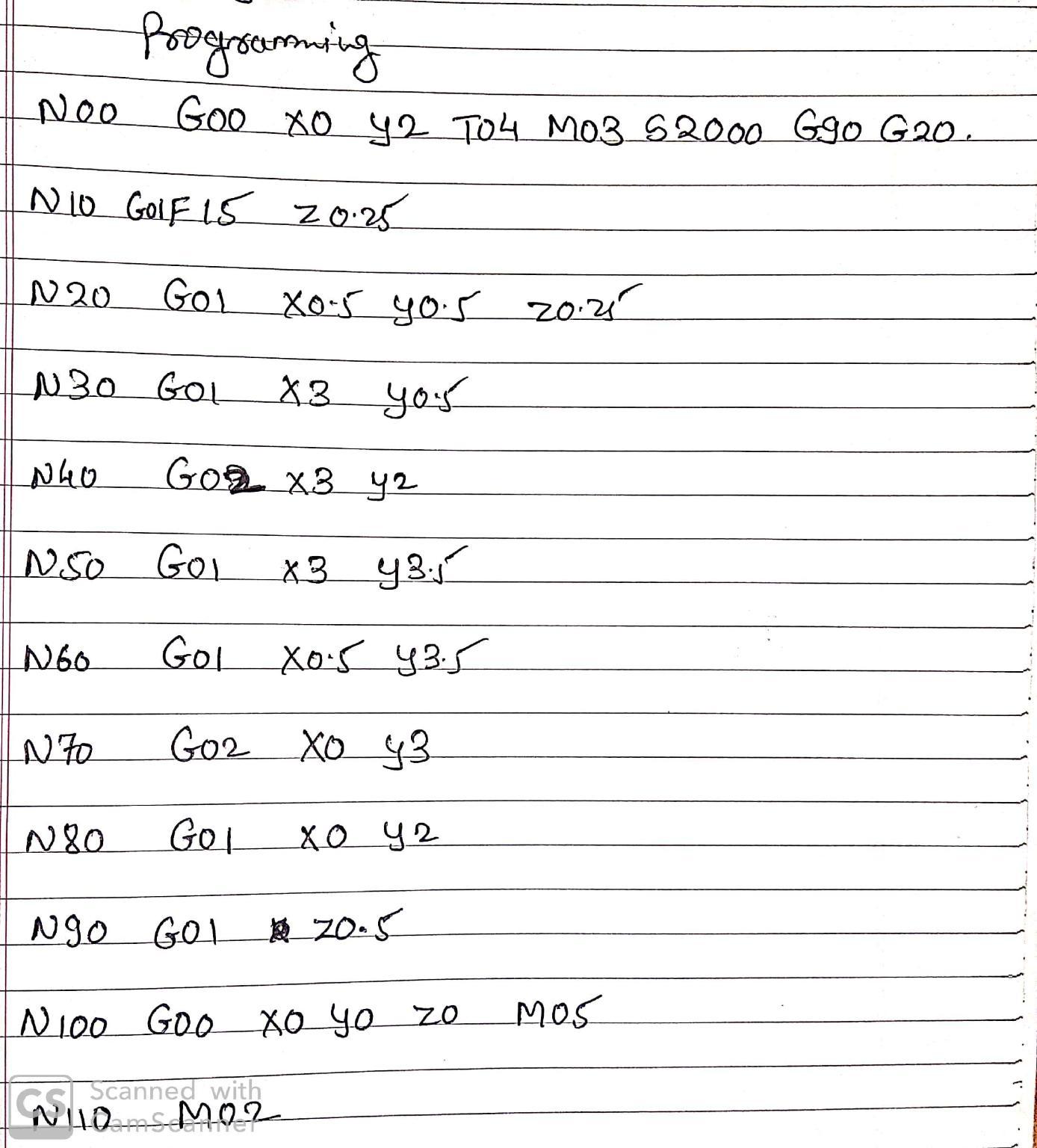

Please go through the attached file first before you you come back to the explanation page.
Description of code used:
G00: Rapid positioning
G01: Linear interpolation
G02: Circular interpolation (Clockwise)
G20: Program in inch
G90: Absolute programing
M02: Program end
M03: Spindle start
M05: Spindle stop
T04: Tool no. 04
F: Feed rate
S: Spindle speed
