r-ruslan [8.4K]
4 years ago
14

Two crewmen pull a raft through a lock, as shown in the figure(Figure 1). One crewman pulls with a force of 130 N at an angle of

34 ∘ relative to the forward direction of the raft. The second crewman, on the opposite side of the lock, pulls at an angle of 45 ∘ . With what force should the second crewman pull so that the net force of the two crewmen is in the forward direction?

Physics
1 answer:
sesenic [268]4 years ago
5 0

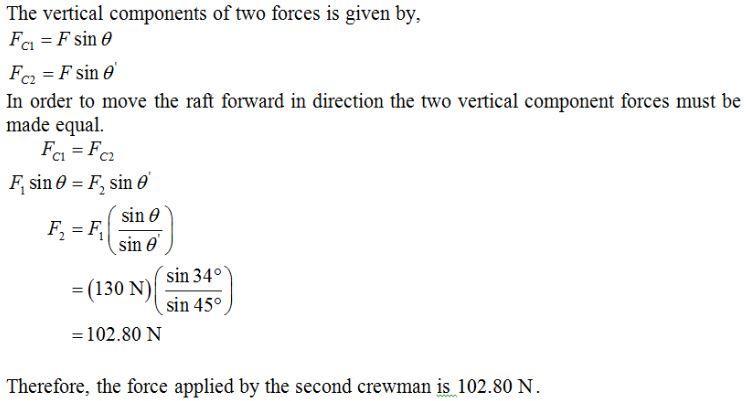

The answer & explanation for this question is given in the attachment below.

You might be interested in
A research group at Dartmouth College has developed a Head Impact Telemetry (HIT) System that can be used to collect data about
Olin [163]

Answer:

6.05 cm

Explanation:

The given equation is

2 aₓ(x-x₀)=( Vₓ²-V₀ₓ²)

The initial head velocity V₀ₓ =11 m/s

The final head velocity  Vₓ is 0

The accelerationis given by =1000 m/s²

the stopping distance = x-x₀=?

So we can wind the stopping distance by following formula

2 (-1000)(x-x₀)=[0^{2} -11^{2}]

x-x₀=6.05*10^{-2} m

       =6.05 cm

3 0
3 years ago
Atoms are happy (they will not readily react with other elements) when they have a full outside ring of
Len [333]

Answer: TRUE

Explanation:

Atoms are happy when they will not react with other elements while having a full outside ring of electrons because this makes them to be noble.

A stable atom possesses full outside ring of electrons while unstable one does not. So, they are happy also because of stability.

7 0
3 years ago
Scientists have discovered convection currents inside Earth. Explain how these convection currents move and what layer(s) they o
fgiga [73]

Answer:

I don't know what to do

Explanation:

So

7 0
4 years ago
Read 2 more answers
What is the difference between the B-field and the H-field?
Simora [160]
The H field is in units of amps/meter.  It is sometimes called the auxiliary field. It describes the strength (or intensity) of a magnetic field. The B field is the magnetic flux density.  It tells us how dense the field is.  If you think about a magnetic field as a collection of magnetic field lines, the B field tells us how closely they are spaced together. These lines (flux linkages) are measured in a unit called a Weber (Wb).  This is the analog to the electric charge, the Coulomb.  Just like electric flux density (the D field, given by D=εE) is Coulombs/m²,  The B field is given by Wb/m², or Tesla.  The B field is defined to be μH, in a similar way the D field is defined.  Thus B is material dependent.  If you expose a piece of iron (large μ) to an H field, the magnetic moments (atoms) inside will align in the field and amplify it.  This is why we use iron cores in electromagnets and transformers.
So if you need to measure how much flux goes through a loop, you need the flux density times the area of the loop Φ=BA.  The units work out like
Φ=[Wb/m²][m²]=[Wb], which is really just the amount of flux.  The H field alone can't tell you this because without μ, we don't know the "number of field" lines that were caused in the material (even in vacuum) by that H field.  And the flux cares about the number of lines, not the field intensity.
I'm way into magnetic fields, my PhD research is in this area so I could go on forever.   I have included a picture that also shows M, the magnetization of a material along with H and B.  M is like the polarization vector, P, of dielectric materials. If you need more info let me know but I'll leave you alone for now!

3 0
3 years ago
If 41.5 mol of an ideal gas occupies 86.5 L at 27.00 °C, what is the pressure of the gas?
Dmitry [639]
PV=nRT
(P)(86.5)=(41.5)(.08206)(300.15)
(P)(86.5)=(1022.157824)
P=11.81685345 atm
7 0
4 years ago
Read 2 more answers
