3 years ago

Dot structure for HNF2

1 answer:

8 0

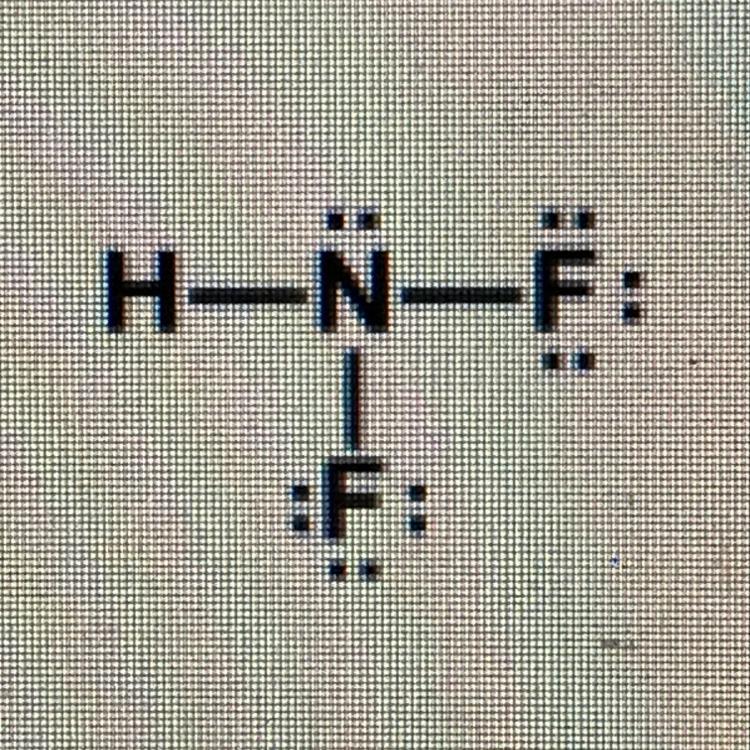

The total number of valence electrons is 20.(1 from hydrogen, 5 from nitrogen, and 7 from each fluorine so 14 for both) connect all the atoms with a single bond( each bond counts as 2) so far there is 6 electrons so you need to fill in the rest of the 14 and you get the result in the picture.

You might be interested in

What is the buffer component ratio, (bro-)/(hbro) of a bromate buffer that has a ph of 8.08. ka of hbro is 2.3 x 10-9?

Alla [95]

pKa= -log(ka)

= -log(2.3*10^-9)

= 8.64

Now pH can be calculated using equation:

pH=pka+log(BrO-)/(HBrO)

8.08 =8.64+log(BrO-)/(HBrO)

log(BrO-)/(HBrO)=8.08-8.64

= -0.56

(BrO-)/(HBrO)= 10^-0.56

=0.275

3 0

3 years ago

a 20ml sample of hcl was titrated with the 0.0220 M Naoh. to reach the endpoint required 23.72 mL of the NaOh. Calculate the mol

Y_Kistochka [10]

Answer:

Molarity of HCl=0.026092M

Explanation:

The equation for the reaction is;

HCl + NaOH ⇒ NaCl + H2O

Using the formular, $\frac{C_{A}V_{A}}{C_{B}V_{B} }=\frac{nA}{nB}$ ..........equ1

where $C_{A}$ is the concentration of Acid,

$V_{A}$ is volume of acid

$C_{B}$ is concentration of the base

$V_{B}$ is volume of the base

nA is the number of moles of Acid

nB is number of moles of base

nA = 1, nB=1 , $V_{A}=20ml$ , $C_{B}=0.022M$ , $V_{B}=23.72mL$

we will input these values into equation1 to solve for $C_{A}$

$\frac{C_{A}*20}{0.022*23.72}=\frac{1}{1}$

$C_{A}*20=0.022*23.72$

$C_{A}=0.026092M$

7 0

3 years ago

Hydrochloric acid reacts with calcium to form hydrogen and calcium chloride. If 100 grams of hydrochloric acid reacts with 100 g

LenaWriter [7]

Answer is hydrochloric acid

Hope this helps!

5 0

3 years ago

Read 2 more answers

Could a mixture be made up of only elements and no compounds. explain

lbvjy [14]

Yes, because a mixture is 2 or more substances that are mixed together (not chemically). A mixture could be two different elements physically combined in a set ratio.

8 0

3 years ago

Which of the following is not an example of a subatomic particle? electron photon neutron proton

asambeis [7]

I'm pretty sure all 4 are subatomic particles but if i had to guess i'd be Photons

5 0

3 years ago

Read 2 more answers
