Draw a cooling graph of water as it passes from 20°C to –20°C. The y-axis should be temperature in degrees Celsius and the x-axi
s should be time
1 answer:
Answer:

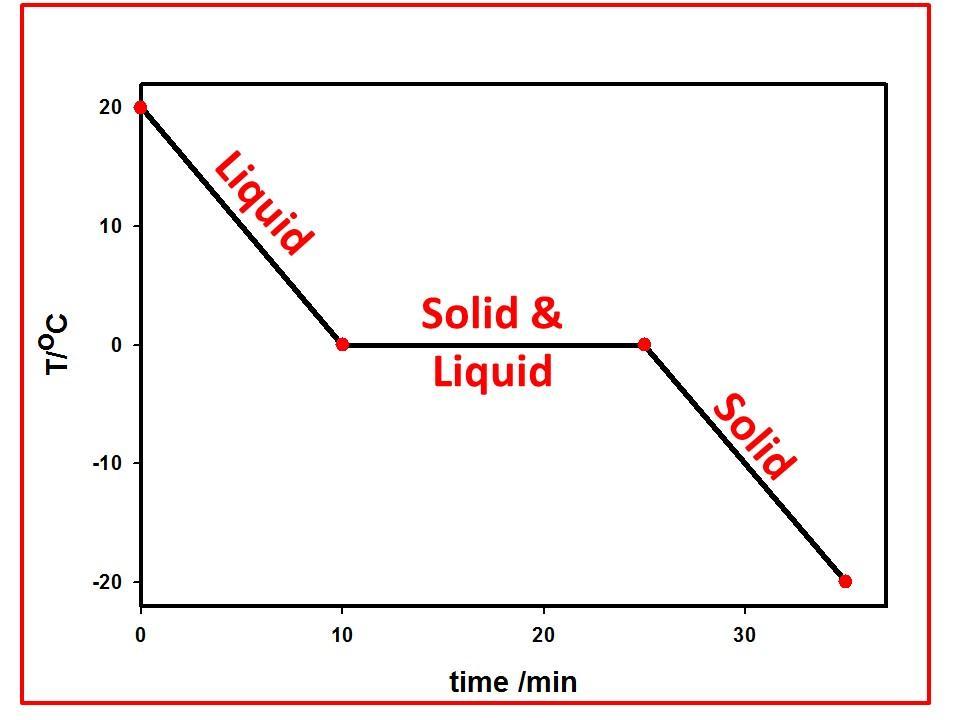

Kindly, see the attached image.
Explanation:
As clear in the attached image:
- It represents the cooling curve of water.
- It starts from 20°C, the water exists in the liquid phase.
- With time the temperature is decreased, reaching 0°C, the two phases (liquid and solid) are co-exist.
- Then, with further cooling and under 0°C reaching -20°C, all the water are exist in the solid phase (Ice).
<em>Kindly, see the attached image that clarify the cooling graph of water as it passes from 20°C to –20°C. </em>
<em />
