An air conditioner is designed to bring 10,000 ft3/min of outside air (90°F, 29.8 inches Hg, 88% relative humidity) to 40°F, the

reby condensing a portion of the water vapor, and then to reheat the air before releasing it into a room at 65°F. Calculate the rate of condensation (gallons H2O/min) and the volumetric flow rate of the air delivered to the room. (Suggestion: On the flowchart, treat the cooling–condensation and the reheating as separate process steps.)

1 answer:

jarptica [38.1K]3 years ago

3 0

Answer:

rate of condensation= 1.81 gal/min

volumetric flow rate= 9223 ft³/min

Explanation:

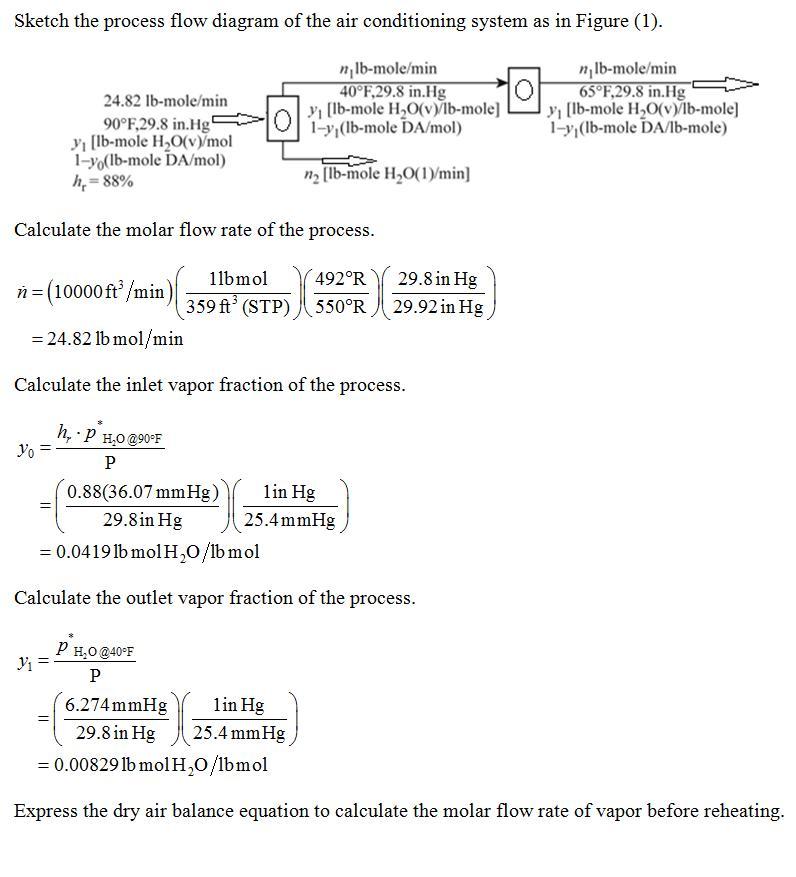

See attached pictures.

You might be interested in

Coils of various dimensions designed to introduce specified amounts of inductance into a circuit are called (a) semiconductors (

Delicious77 [7]

Answer: d) Inductors

Explanation: Inductors are the electric component commonly known by the name of coils as well. The work done by inductors is when the electric current flows through the coils of the wire then there is production of the magnetic field. They are the component that have the inductance in particular amount according to the circuit.So, coils of various dimensions are designed to introduce specified amount of inductance into a circuit are called inductors.

4 0

3 years ago

What the different methods to turn on thyrister and how can a thyrister turned off

myrzilka [38]

Answer:

forward voltage triggering

temperature triggering

dv/dt triggering

light triggering

gate triggering

Then turning off;

Turn off is accomplished by a "negative voltage" pulse between the gate and cathode terminals

Explanation:

hope it helps

8 0

3 years ago

Please help<br> describe the impact that a toy robot has had or could have on its intended audience

GuDViN [60]

Depending on the age the toy is made for it could teach younger children things such as letters and numbers and for a older kid it could teach them how different things are put in the robot to help it work

3 0

3 years ago

Read 2 more answers

(I really need help ASAP please!! this is for science her is the problem)

grandymaker [24]

Answer:

Explanation:

c

5 0

3 years ago

Read 2 more answers

A solid cylinder is concentric with a straight pipe. The cylinder is 0.5 m long and has an outside diameter of 8 cm. The pipe ha

poizon [28]

Answer :

The force needed to move the cylinder is 25.6 N

<h2>Further explanation </h2>

Given that,

Length of the cylinder, l = 0.5 m

Outer diameter of the cylinder, d = 8 cm = 0.08 m

Outer radius of the cylinder, $r=0.04\ m$

Inside diameter of the pipe, d = 8.5 cm = 0.085 m

Inside radius of the pipe, $r=0.0425\ m$

Specific gravity of the oil, $\rho=0.92$

Density of oil, $d=\rho\times \rho_w$

Kinematic viscosity of the oil, $v=5.57\times 10^{-4}\ m^2/s$

Velocity of the cylinder, u = 1 m/s

We need to find the force needed to move the cylinder. Let the force is F.

Specific gravity is defined as the ratio of the density of the substance to the density of water.

Kinematic viscosity is the acquired resistance of a fluid when there is no external force is acting except gravity. It is denoted by v.

Absolute viscosity is given by :

$v=\dfrac{\mu}{d}$

Where, $d$ = density of oil

And $d=\rho\times \rho_w$ (density of oil = specific gravity × density of water )

$d=0.92\times 10^3\ kg/m^3$

So,

$\mu=v\times d$ ..............(1)

$\mu=5.57\times 10^{-4}\ m^2/s\times 0.92\times 10^3\ kg/m^3$

$\mu=0.512\ Pa-s$

The separation between the cylinder and pipe is given by :

$dy=\dfrac{d_p-d_c}{2}=\dfrac{8.5-8}{2}=0.25\ cm=0.0025\ m$

$d_p\ and\ d_c$ are diameter of pipe and cylinder respectively.

The mathematical expression for the Newton's law of viscosity can be written as:

$\tau\propto\dfrac{du}{dy}$

$\tau=\mu\times \dfrac{du}{dy}$ ..........(2)

Where

$\tau$ = Shear stress, $\tau=\dfrac{F}{A}$ ............(3)

$\mu$ = viscosity

$\dfrac{du}{dy}$ = rate of shear deformation

On rearranging equation (1), (2) and (3) we get :

$\dfrac{F}{A}=v\times \rho\times \dfrac{du}{dy}$ ...............(4)

A is the area of the cylinder, $A=2\pi rl$

Equation (4) becomes :

$F=v\times \rho\times \dfrac{du}{dy}\times 2\pi rl$ ..............(5)

$A=\pi d\times l$

$A=\pi \times 0.08\ m\times 0.5\ m$

$A=0.125\ m^2$

Now, equation (5) becomes :

$F=(v\times \rho)\times \dfrac{du}{dy}\times 2\pi rl$

$F=(0.512\ Pa-s)\times (\dfrac{1}{0.0025\ m})\times \times 0.125\ m^2$

F = 25.6 N

<h2>Learn more </h2>

Kinematic viscosity : brainly.com/question/12947932

<h2>Keyword : </h2>

Specific gravity, Kinematic viscosity, Area of cylinder, fluid mass density.

7 0

3 years ago
