A 50 kg stcel ball is hanging from two cables that make 120 degrees with each

Physics

1 answer:

FrozenT [24]4 years ago

3 0

Answer:

T1 = 490.5 [N], T2 = 490.5[N]

Explanation:

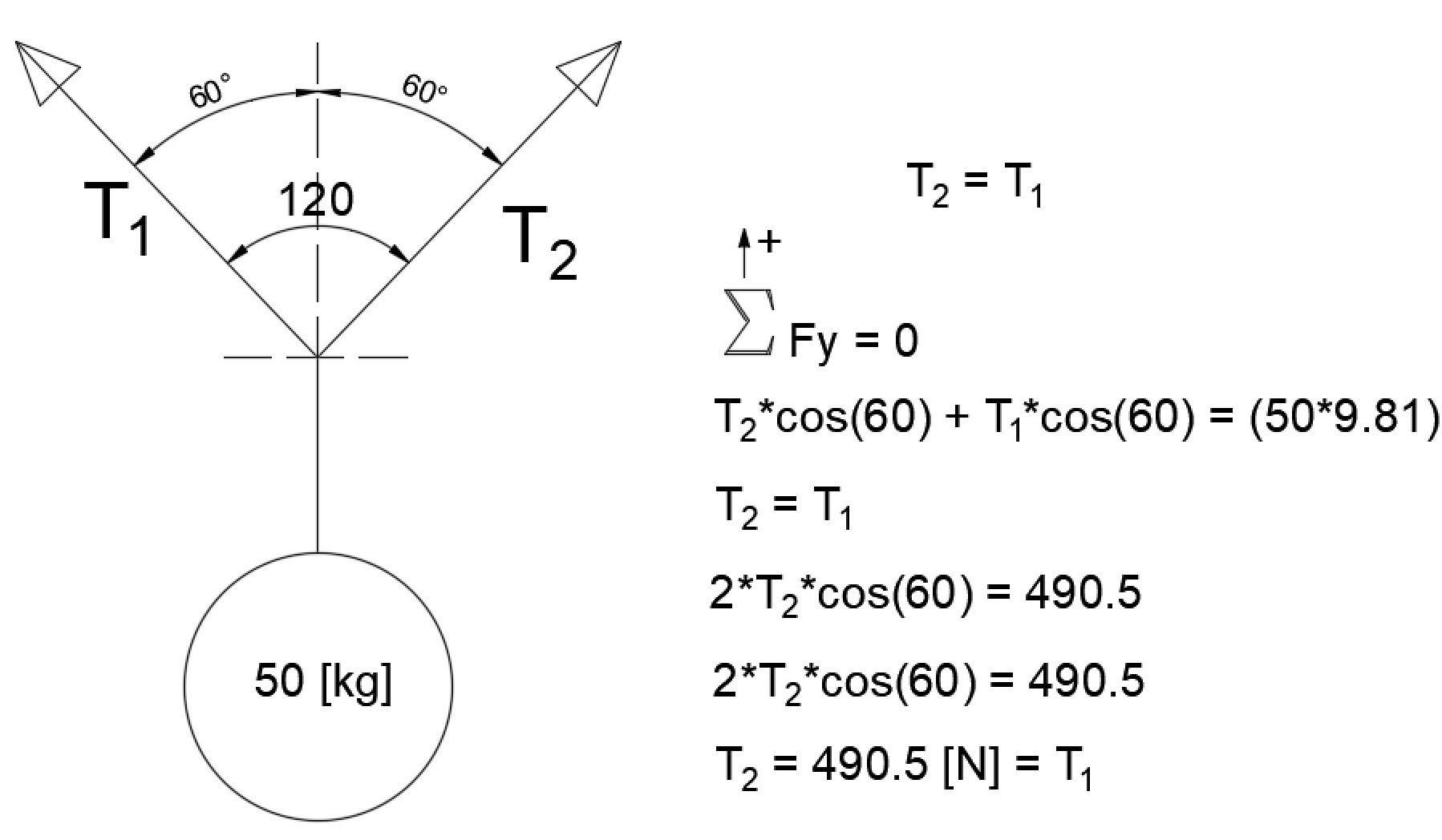

First, we must draw a free body diagram of the steel ball hanging and the two wires holding it as well as the angle forming the wires between them.

The free-body diagram can be seen in the attached image.

As the cables are symmetrical with respect to the vertical axis, the force in cables 1 and 2 is equal, so when performing a force sum equal to zero on the Y-axis, we can find the force value of any cable.

The solution of the equations can be seen in the attached image

You might be interested in

A piece of warm concrete is placed in a cold-water tank, and energy flows between the concrete and the water. Which way does the

sammy [17]

Answer:

Heat flows from hot to cold objects. When a hot and a cold body are in thermal contact, they exchange heat energy until they reach thermal equilibrium, with the hot body cooling down and the cold body warming up. This is a natural phenomenon we experience all the time.

Explanation:

3 0

2 years ago

The temperature of the cosmic background radiation is measured to be 2.7 k. What is the wavelength of the peak in the spectral d

KATRIN_1 [288]

Answer:

$1.07\cdot 10^{-3} m$

Explanation:

The peak wavelength of the spectral distribution can be found by using Wien's displacement law:

$\lambda=\frac{b}{T}$

where

$b=2.898\cdot 10^{-3} m\cdot K$ is Wien's displacement constant

T is the absolute temperature

For the cosmic background radiation, the temperature is

T = 2.7 K

So, the corresponding peak wavelength is

$\lambda=\frac{2.898\cdot 10^{-3} m\cdot K}{2.7 K}=1.07\cdot 10^{-3} m$

7 0

3 years ago

Are oil and water optically different

katovenus [111]

Answer:

Yes

Explanation:

Trust me

6 0

3 years ago

Read 2 more answers

What information does a free-body diagram show?

Anna11 [10]

Free-body diagrams are diagrams used to show the relative magnitude and direction of all forces acting upon an object in a given situation. A free-body diagram is a special example of the vector diagrams

7 0

4 years ago

Read 2 more answers

A hockey player uses a hockey stick to hit a puck such that the stick provides an applied force on the puck The puck travels for

Norma-Jean [14]

Answer:

Explanation:

Let's analyze the situation presented in order to know which answer is correct.

When the stick collides with the puck, it exerts a force for a certain time and discants. / After this time the horizontal force decreases to zero and the disk continues to move by the action of the initial velocity on the x axis and the acceleration of gravity on the y axis.

Therefore, after the collision, the only force that acts on the disk is the gravitational attractive force (WEIGHT), directed on the axis and in a negative direction.

The correct answer is:

C) Since there is no frictional force exerted on the puck, a normal force is not exerted on the puck, but the gravitational force is exerted on the puck

4 0

3 years ago
